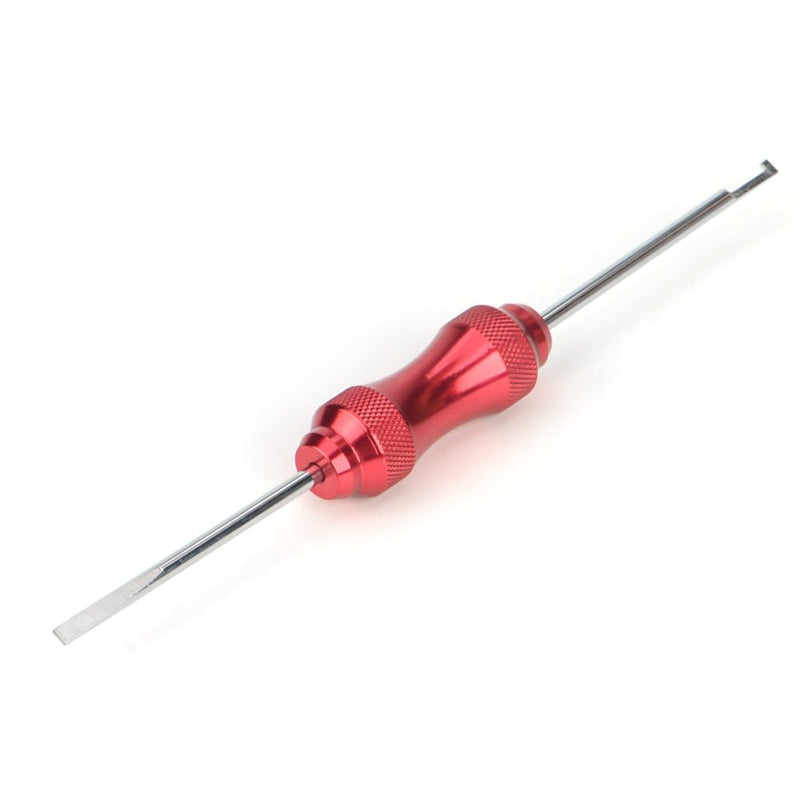

ET-01 Deutsch Insertion & Extraction Tool, Wedgelock Removal Tool for DT, DTM, DTP-Series
ET01 — review the application, configuration and working range below before ordering.
About this item
- Applications: The ET-01 removal tool is designed to be used to remove individual Deutsch size 16 solid and stamped and formed pins and socket contacts from front-release connectors (such as DT, DTM, DTP, DTV, DRB, DRCP, and STRIKE* connectors).

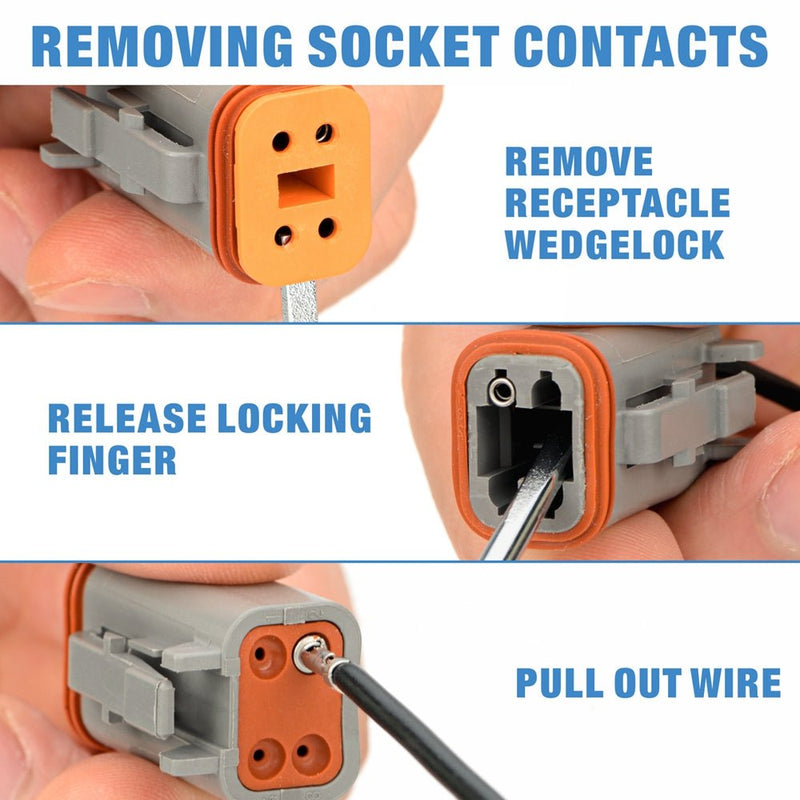

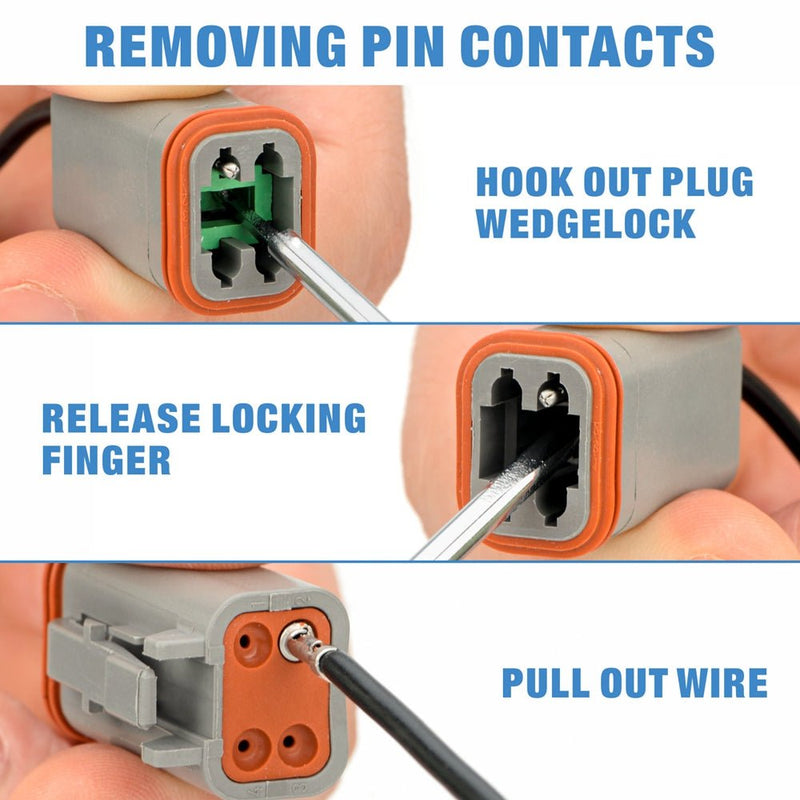

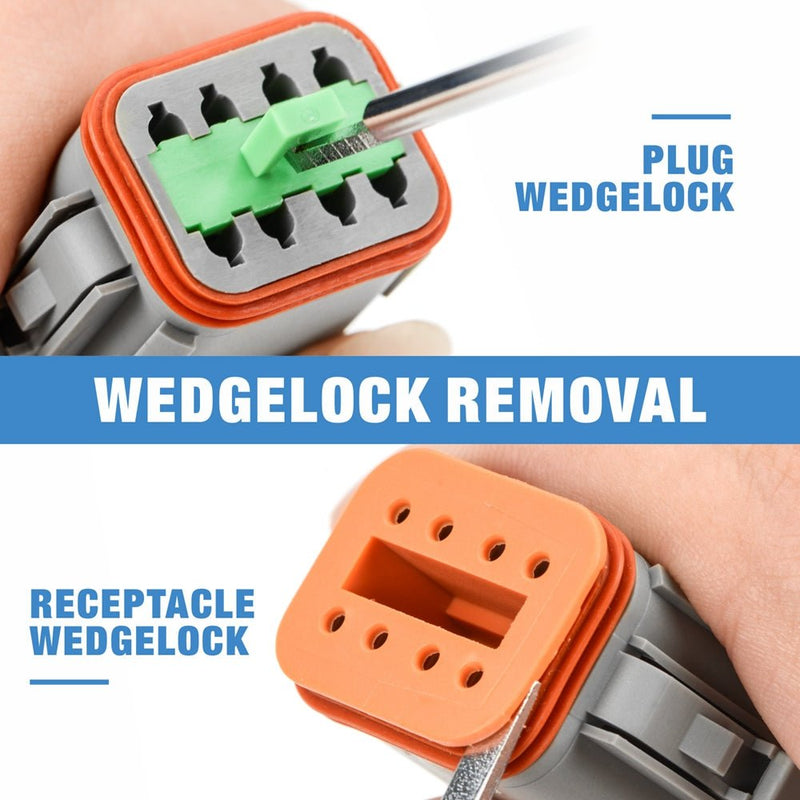

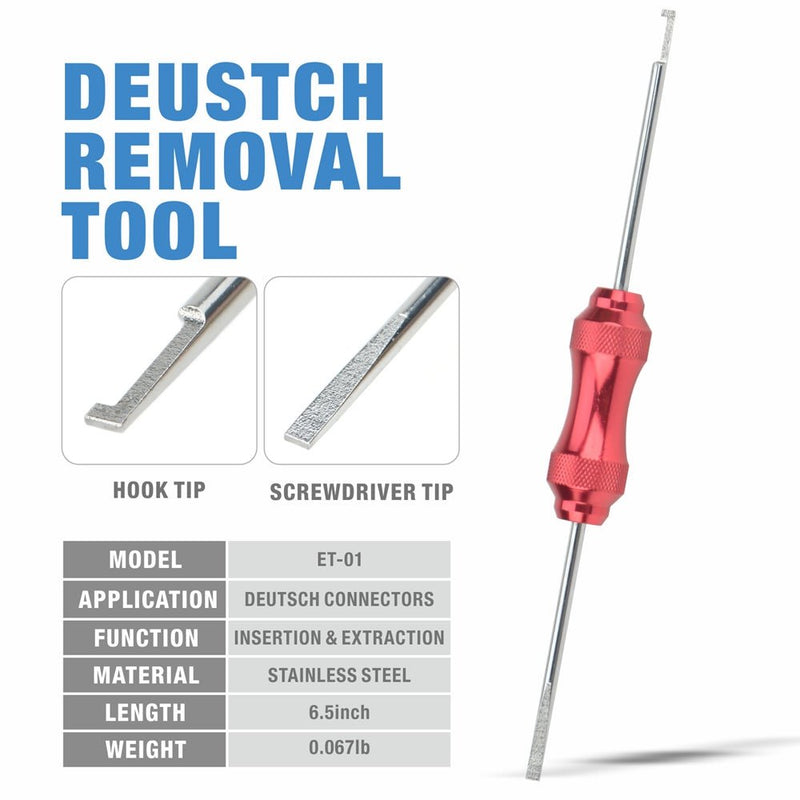

- Configuration: Multi-use tool with a small hook on one end to remove the wedgelock, and a small screwdriver on the other end to push back the locking fingers and release the contact.
- Material: Hardened & rust-proof stainless steel body, super handy terminal removal tool for replace or repair worn electrical connections , to let you separate the wires from their terminals without causing damage to either.

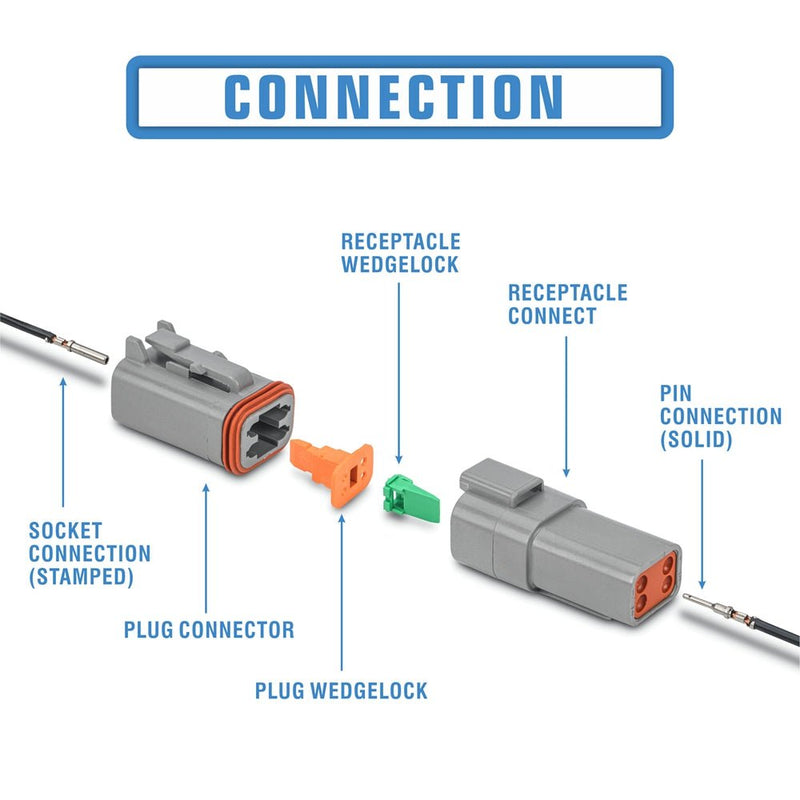

- Deutsch’s DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, rectangular, thermoplastic housing and integrated latch for mating. The DT Series kit features various plugs and receptacles for 2, 3, 4, 6, 8 and 12 cavity arrangements with contact size 16 (13 amps), as well as wedgelocks to assure contact alignment and retention.
- An alternative for the Deutsch extraction-removal tool DT-RT1.
ET01 — specifications
Connector and contact selection
Match the connector family, contact construction and conductor range. Solid contacts and stamped-and-formed contacts may require different crimp geometries even within a connector family.
Frequently asked questions
Will a matching wire gauge guarantee compatibility?
No. Check contact size, barrel construction, insulation support and the crimp profile as well as wire gauge. Confirm the exact terminal part number when uncertain.
How can I confirm the right model before ordering?
Email sales@iwiss.com with the model, application, component size and a photo or part number. For delivery and returns, see our shipping information and returns policy.
