iCrimp IWC-1424A Crimping Tools for Deutsch DT Series Stamped & Formed Contact, Open Barrel Terminal Crimping Tool, AWG14 to AWG24 Wire Crimper

Original price $15.99
Original price $15.99 - Original price $15.99
Original price $15.99
Current price $11.99
$11.99 - $11.99
Current price $11.99

About this item

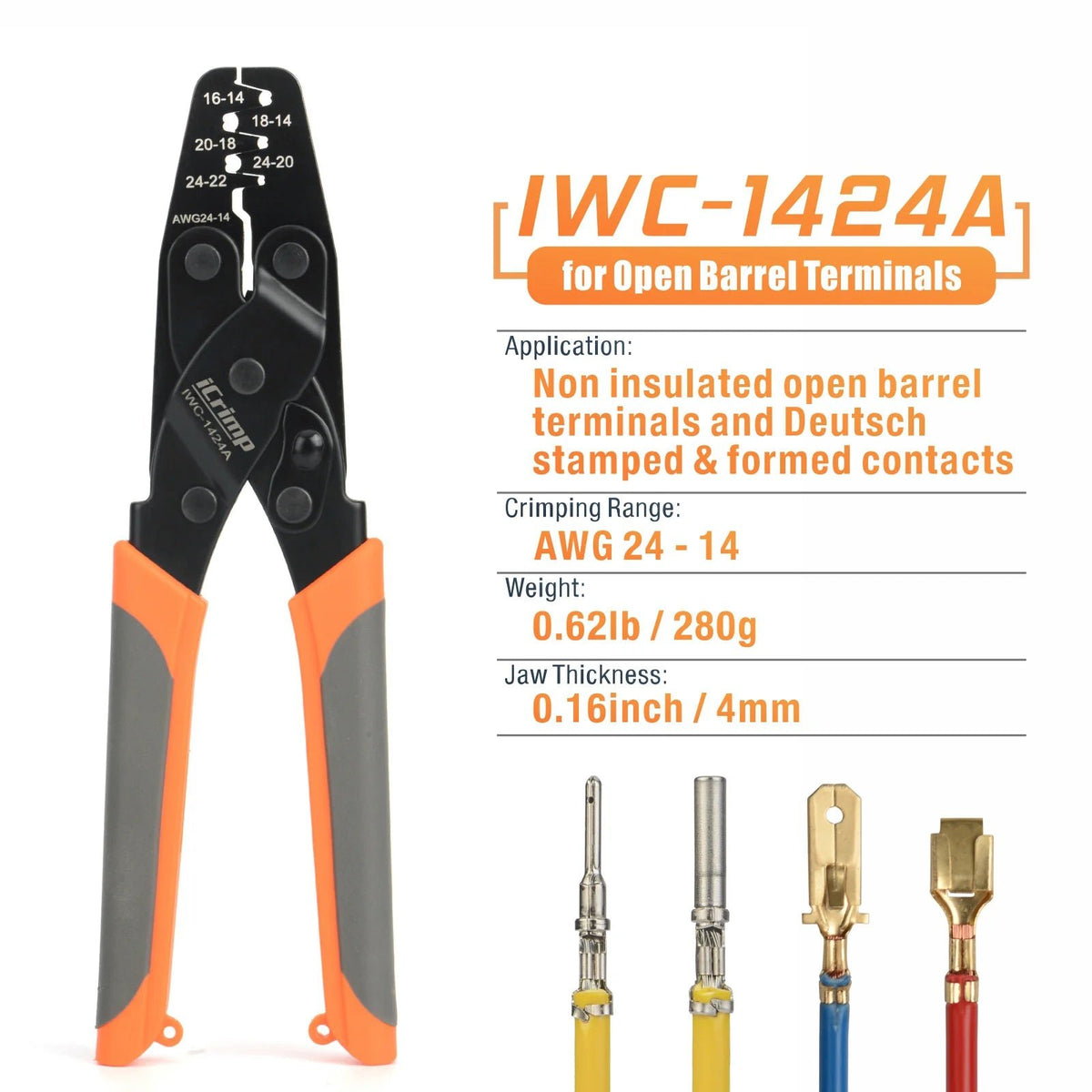

  • Open Barrel Terminal Crimper: IWC-1424A open barrel crimp tool is designed to crimp non-insulated, open barrel terminals, also known as OEM terminals. It has five crimp stations that roll the open barrel terminal tabs over the wire and insulation, crimping them to the terminal.
  • Deutsch Stamped Contact Size 16 Crimp Tool: IWC-1424A is also designed for crimping Deutsch stamped pins and sockets, Size 16, AWG14 to AWG 18. Series: DT,HD30,HDP20,DRC,HD10,DRB,DTV.AEC,STRIKE,Jiffy Splice.

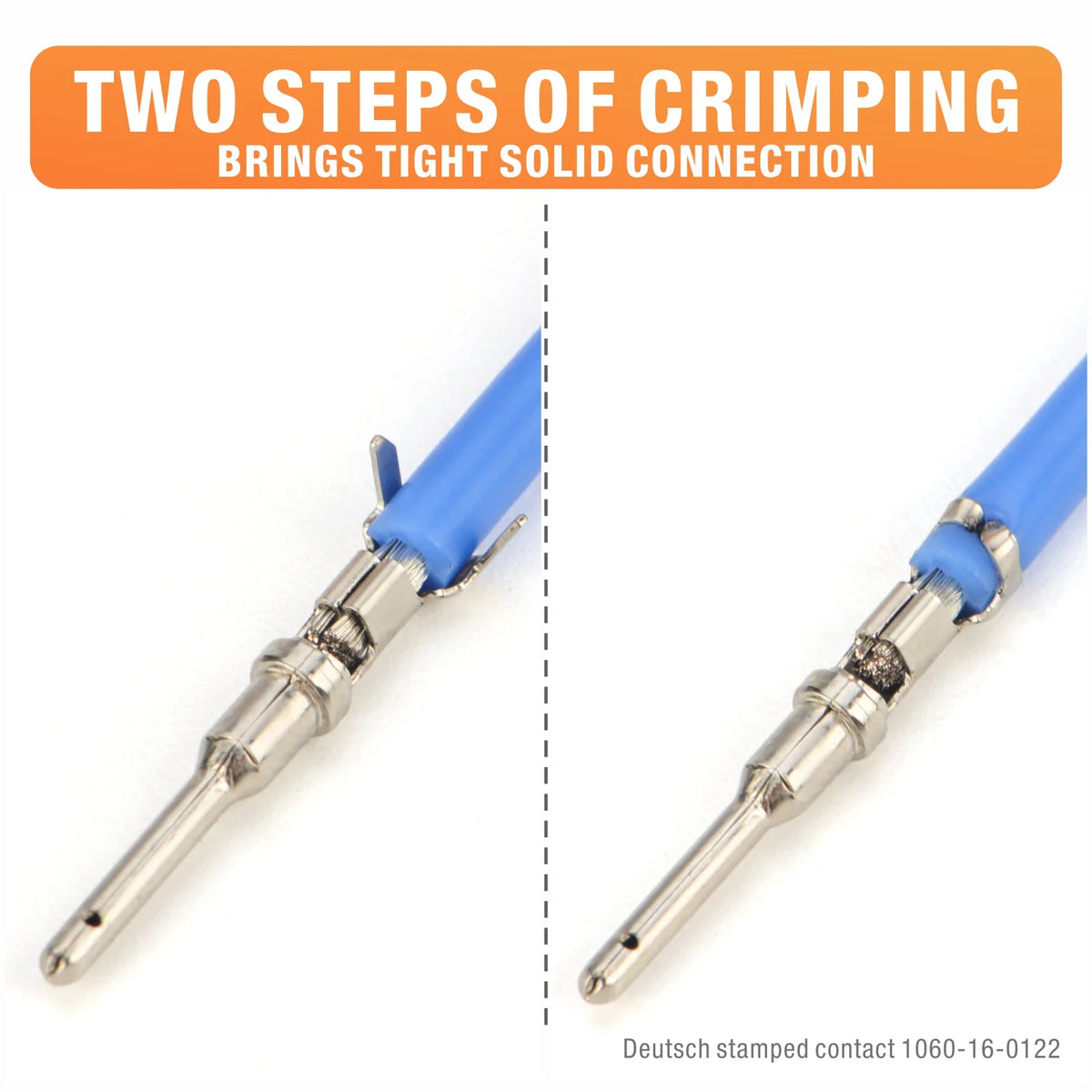

  • Two Step Crimping: Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination.

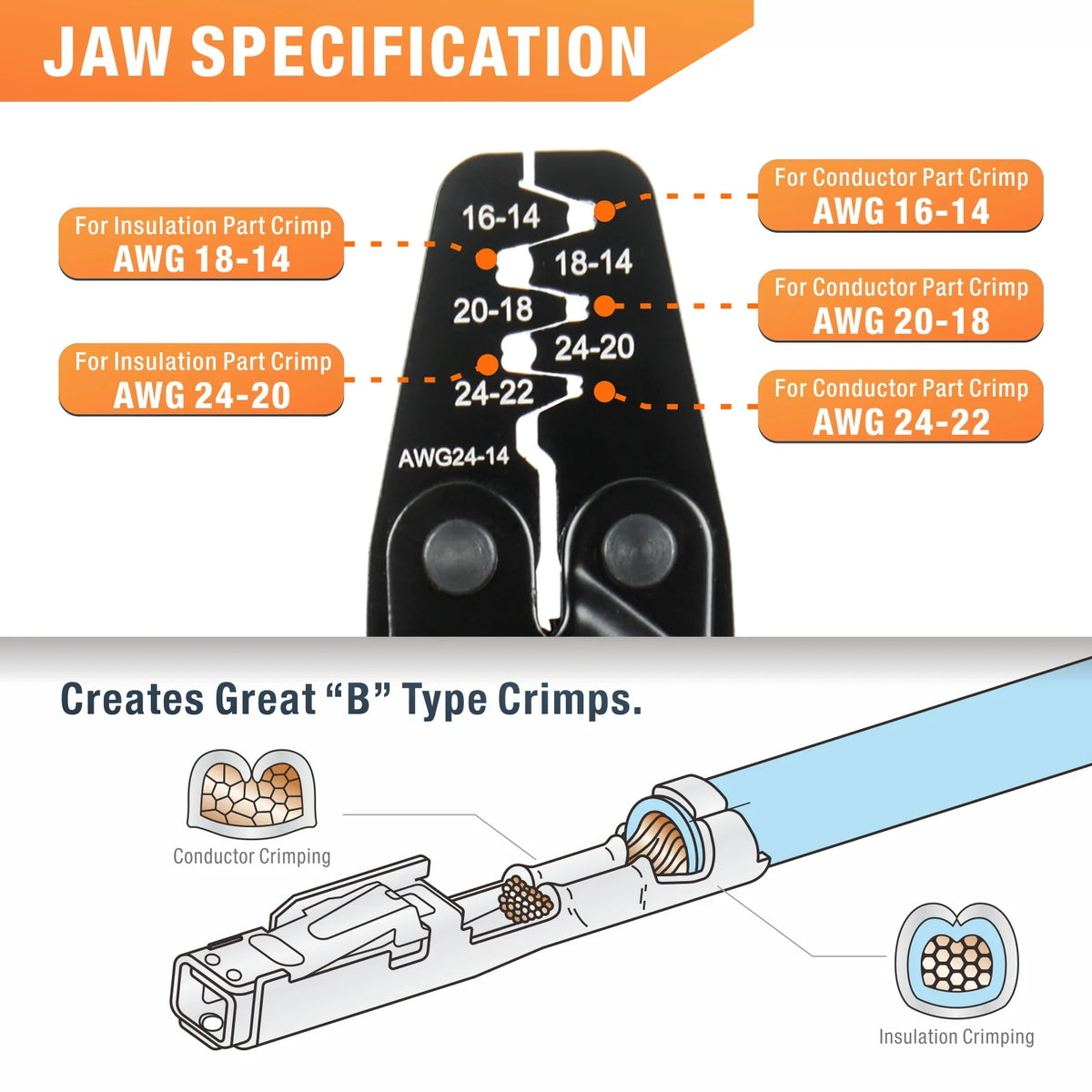

  • B Profile Crimps: Insulation crimps are "B" type and are produced in two cavities.: 18-14 AWG and 24-20 AWG. Conductor crimps are "B" type and are produced in three cavities: 16-14 AWG, 20-18 AWG and 24-22 AWG.
  • IWC-1424A universal “U” Barrel Crimp Tool is perfect for 24 to 14 gauge wire used with AMP, Deutsch, Delphi or any other stamped terminal. A must when servicing any motorcycle. Made from high quality carbon steel with black oxide finish for corrosion resistance and durability.

Open Barrel Connector & Deutsch DT Size 16 Stamped Contact Crimper

Using the proper crimp tool for your type of contact ensures the highest performance. Stamped & formed contacts are designed for crimp installation, requiring no solder. They are more cost effective than solid barrel but do not sacrifice reliability of electrical circuits.

IWC-1424A open barrel crimp tool is designed to crimp non-insulated, open barrel terminals, also known as OEM terminals. It has five crimp stations that roll the open barrel terminal tabs over the wire and insulation, crimping them to the terminal.

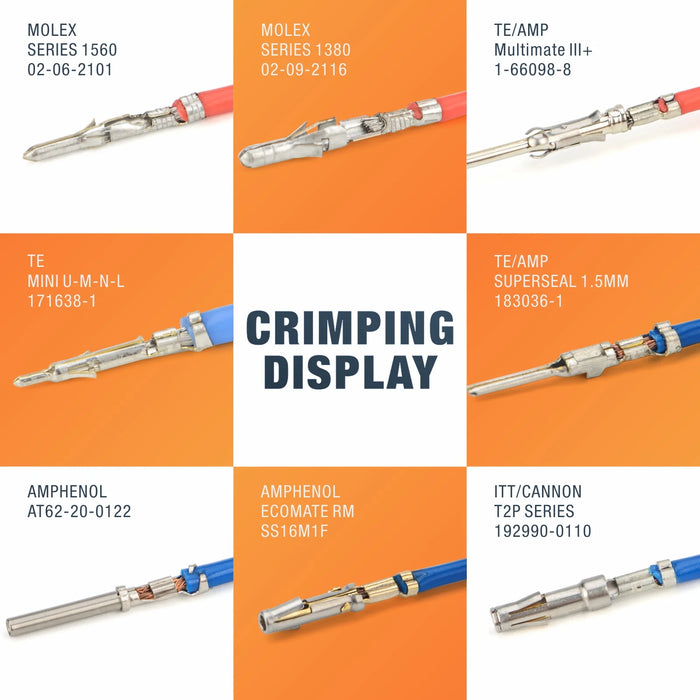

  • Crimps a wide variety of open barrel contacts in medium size wire ranges.
  • Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination.
  • Crimps 24-12 gauge OEM type (open barrel) automotive terminals

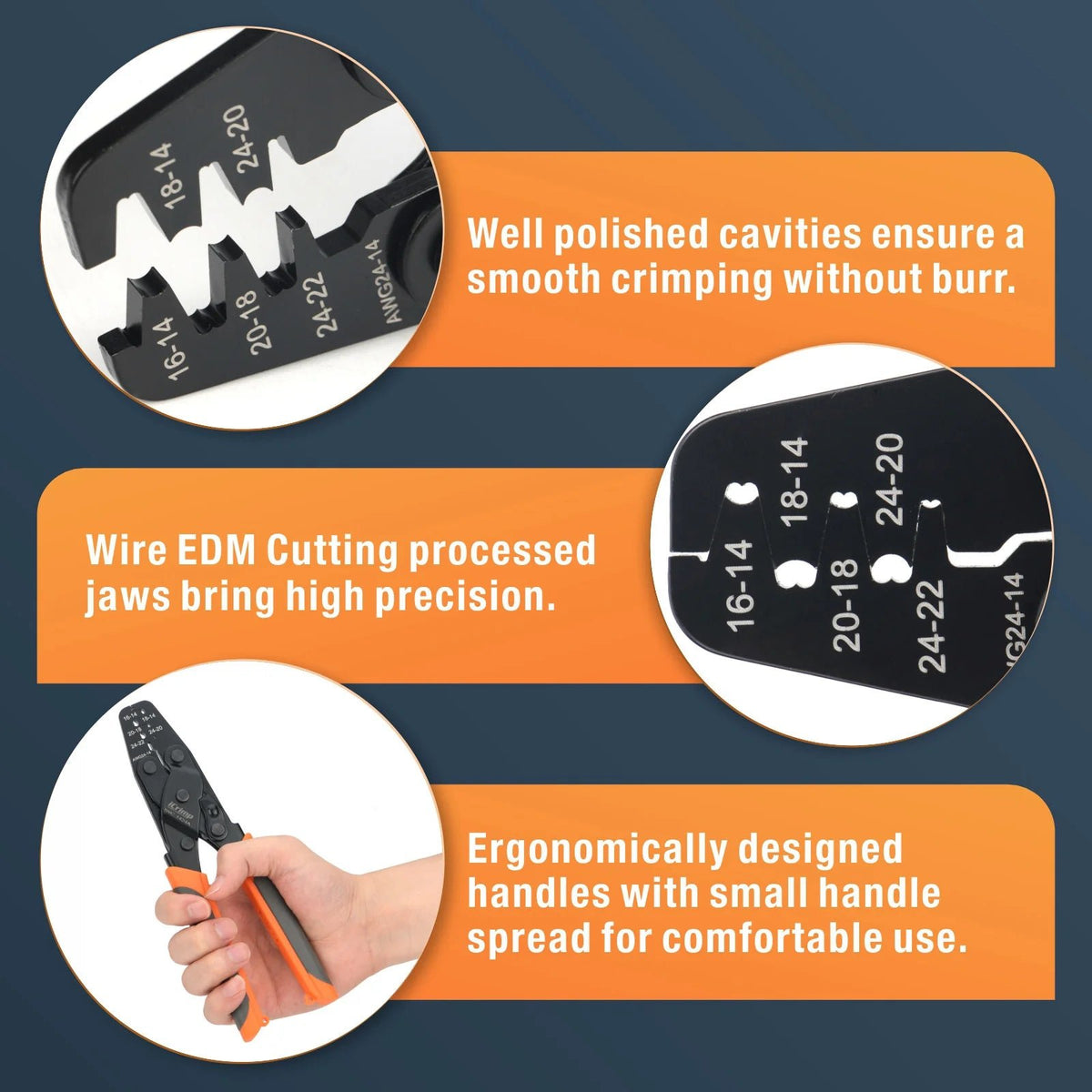

  • Five crimping stages
  • "F" crimping nests make rollover crimps on both stranding (electrical crimp) and insulation (strain relief)
