iCrimp IWC-1424AB Wire Crimping Tool for Weather Pack Terminals, Metri Pack Connectors, Open Barrel Terminals, Stamped Contacts

Original price $22.99
Original price $22.99 - Original price $22.99
Original price $22.99
Current price $20.99
$20.99 - $20.99
Current price $20.99

Features:

  • IWC-1424AB is a combination of IWS-1424A Open Barrel Crimper and IWS-1424B Weather Pack Crimper. It’s also upgraded with built-in wire stripper and wire cutter AWG20-10.
  • Weather Pack Crimper: Suits for Weather-Pack, Metri-Pack 150 Sealed, Metri-Pack 150 Unsealed, Metri-Pack 280 Sealed, Metri-Pack 280 Unsealed. IWC-1424AB crimper is designed to crimp the terminals and seals found in the Metri-Pack and Weather Pack series.
  • Open Barrel Crimper: IWC-1424AB also served as open barrel crimp tool crimps AWG 14-24 non-insulated, open barrel terminals, also known as OEM terminals from Molex, TE, Delphi, Deutsch. It’s also capable of crimping Deutsch stamped pins and sockets, Size 16, AWG14 to AWG 18.
  • Two Step Crimping: Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination. IWC-1424AB is a 7 cavity wire crimper for a variety of crimping range.
  • Applications: IWC-1424AB allows the automotive DIYer to install weather-tight connectors with tools that were previously only available to the professionals. Replace damaged factory-installed connectors or add accessories while maintaining full factory wire harness integrity. A must have tool for making OEM wires and harness.

Video Demonstration

How to crimp with wire crimping tool

Automotive Connector Crimping Tool

IWC-1424AB with Built-in Wire Stripper & Cutter

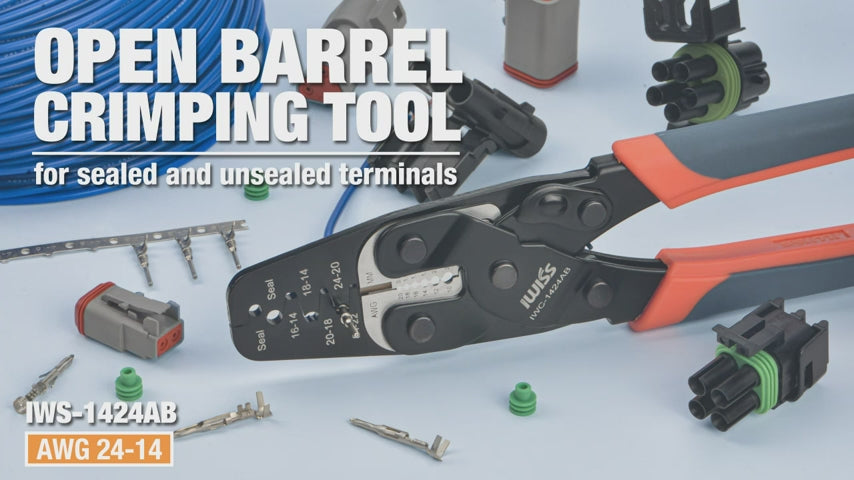

Open barrel terminal crimping tool with up to 7 cavities for automotive terminals. Sealed and unsealed, core crimps and insulation crimps are all covered. Value added built-in wire stripper. Typically makes connections of Deutsch DT connectors and Delphi Packard Weather Pack & Metri Pack connectors

Section
Drop element here

What Automotive Connectors Can IWC-1424AB Crimp?

Deustch DT Connector

Deustch DT Connector

Size 16 Stamped Contacts

Weather Pack Connector

Weather Pack Connector

Weather Pack & Metri Pack

AMP Econoseal Connectors

AMP Econoseal Connectors

AWG 14-24

AMPSEAL 16 Connector

AMPSEAL 16 Connector

Size 16 Stamped Contacts

Making Weather Pack Connection

Position

Position

Position stripped cord on conductor tab and seal on insulation tab

crimp-wire-cord.jpg__PID:adf10c0e-b58d-4c0a-91f3-ea31ac81d8b8

Crimp Wire Cord

Crimp conductor tab, using AWG 20-18 crimping cavity

Crimp Wire Insulation

Crimp Wire Insulation

Crimp seal using round crimping cavities

Crimped Terminal

Crimped Terminal

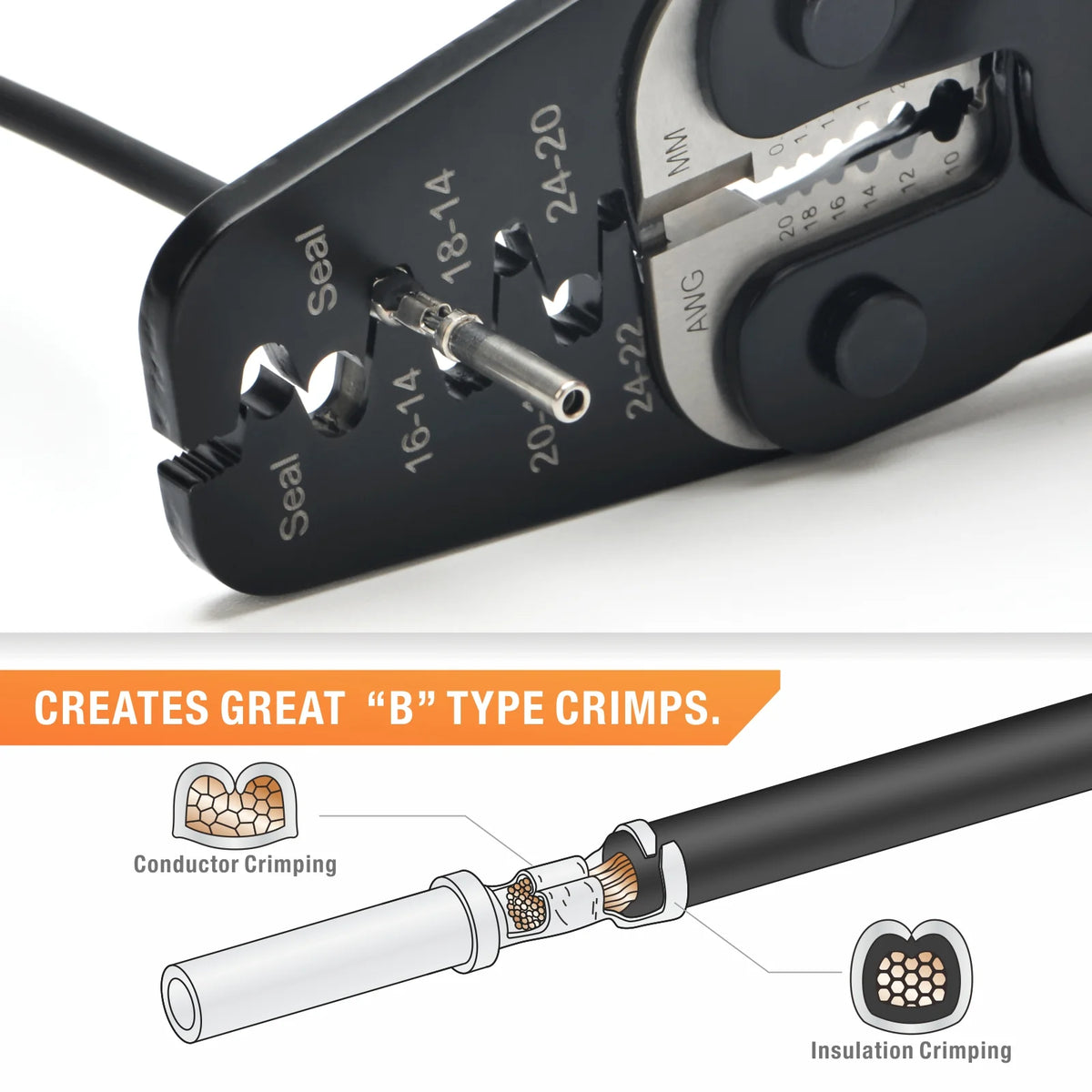

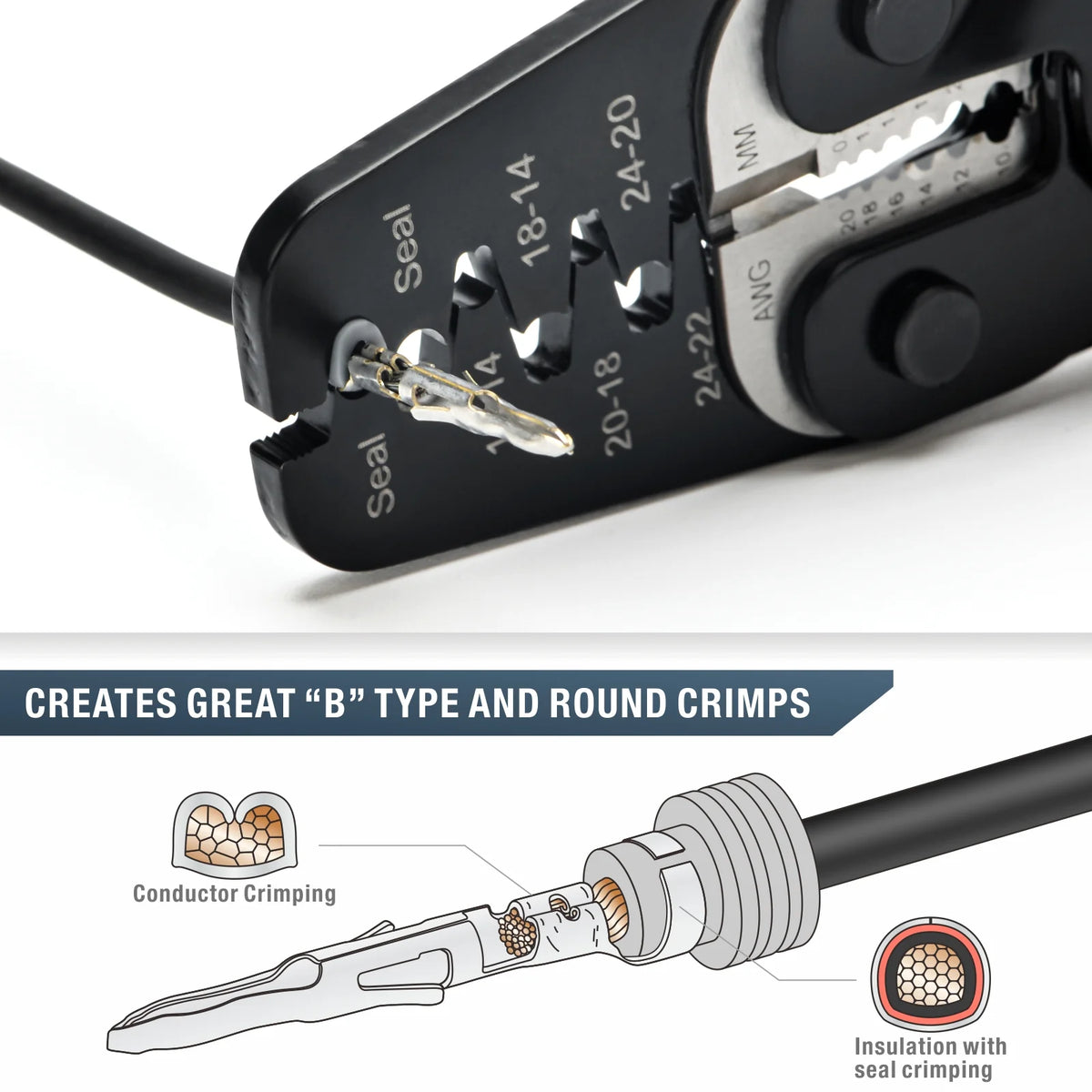

Terminal is crimped with "B" crimp on wire conductor and "O" crimp on seal

Making Deutsch Connection

Position

Position

Strip wire into proper length

Crimp Wire Strand

Crimp Wire Strand

Makes tight "B" crimps on wire cord wing

Crimp Wire Insulation

Crimp Wire Insulation

Makes solid "B" crimps on wire insulation wing

Crimped Terminal

Crimped Terminal

Ready to be inserted into Deutsch DT connector

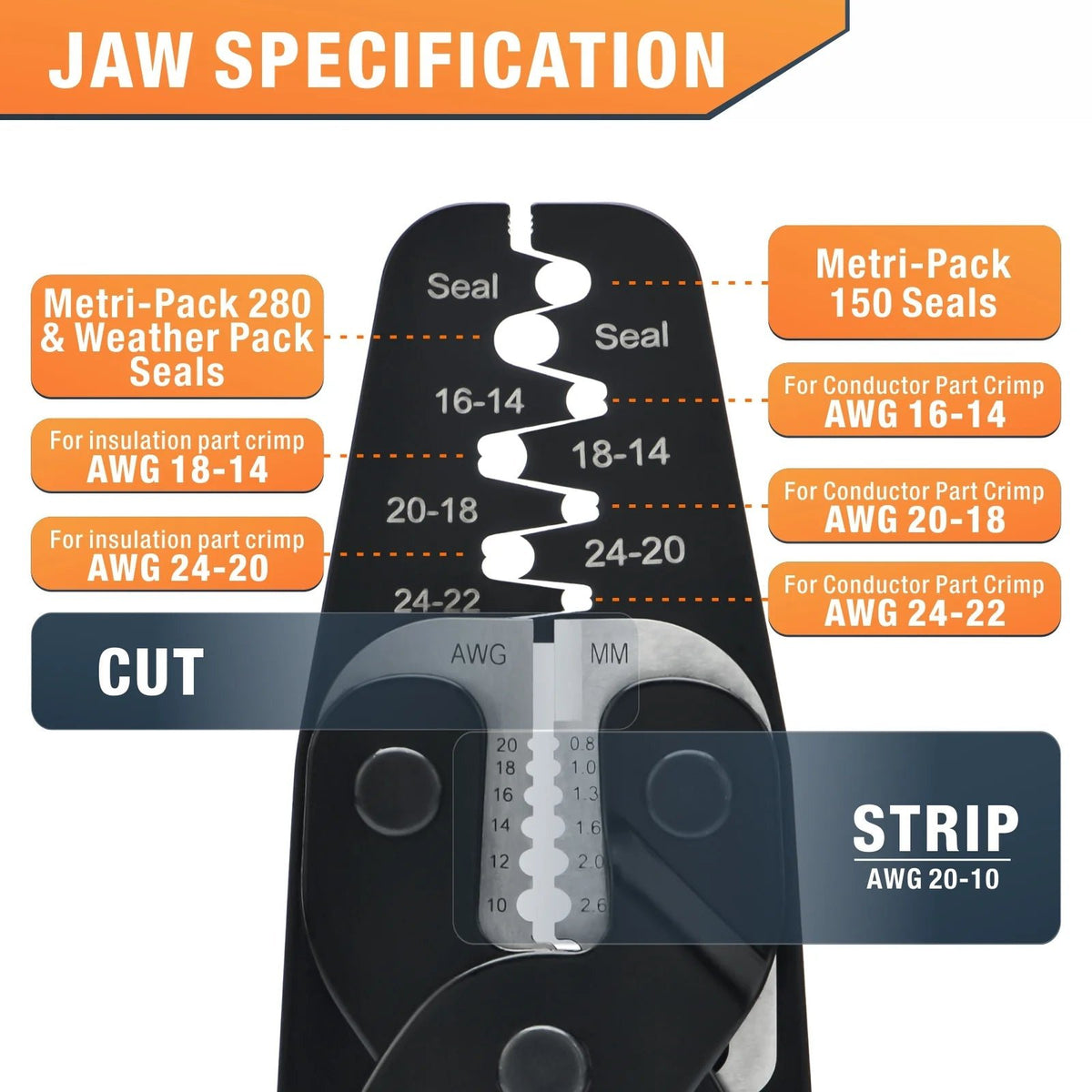

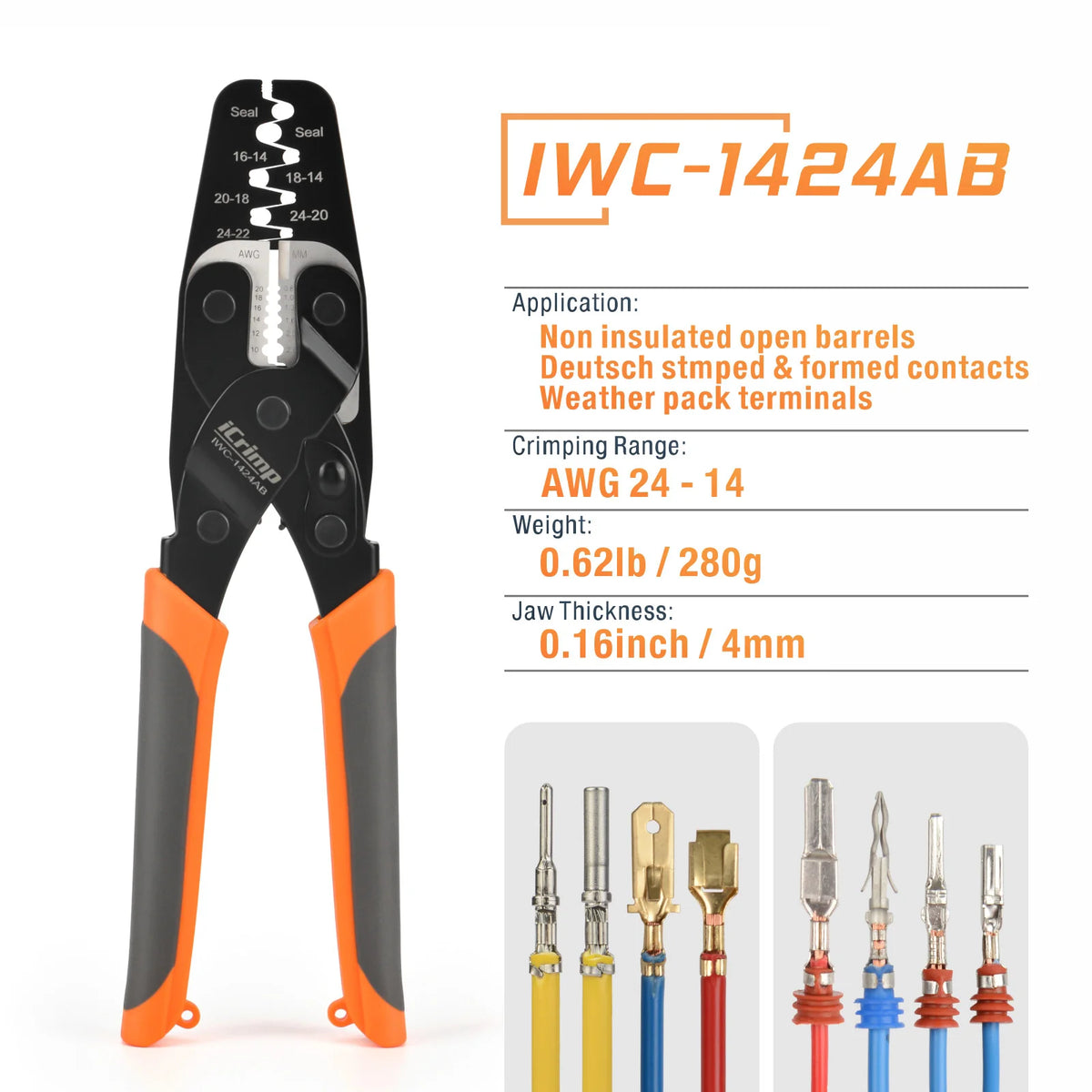

ModelIWC-1424AB
Functions Cut, Strip, Crimp
Stripping Range AWG 10-20 Stranded Wire
Crimping Range AWG 14-24
Connector Style Open Barrel (Deutsch + Weather Pack)
Applications Cars, Trucks, Motorcycle, Boat, Trailer, Marine
