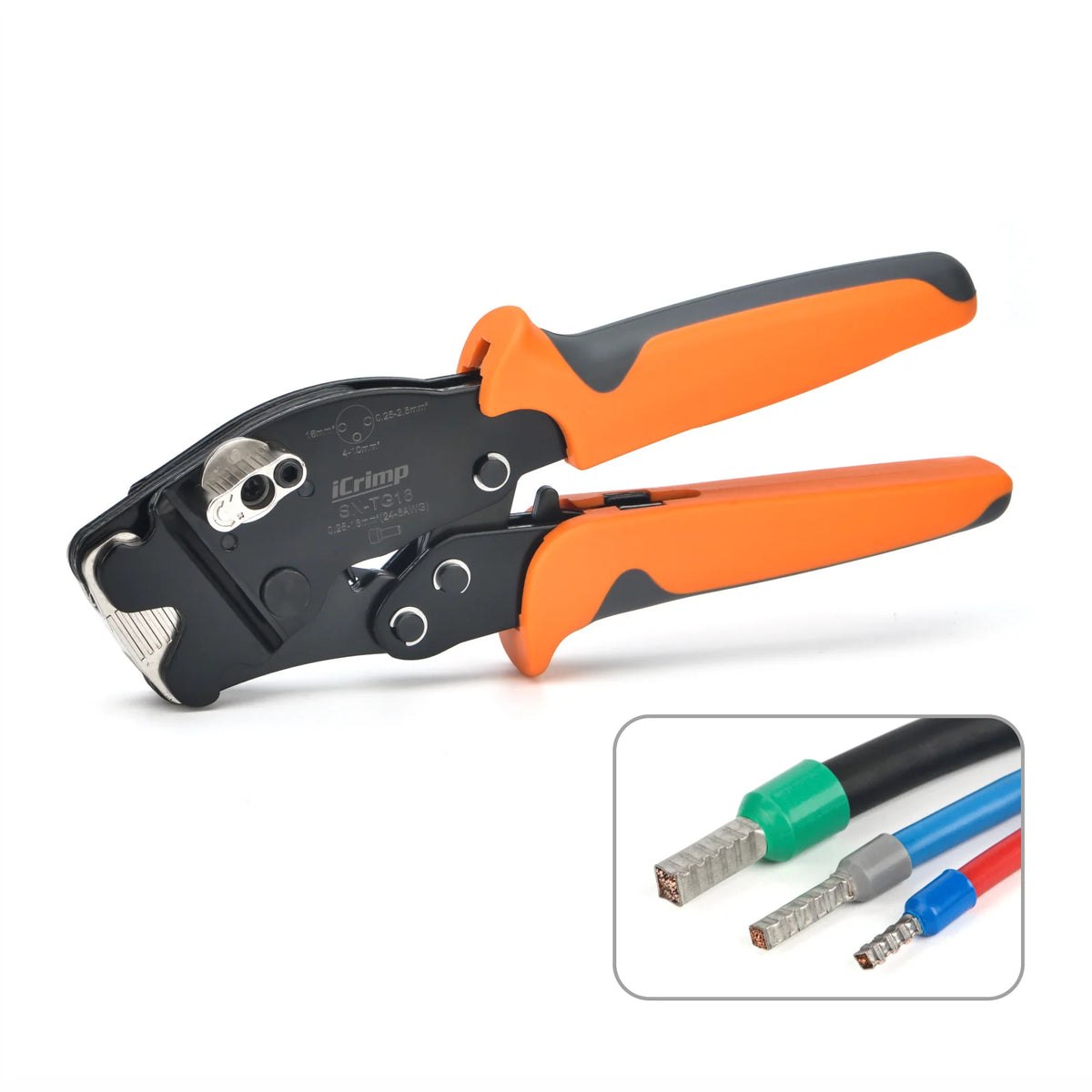

Front Loading End Sleeve Crimper SN-TG16

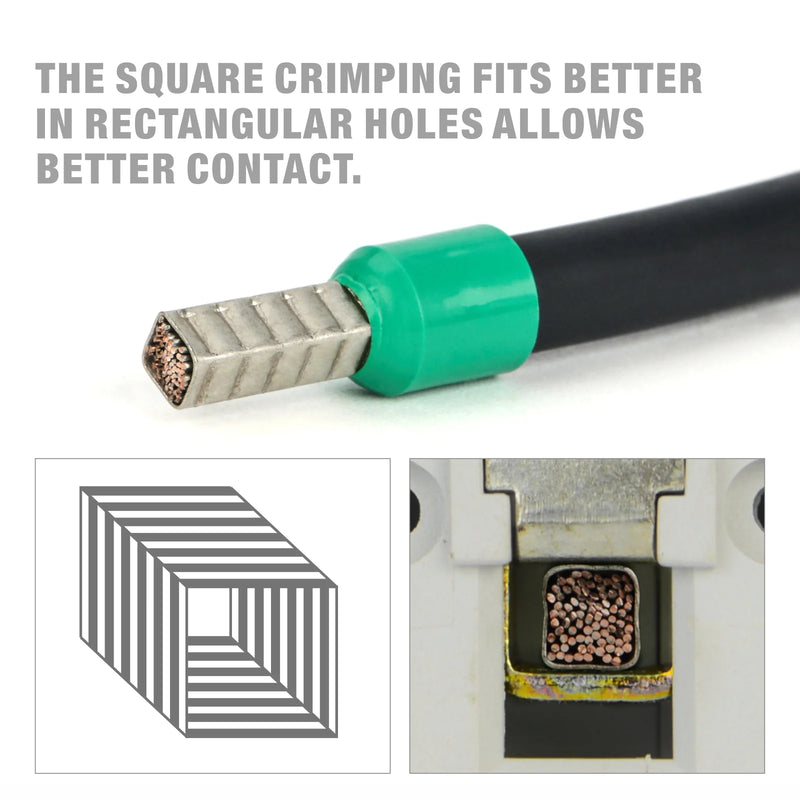

The square crimping fits better in rectangular holes allows better contact

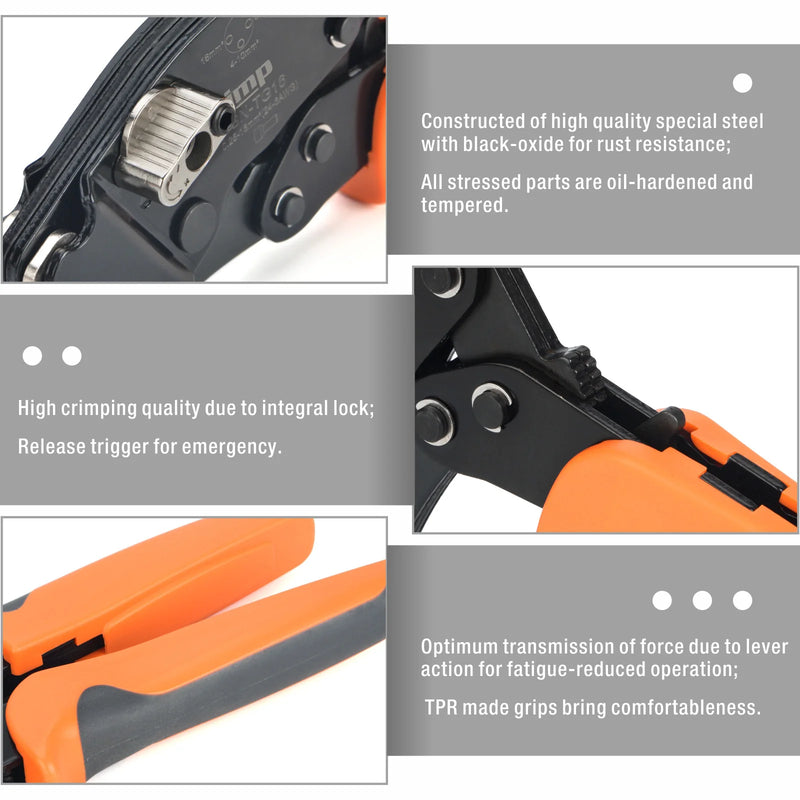

Characteristics of Front Loading End Sleeve Crimper

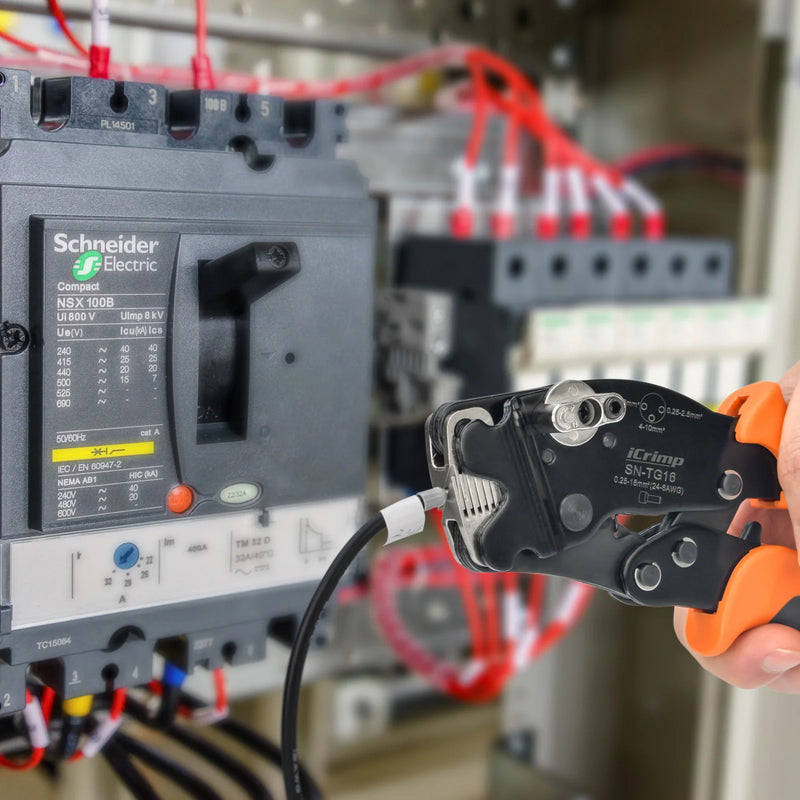

Application of Front Loading End Sleeve Crimper

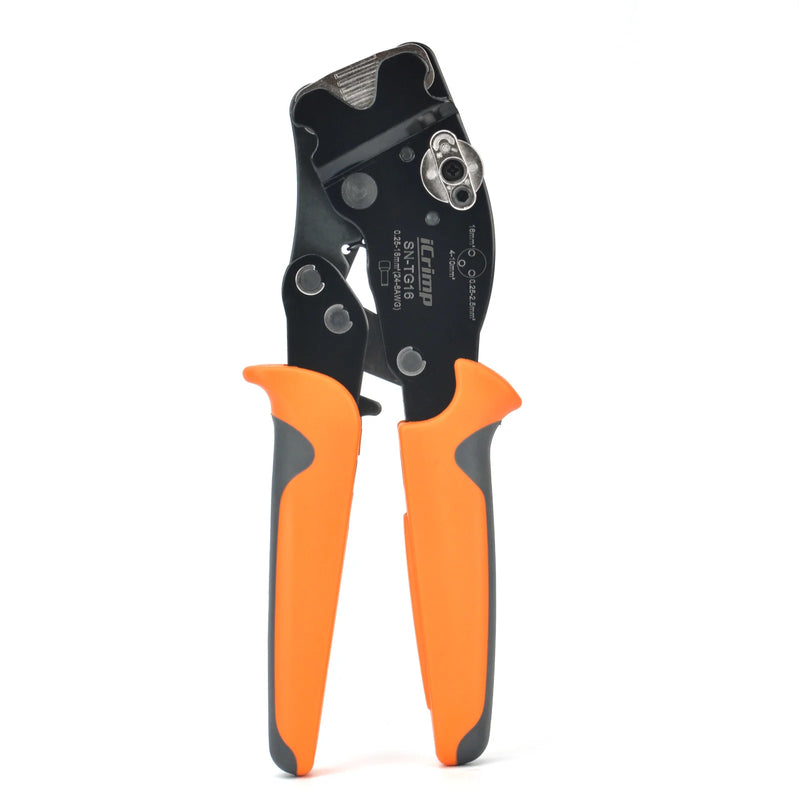

SN-TG16 Front Loading End Sleeve Crimper, Self-adjusting Ferrule Crimping Tool for AWG24-6 Wire Ends

Name: SN-TG16 Front Loading End Sleeve Crimper, Self-adjusting Ferrule Crimping Tool for AWG24-6 Wire Ends
Brand: iCrimp Tools
Price: 31.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$39.99

$39.99 - $39.99

$39.99

$31.99

$31.99 - $31.99

$31.99

Quantity

Selected configuration SN-TG16

Check the model, size and included items. Different options may be tools, kits or replacement parts.

US warehouse fulfillment is available for eligible items. Check shipping options for your destination; dispatch time is not delivery time.

Shipping & delivery before you buy

Add your tools to the cart, then estimate shipping with your country, state and ZIP/postal code. Available delivery options depend on the items and destination. Need a tool for a scheduled job? Email us with the model and ZIP code to check dispatch and delivery timing before ordering.

Shipping details

Need help choosing the right tool?Returns & warranty terms

Complete your setup

Choose only what your project needs. Optional supplies are not included unless stated.

Select a model above to see its matching recommendations. For other options, ask us to confirm fit.

Ask about compatibility Buying for a crew or workshop? Request a quantity quote

About this item

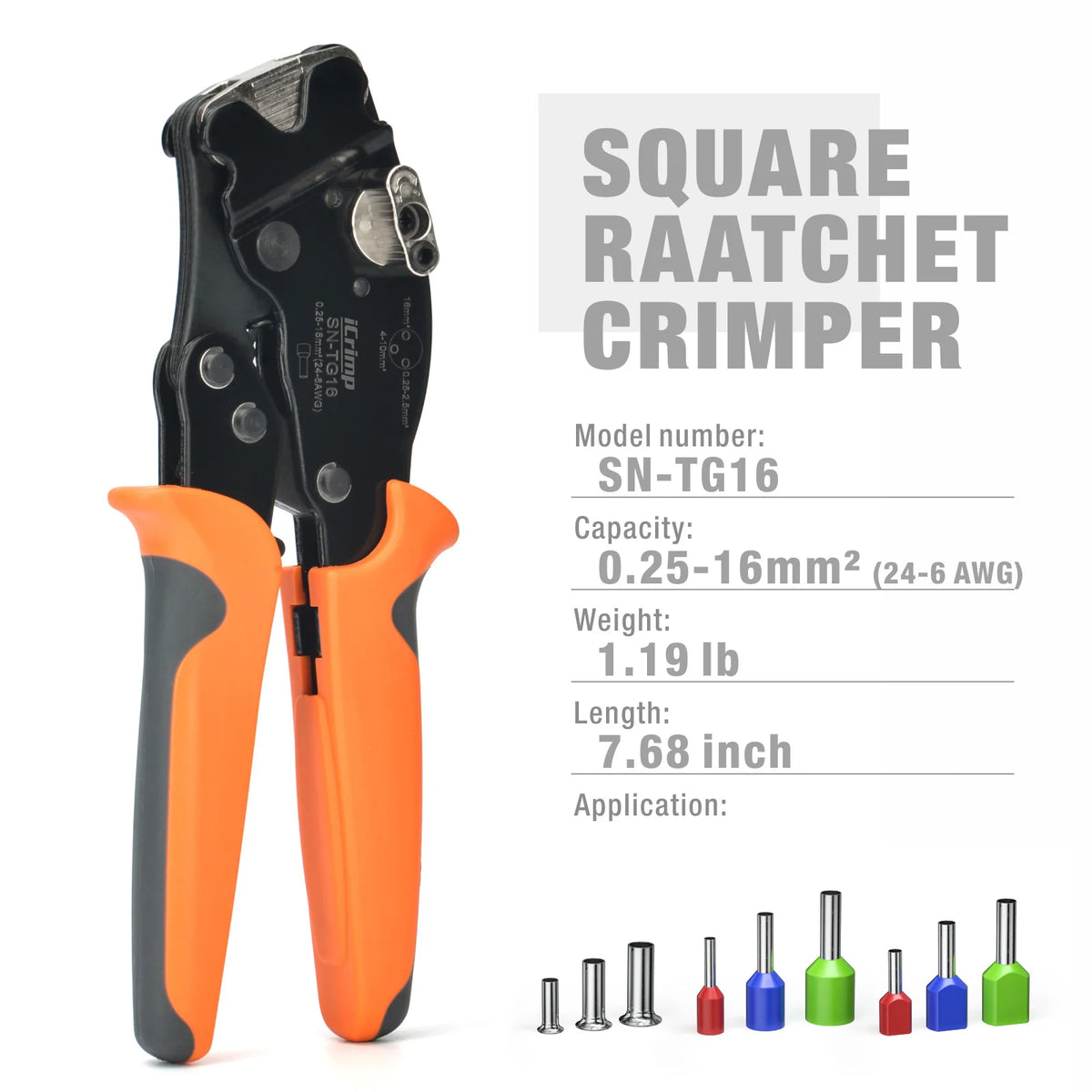

End Sleeve Crimper: SN-TG16 ratchet self-adjusting square crimping plier is designed to crimp AWG24 to AWG6 (0.08mm² to 16mm²) wire end ferrules, making fast and solder-free electrical connections.
Capacity: Optimised crimping range from 0.08-16mm²(AWG24 -6). Crimps uninsulated end terminals, pre-insulated end sleeves and twin-end ferrules.
Front Entry Crimping Tool: Frontal insertion of wire end ferrules into tool, beneficial with short conductor ends. Very helpful under difficult working conditions in confined spaces for crimping end sleeves.

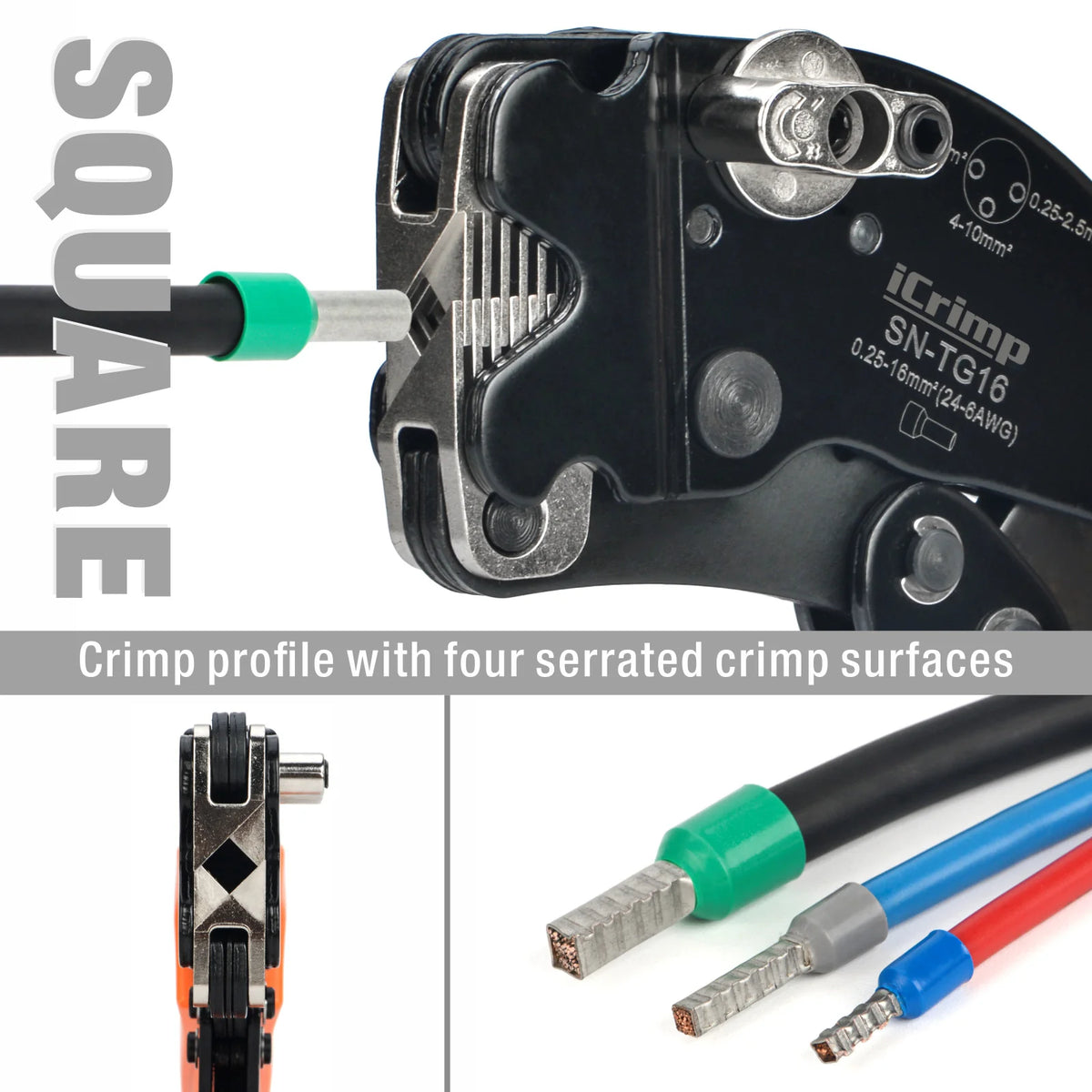

Square Crimping: Four lateral crimp profile with four serrated crimp surfaces. Encapsulated crimp eliminates stray wire breakage. Square crimping for optimum contact areas in the clamp connection.

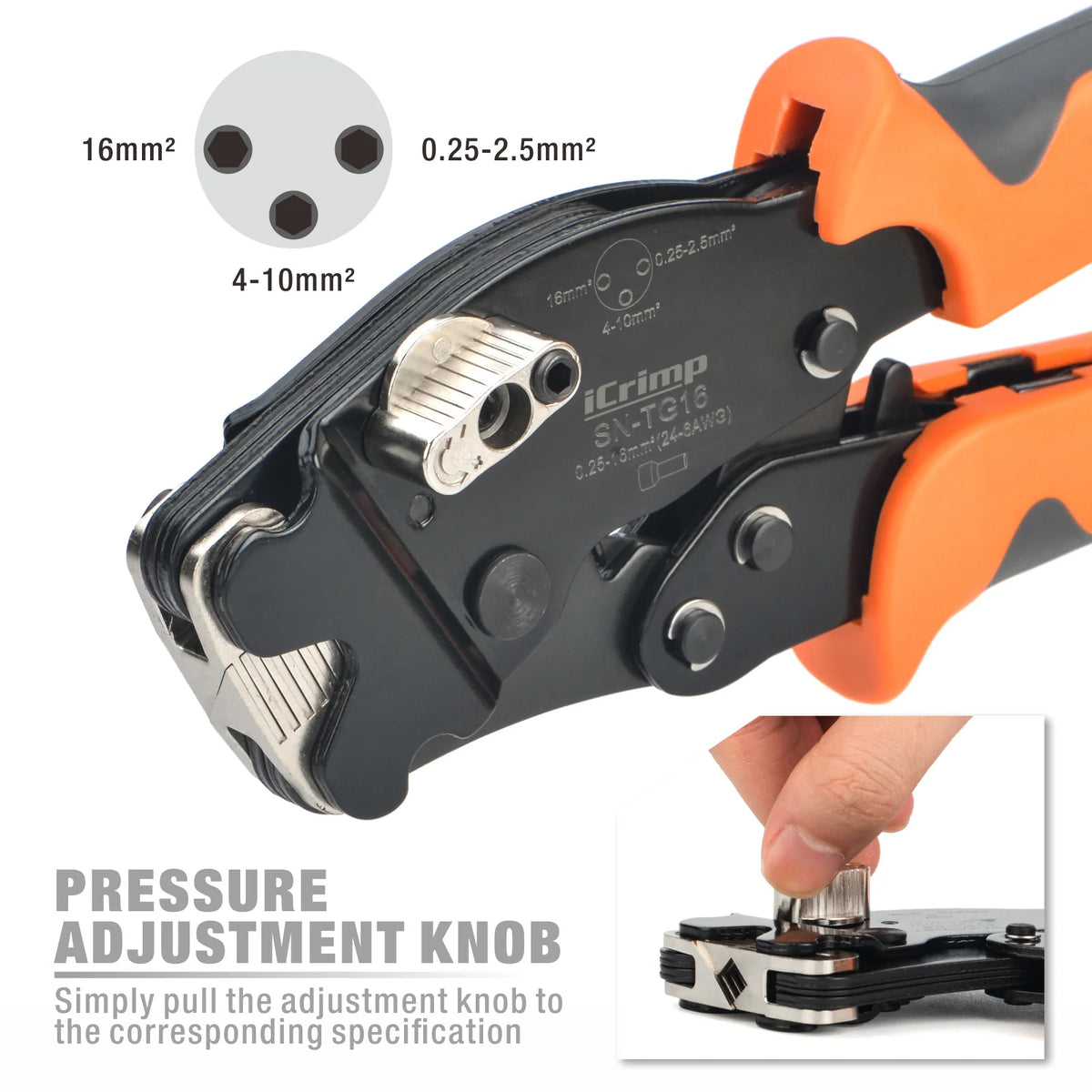

Advantages: Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Optimum transmission of force due to toggle lever action for fatigue-reduced operation.

Know your tool. Choose with confidence.

Specialists in connection tools

Part of the IWISS family, iCrimp focuses on cable and pipe connection tools, backed by in-house design and manufacturing expertise.

Meet iCrimp

Get help matching your application

Send your terminal or fitting part number, size and a photo. Our team can help you check the tool selection before you order.

Email product support

Clear support after purchase

Find shipping information, return conditions and warranty terms before buying. Keep your order number and tool model for support.

Returns & warranty terms · Shipping details

Design standards & application compatibility

Check the exact model, connection type and applicable standard before ordering. A standard referenced in a product description is not, by itself, evidence of third-party certification. Ask us for model-specific documentation if your project requires it.

Design references are not third-party product certifications. Use the model specifications and the fitting or terminal manufacturer's instructions to confirm compatibility.

How manufacturing supports reliability

IWISS manufacturing capabilities include precision machining, heat treatment, assembly and quality inspection, with dimensional measurement and tensile-testing equipment. The inspection method and acceptance criteria depend on the tool and connection application.

Ask us about the specifications or supporting documentation for your model.

Manufacturing & innovation

Need technical documents?

For instructions, compatibility details or available test documentation, email the model number and your application to sales@iwiss.com.

Ferrule and terminal-block fit

Choose the ferrule and crimp profile for the conductor and receiving terminal.

Before ordering

Check conductor area, ferrule barrel length and whether single or twin ferrules are supported.
Match the finished crimp profile and dimensions to the terminal manufacturer's requirements.

Can the same range be used for twin ferrules?

Do not assume the single-ferrule capacity applies to twin ferrules. Check the exact tool's stated twin-ferrule capacity.

What should I send for a fit check?

Send the product model, cable or pipe size, connector or fitting part number, and clear photos. Include the intended application so our team can help you identify the appropriate setup.
