HSC8 6-4 Square Self-Adjustable Ferrule Crimper for AWG23-10 Bootlace End-Sleeves Ferrule
HSC8 6-4 — review the application, configuration and working range below before ordering.
About this item

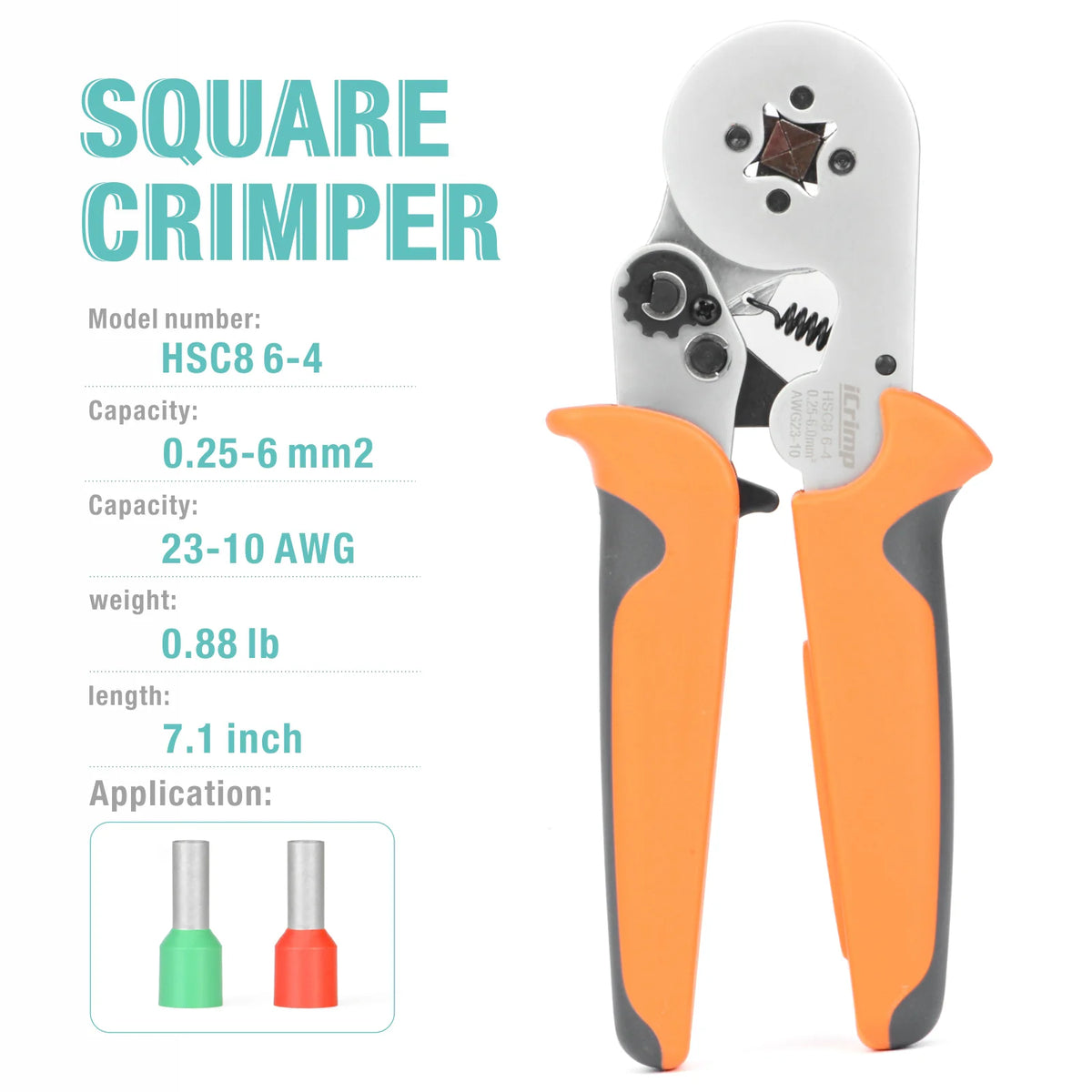

- Wire Ferrule Crimper: HSC8 6-4 is a self-adjusting crimping plier for end sleeves (ferrules) with quadrilateral access.
- Crimping Range: AWG23-10(0.25-6.00mm²). Crimping Range(Twin): 2x22-2x14 AWG (2x0.50mm²-2x2.50mm²).

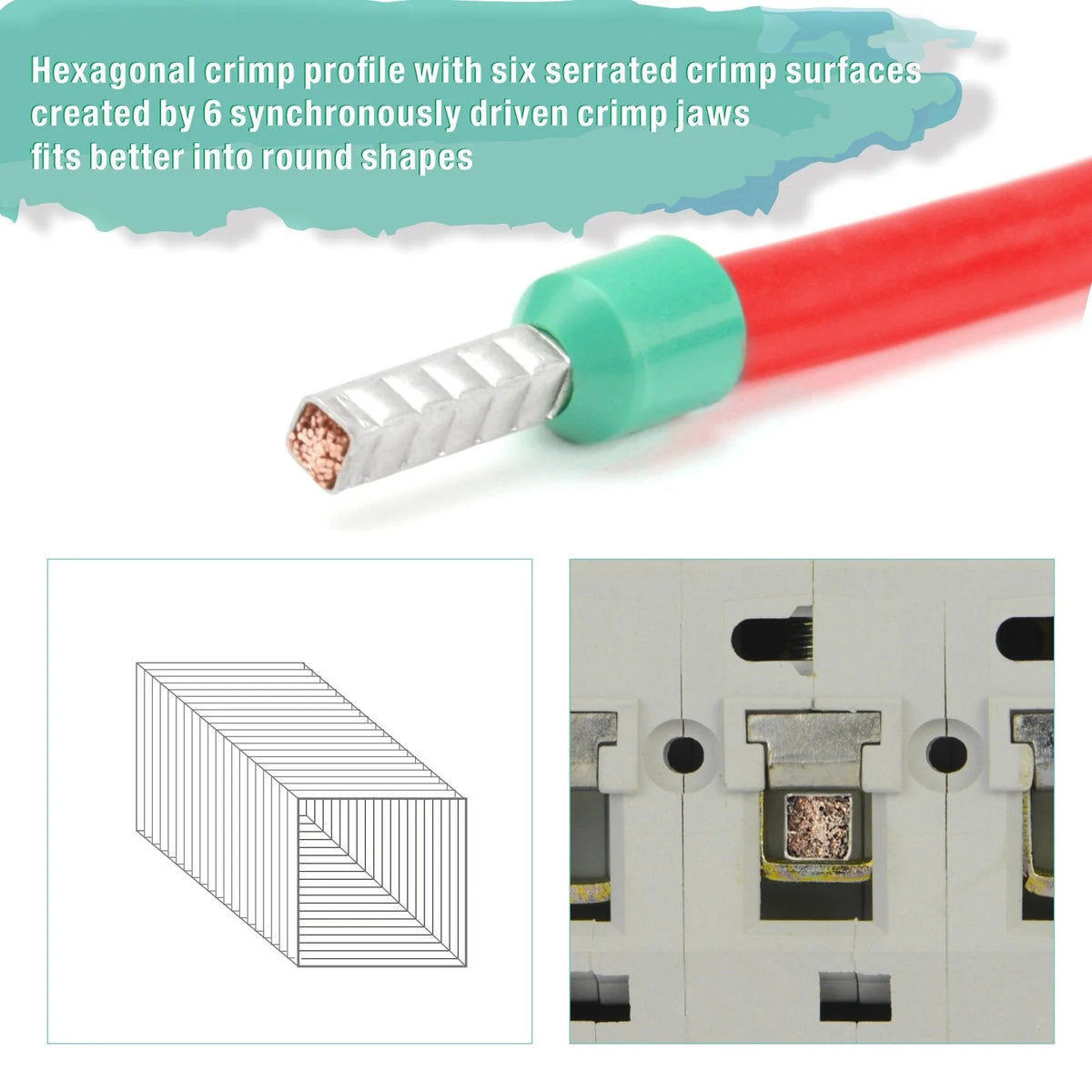

- Four-Lateral Crimping: Encapsulated crimp eliminates stray wire breakage. Ease of wire insertion eliminates loose strands of wire - wire strands will not fray or spread.

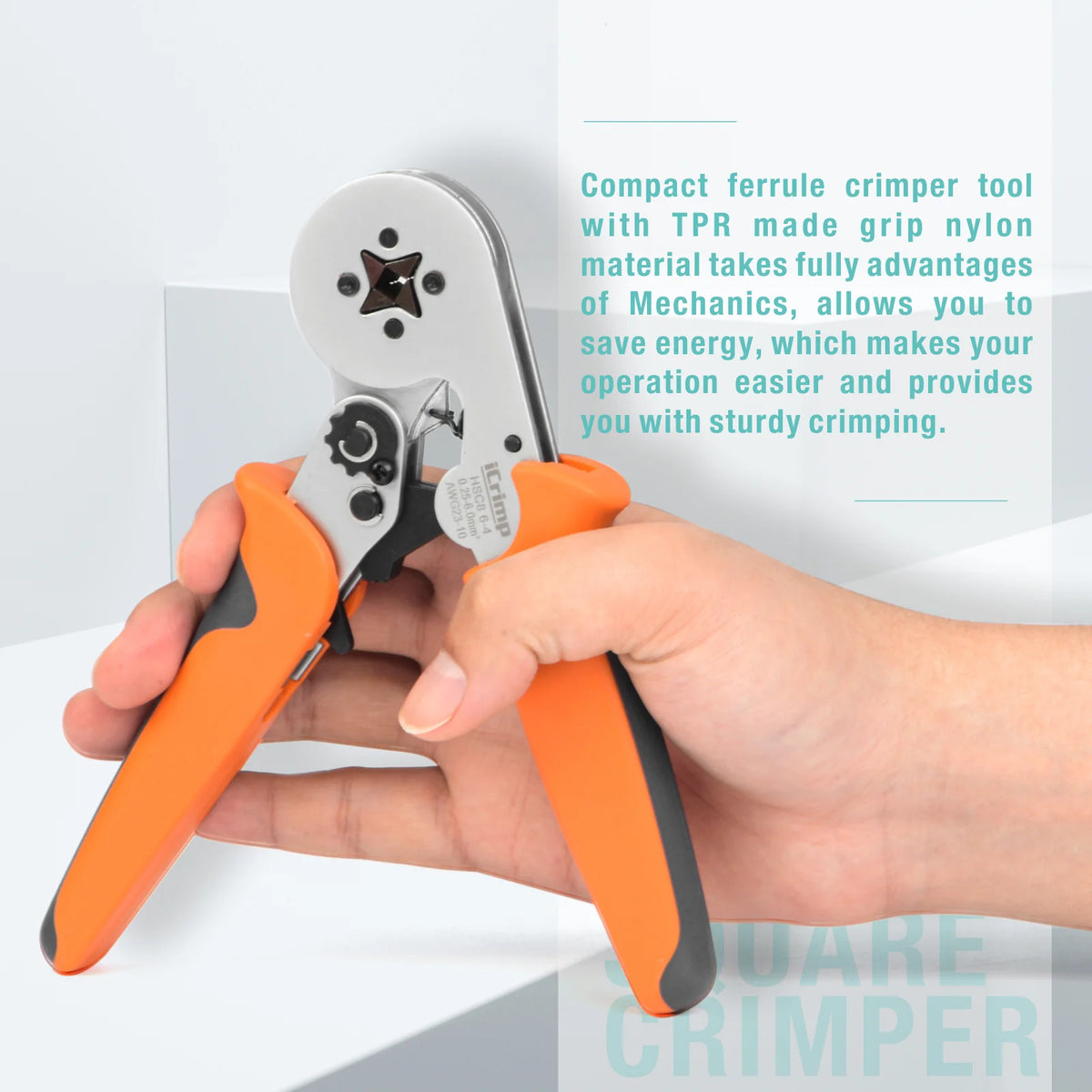

- User Friendly: Left & Right hand compatible. Ergonomically shaped non-slip handles for user comfort.
- Full Cycle Ratchet: Energy saving ratcheting mechanism requires less handle force and ensures the crimping quality. Safety crimp release helps eliminate rejected terminations due to incorrect positioning.
HSC8 6-4 — specifications
Compare available options
Choose the matching option above. Tool-only, replacement-part and kit options include different items; do not assume that every pictured component is supplied with every option.
Wire-end ferrule selection
Match conductor cross-section, ferrule type and ferrule length to the selected tool. Check whether the receiving terminal accepts the finished crimp profile.
Frequently asked questions
Can I use the same range for twin ferrules?
Do not assume a single-wire rating also applies to twin ferrules. Use only the twin-ferrule range explicitly stated for the selected configuration.
How can I confirm the right model before ordering?
Email sales@iwiss.com with the model, application, component size and a photo or part number. For delivery and returns, see our shipping information and returns policy.
