IWS-1550D: build custom 2.54 mm jumper leads

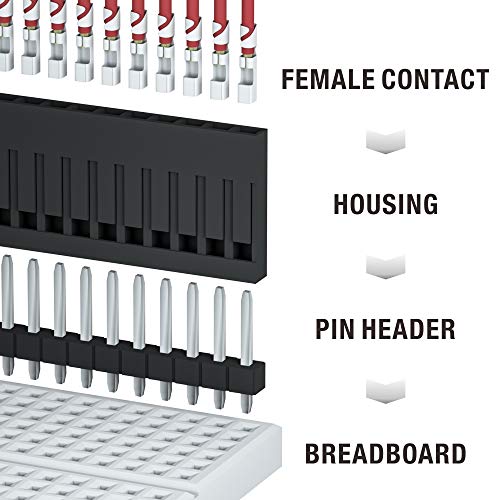

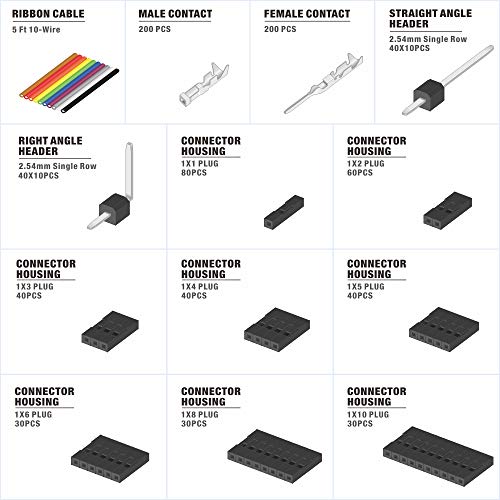

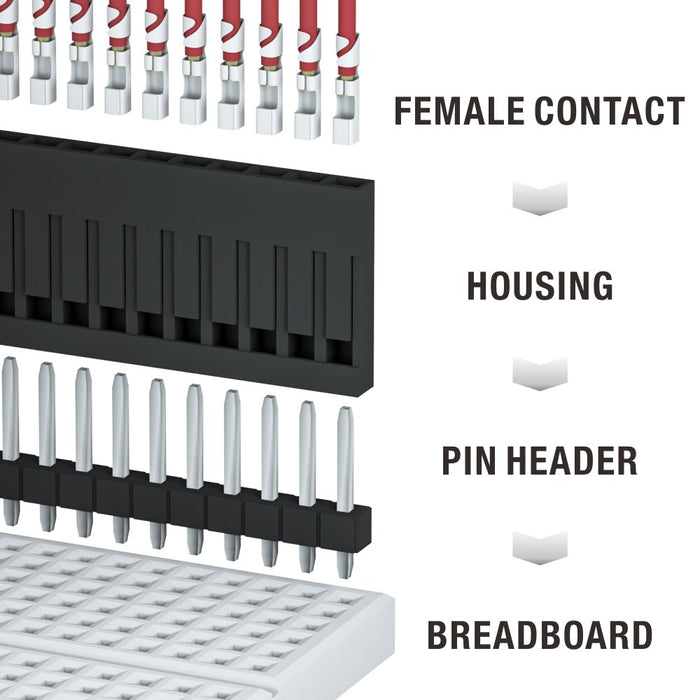

A 1,550-piece Dupont-style connector assortment for compatible electronics prototyping and signal wiring. The kit brings together housings, male/female crimp contacts and pin headers, including straight and bent header options. Count actual terminals and housing positions needed for your project; 1,550 pieces does not mean 1,550 finished cables.
Useful applications and limits

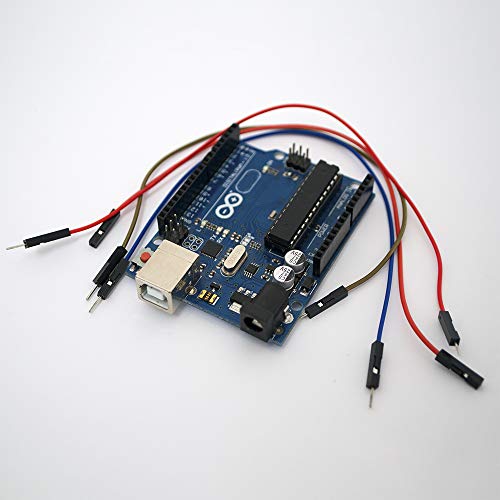

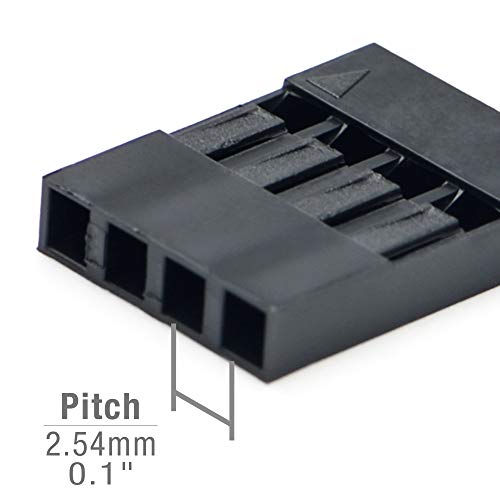

Suitable project contexts include breadboard jumper leads, RC signal connections, robotics prototypes and serviceable 3D-printer control wiring where the exact electrical and mechanical requirements permit. 2.54 mm describes contact spacing, not current capacity, polarity, sealing or universal compatibility. Do not assume suitability for printer heaters, motor power, battery power or mains wiring from the connector pitch.
These are not presented as sealed outdoor connectors. A plastic housing or shrouded header does not establish waterproofing. Verify pinout before mating: similar unkeyed connectors can be reversed or shifted by one position. RC servo, Arduino and printer pin assignments are not universally interchangeable.
How to choose a crimper

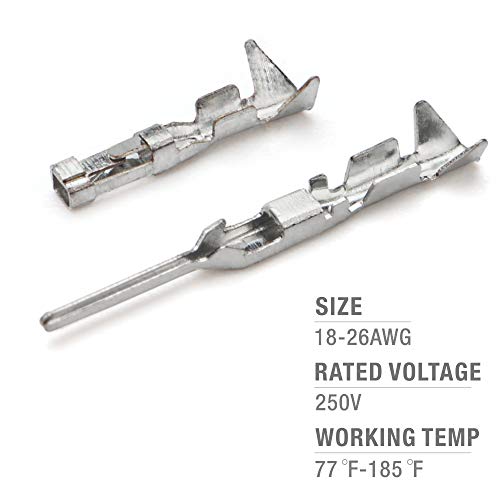

SN-28B is a candidate for matching small open-barrel contacts within its listed 28–18 AWG tool range. SN-58B offers a listed 24–16 AWG range and tool/kit options. These are tool ranges, not a claim that every supplied contact accepts every listed gauge. Match the metal contact's conductor wings, insulation support and finished crimp dimensions. A contact photo or part number is more useful than the word “Dupont” alone.
If you need a crimper as well, compare the SN-58B tool-plus-1,550-piece option instead of buying this assortment twice.

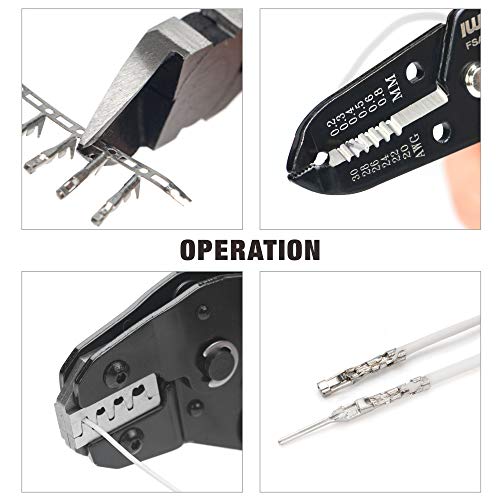

Crimp and install a jumper contact
- Disconnect power. Draw the pinout and confirm mating header pitch, contact gender, housing position and wire specification.
- Cut the wire cleanly and strip to the contact drawing. Do not nick strands or solder-tin the wire before crimping.
- Place the contact in the correctly sized open-barrel die. Keep the mating end and retaining lance clear of the jaws.

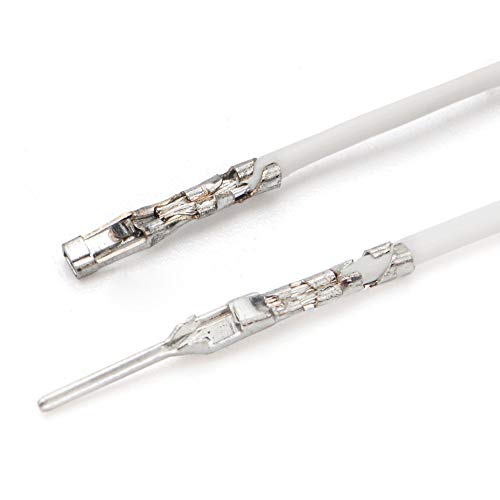

- Position conductor strands in the conductor wings and the jacket in the insulation-support area. Complete the tool cycle as directed.
- Inspect conductor capture, support and contact shape. The jacket must not occupy the conductor crimp; loose strands must not enter the mating area.
- Insert the contact in the correct orientation until its retaining lance engages. Gently check retention; verify every cavity against the pinout before powering the circuit.
Why does a pin pull out of its housing?
Check for a flattened retention lance, wrong contact orientation, an oversized or distorted crimp, and incompatible housing/contact dimensions. Replace damaged contacts rather than forcing them into place.
Read the connector selection guide, including the 2.54 mm electronics section · Learn conductor and insulation-crimp inspection.
For a fit check, email sales@iwiss.com with the contact or lug part number, wire gauge, insulation diameter, mating connector and clear photos. For repeat workshop orders, also include quantities and your validated tool setting.
