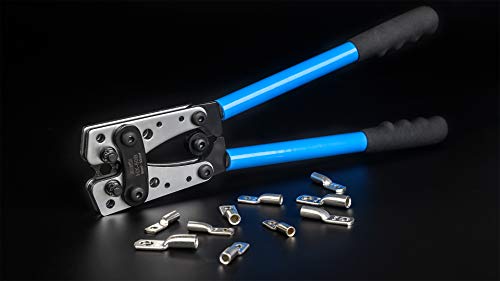

Battery Cable Lug Crimping Tool for Heavy Duty Wire Lugs, Battery Cable Ends from AWG 8-1/0
HX-50BI-AWG — review the application, configuration and working range below before ordering.
About this item
- Welding Cable Lug Crimper: HX-50BI battery cable lug crimper is designed to crimp 8, 6, 4, 2, 1, 1/0AWG battery lugs, making secure connection with cables, electrical appliances, and other power mechanisms in harsh-duty environments.

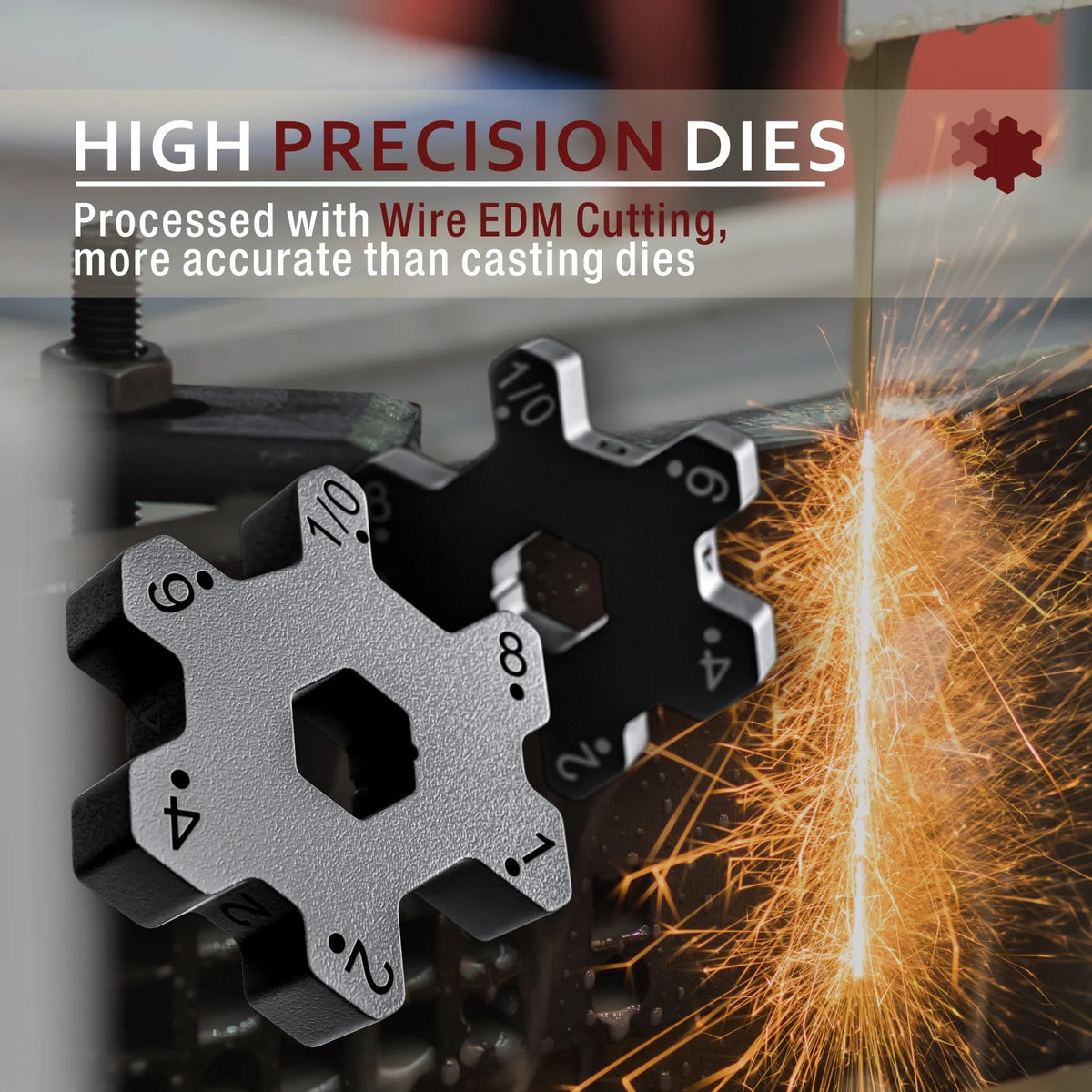

- Rotating Die Set: EDM cutting dies are more dimensionally accurate than stamped dies, prevent inaccurate crimps. Compact rotation die for effortless die changing. Size Coded Crimping: When properly crimped, the die code number will be embossed on the connector for easy inspection to determine if correct die and connector combination were used.
- Hex-Crimp Result: Hexagonal crimping is a strong mechanical connection, creating large area of high pressure contact between cable and connector which in turn results in low resistance and high pull-out values.
- Applications: Commercial Vehicles include emergency vehicles, generator sets (Gensets), recreational vehicles, trucks, cranes, and lifting equipment.
Features and configuration
HX-50BI — key features

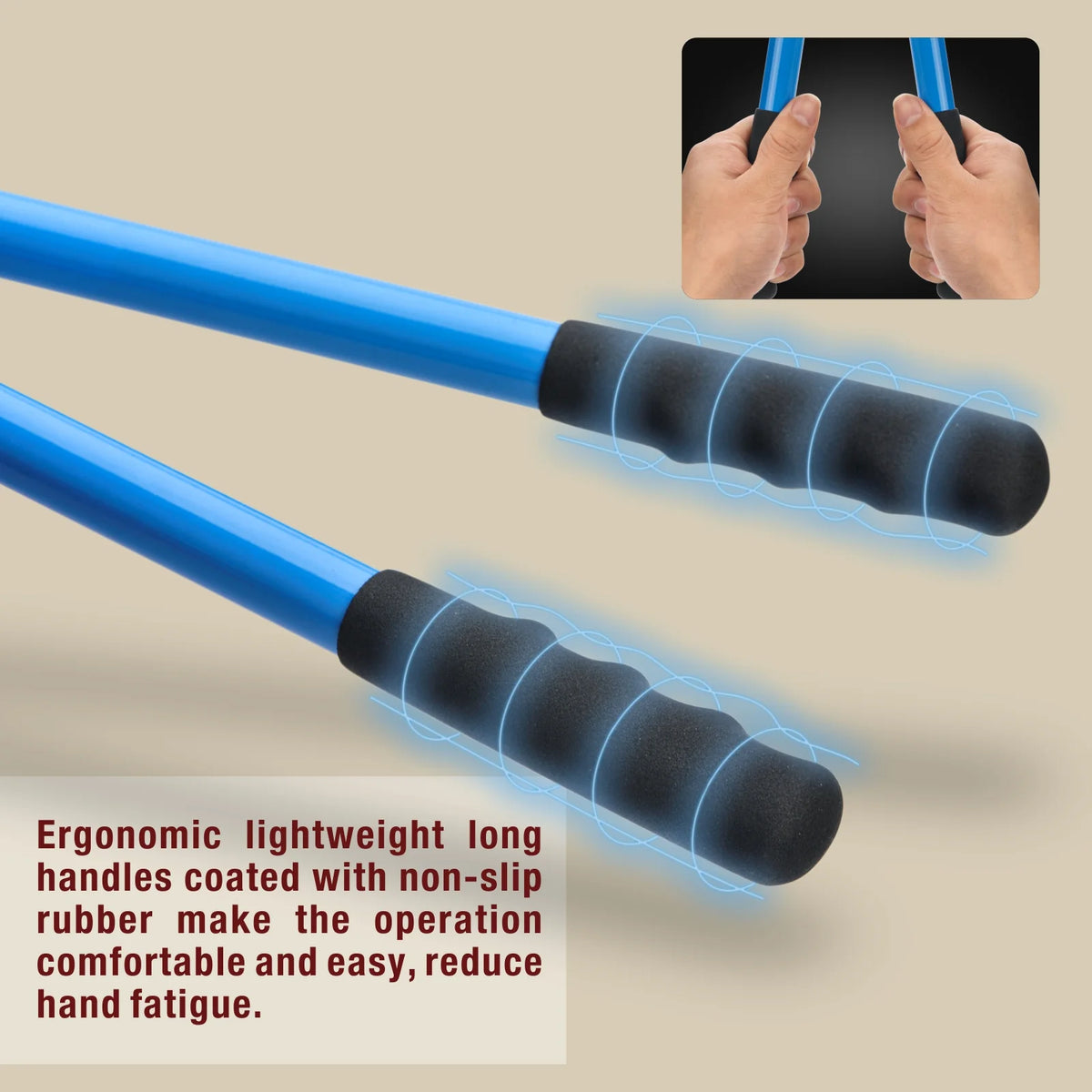

- ERGONOMICS DESIGN: Anti-slip rubber coated handle for a more comfortable and saving labor work.

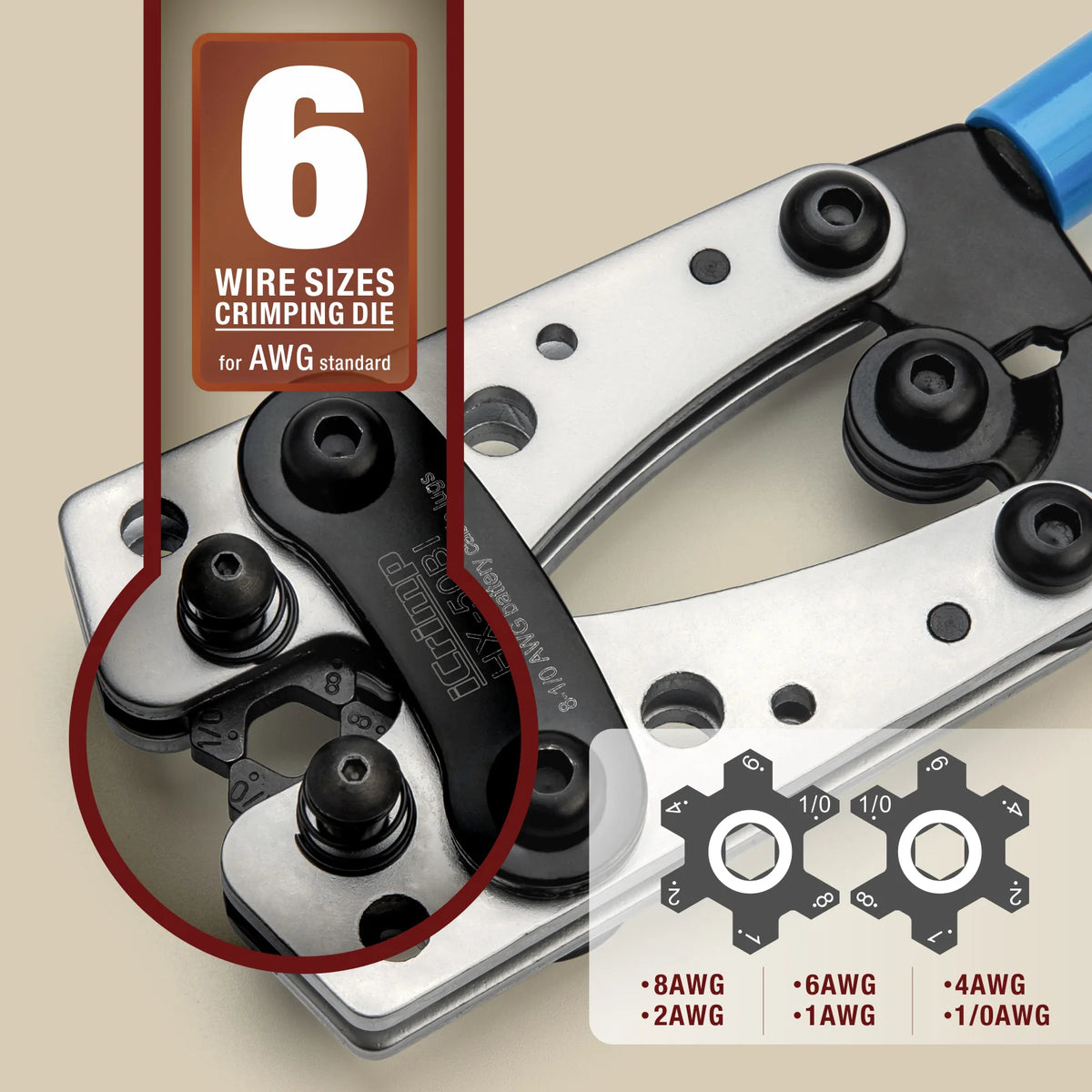

- ROTATE CRIMP DIES: The tool has 6 dies of 8, 6, 4, 2, 1, 1/0 AWG, using rotating heads with a spring loaded locking pin to keep the heads.

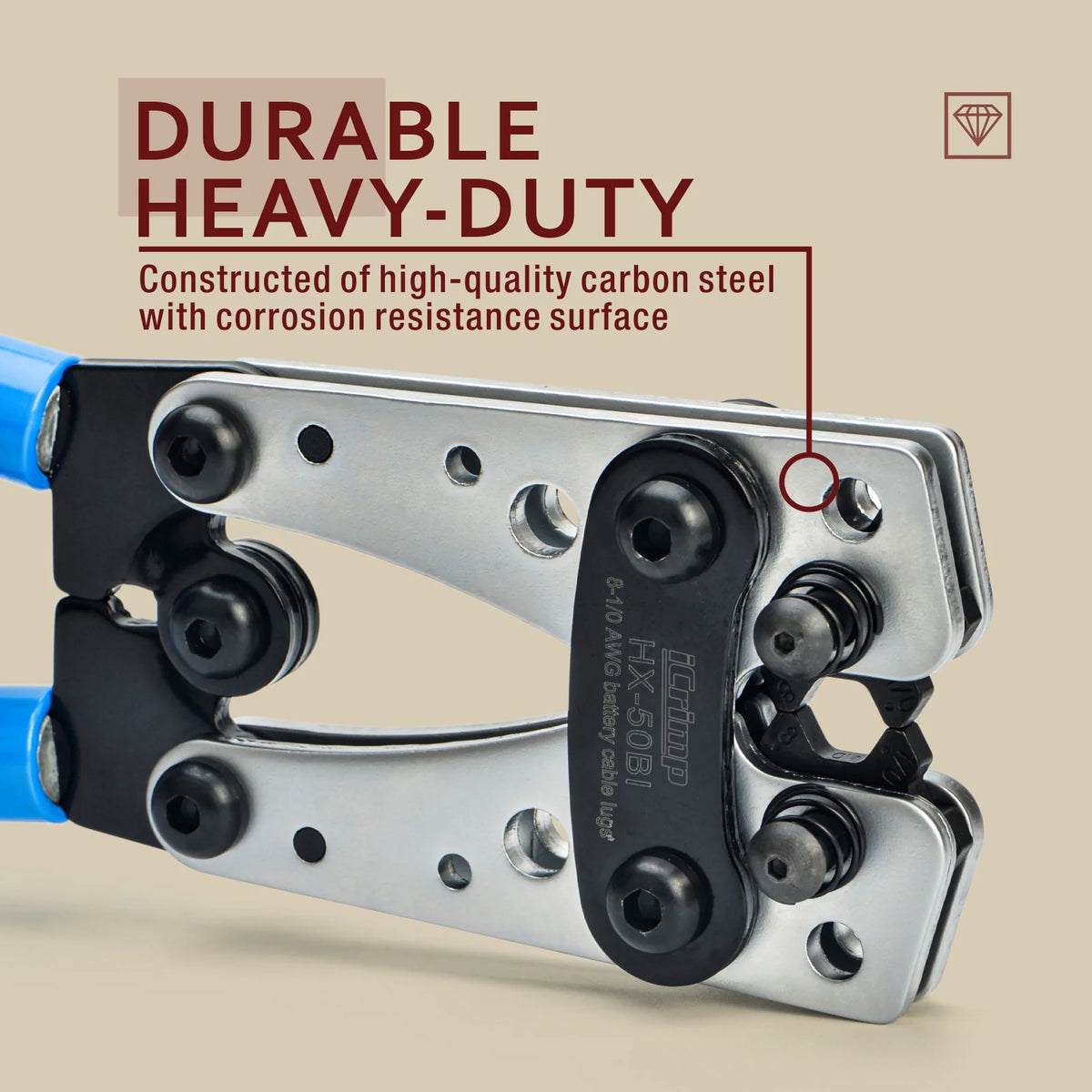

- DURABLE: Crimper is made of SCM-40 hardened steel for a durable and long service life use. We specially thicken and reinforce the metal plate on crimp head.
- EASY OPERATION: Press the screw and rotate the dies to the size you need, then just take a strong pull of the ratcheting wire terminal crimper then produce a good crimp on cable lugs.
- HIGH PRECISION JAW DESIGN: Crimper with high precision jaw ensure a tightly connection after crimping with strong work pressure. This tool has widely application in automatic electronics work.
HX-50BI-AWG — specifications
Cable lug selection
Match conductor material and cross-section to the lug barrel and die range. A similar AWG label does not establish compatibility with every lug wall thickness or material.
Frequently asked questions
Can I use the tool for any terminal with the same wire size?
No. Check the terminal material, barrel dimensions and specified crimp form. Use only the terminal types listed for the selected tool.
How can I confirm the right model before ordering?
Email sales@iwiss.com with the model, application, component size and a photo or part number. For delivery and returns, see our shipping information and returns policy.
