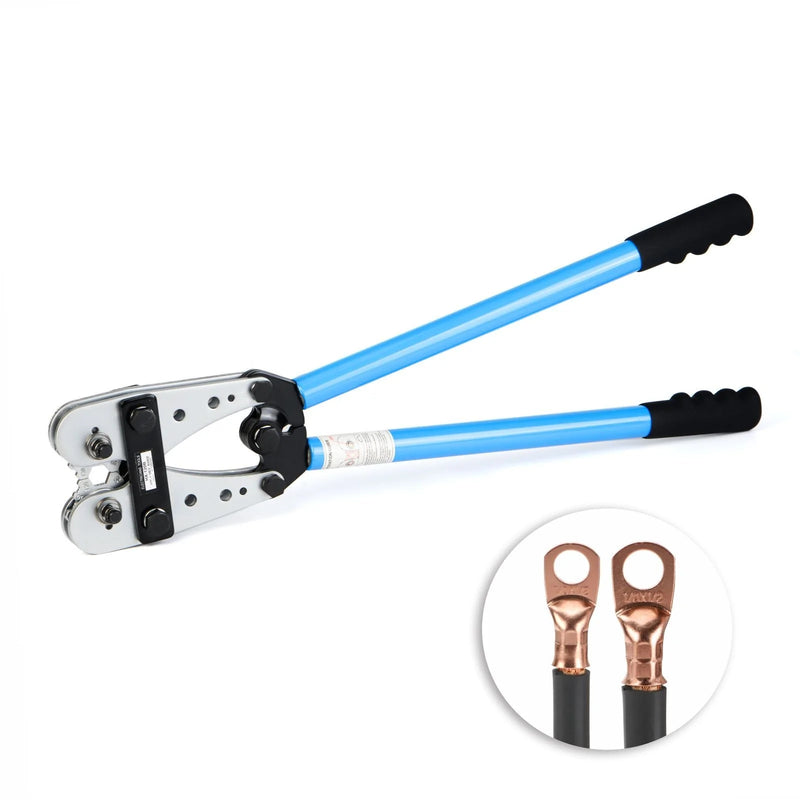

HX-120B Wire Terminal Crimping Tool Cable Lug Crimper
HX-120B Wire Terminal Crimping Tool

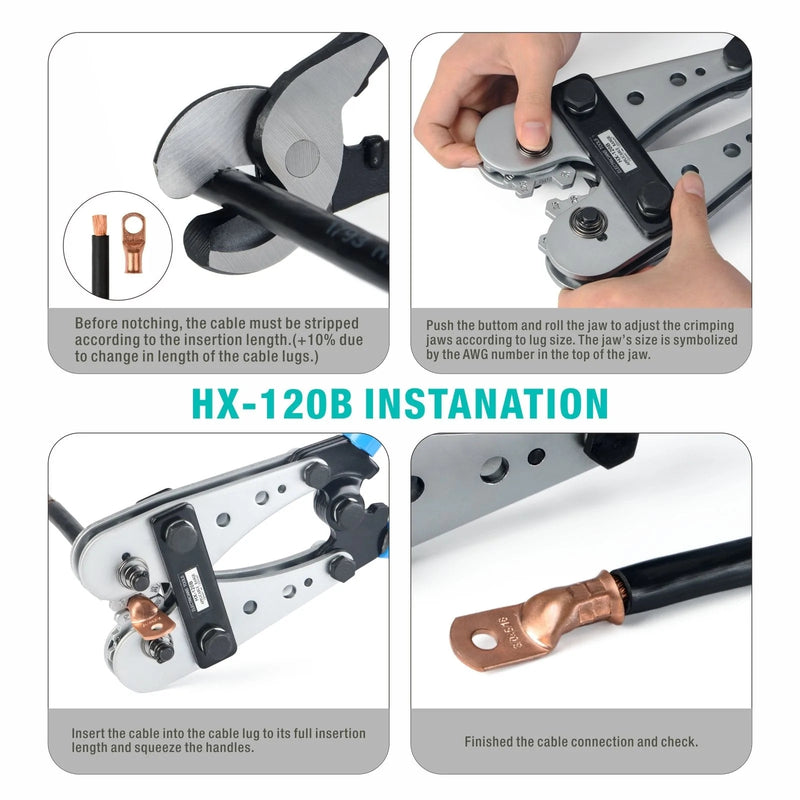

Instruction manual

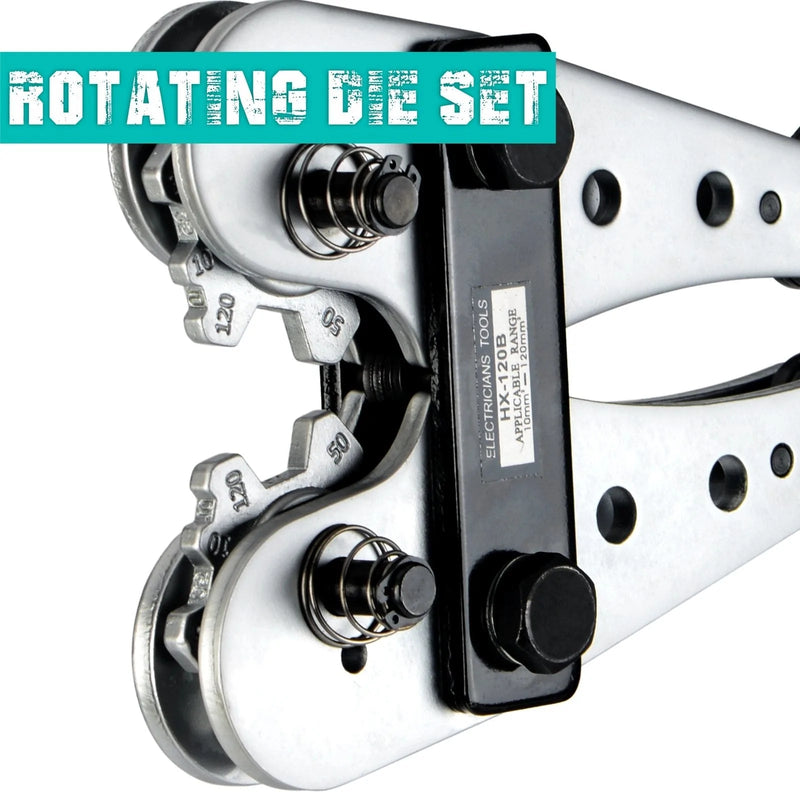

Jaw of HX-120B Wire Terminal Crimping Tool

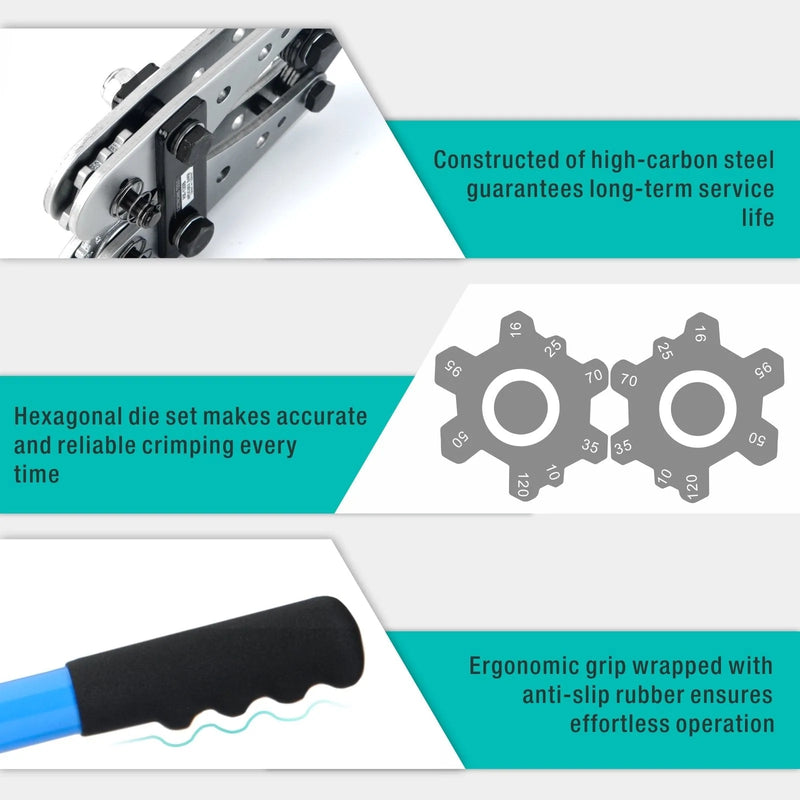

Characteristics of HX-120B Wire Terminal Crimping Tool

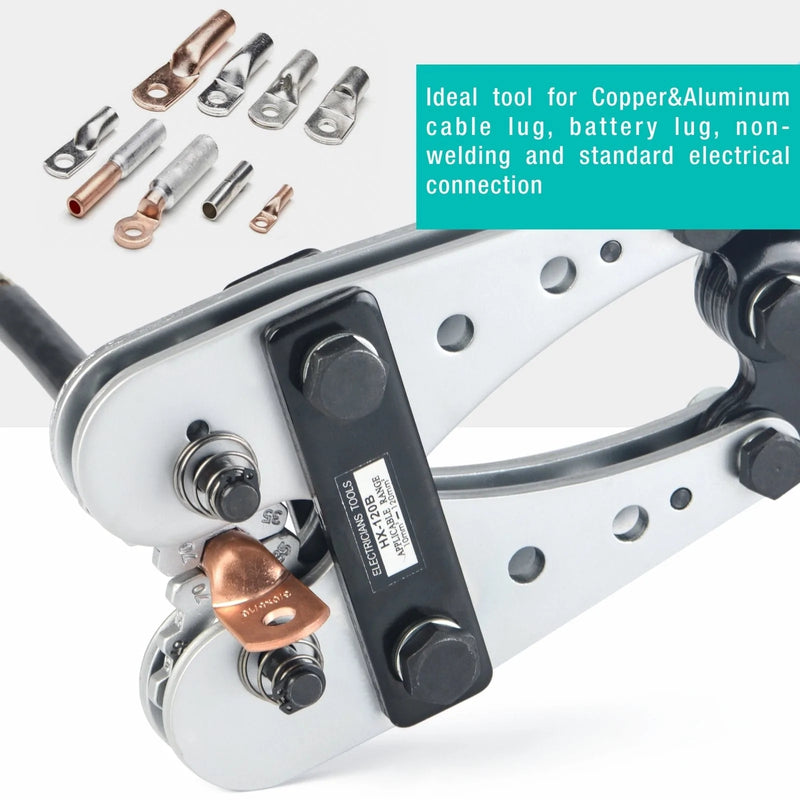

Ideal tool for Copper&Aluminum cable lug, battery lug, non-welding and standard electrical connection
HX-120B Wire Terminal Crimping Tool Cable Lug Crimper
HX-120B Wire Terminal Crimping Tool
Instruction manual
Jaw of HX-120B Wire Terminal Crimping Tool
Characteristics of HX-120B Wire Terminal Crimping Tool
Ideal tool for Copper&Aluminum cable lug, battery lug, non-welding and standard electrical connection
1 / 6

HX-120B Battery Cable Crimper for 10-120mm² Heavy Duty Wire Lugs

$69.90
$69.90 - $69.90
$69.90
$42.99
$42.99 - $42.99
$42.99
Selected configuration HX-120B

Check the model, size and included items. Different options may be tools, kits or replacement parts.

US warehouse fulfillment is available for eligible items. Check shipping options for your destination; dispatch time is not delivery time.

Shipping & delivery before you buy

Add your tools to the cart, then estimate shipping with your country, state and ZIP/postal code. Available delivery options depend on the items and destination. Need a tool for a scheduled job? Email us with the model and ZIP code to check dispatch and delivery timing before ordering.

Shipping details

Need help choosing the right tool?Returns & warranty terms

Choose your battery-lug tool and package

Already have a cutter and stripper? Choose a tool only. For a new cable-making setup, compare the matching kit. Start with the lug barrel and conductor marking.

Model / configuration Range / contents Selection guide
HX-50B 6, 10, 16, 25, 35, 50 mm² Metric die markings
HX-50BI AWG 8, 6, 4, 2, 1, 1/0 AWG die markings
HX-50BI + cutter AWG 8–1/0 Crimper and cable cutter configuration
KIT-50B 6–50 mm² Metric crimper with cutter and stripper
HX-120B 10–120 mm² Larger metric lug-tool option

Before you choose: AWG and metric versions use their own marked die sizes; do not treat an approximate unit conversion as proof of fit. A cutter-only selection does not include a crimper. Match the lug material and wall thickness to the tool instructions.

Ask for help choosing the right tool

iCrimp HX-120B Wire Terminal Crimping Tool Cable Lug Crimper

The crimping tool is used for non-welding and standard electrical connections. The mold of the crimping dies is made of hardened tool steel. It is with the characteristics of a long life, accurate bore diameter, and good crimping effect.

Feature

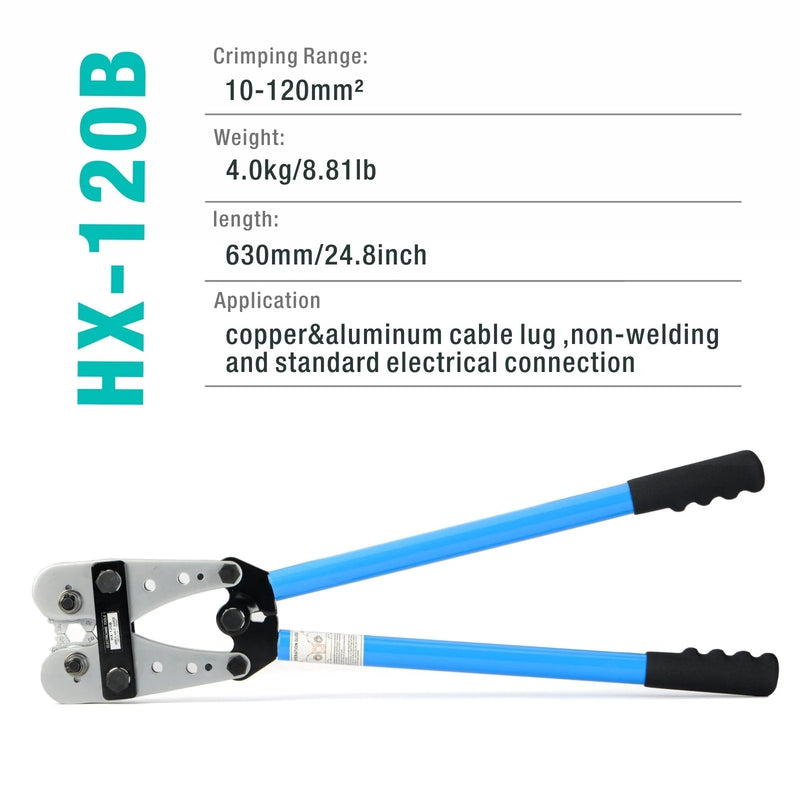

Crimping Range: 10-120mm²
The crimper is robust and of high quality
