iCrimp PEX Expansion Tool Kit, Sized 1/2,3/4,1-inch, Auto Rotation Expander Tool with Pex-A Tubing Installed for Uponor ProPEX, PowerPEX Expansion Ring

Original price $149.99
Original price $149.99 - Original price $149.99
Original price $149.99
Current price $125.99
$125.99 - $125.99
Current price $125.99

About this item

  • Components: IWS-1960R PEX-a Expansion Tool Kit with 1/2 in., 3/4 in. and 1 in. expander heads, tool lubricant and a convenient carrying case.
  • Purpose: Designed to make F1960 cold expansions. Solid, permanent, manufactured connections without the need for torches, glues, solder, flux or gauges can be expected by expanding Non-Barrier PEX Tubing and reinforcing ring to make a connection with an ASTM F1960 fitting.

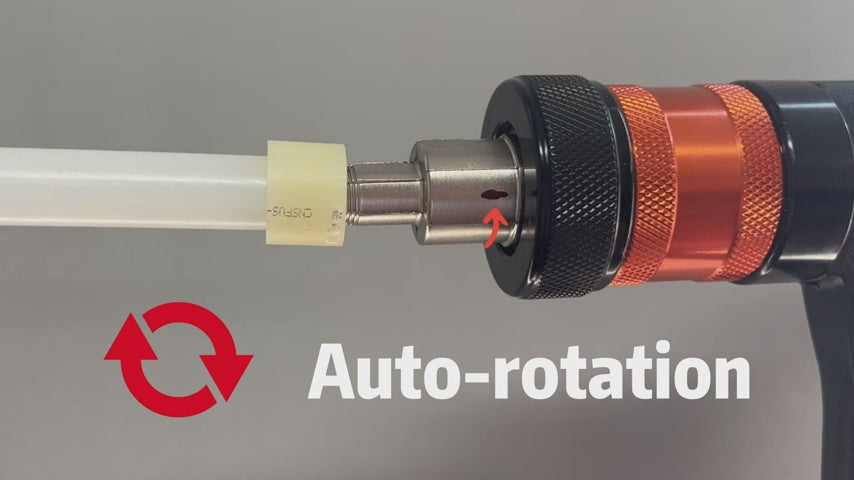

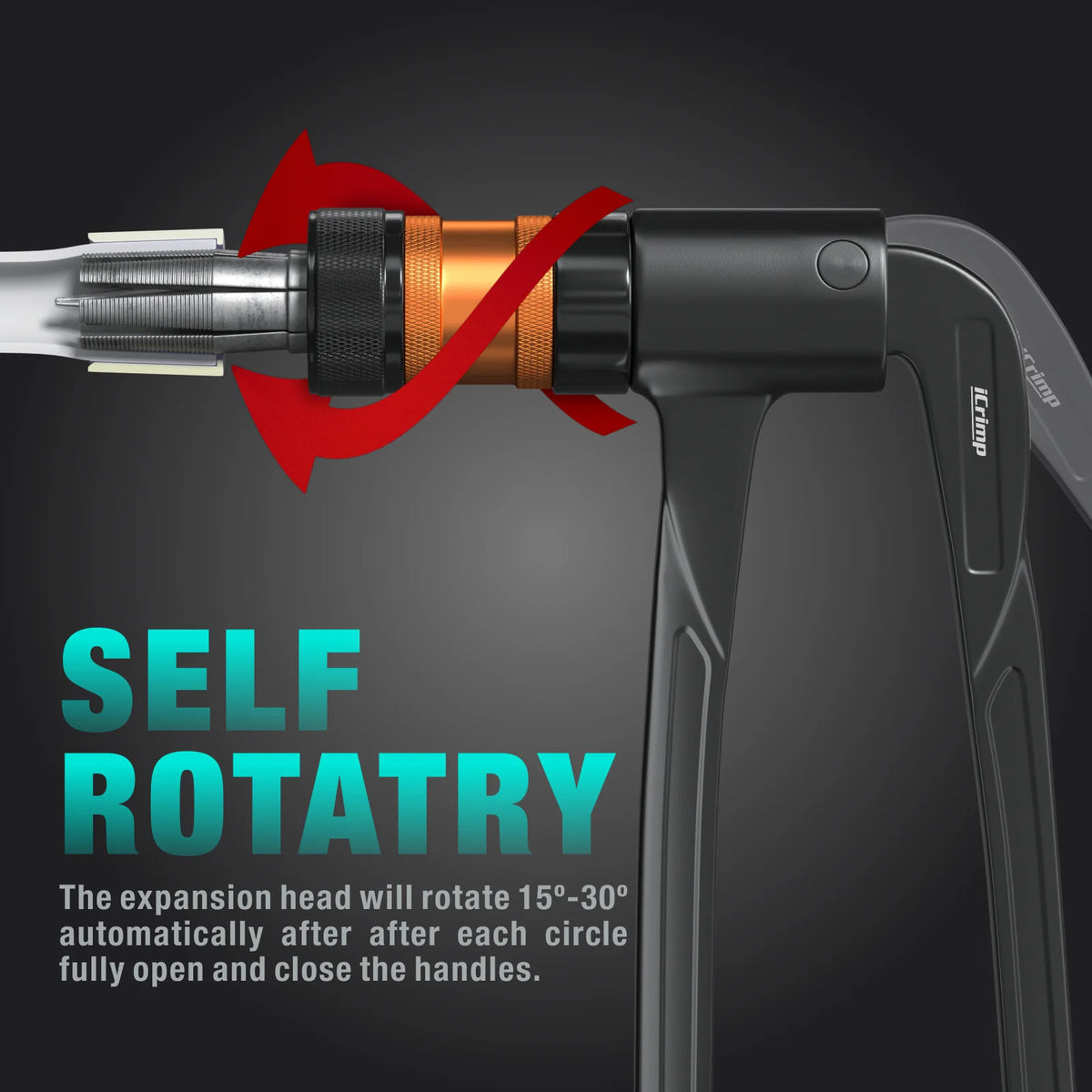

  • Features: Equipped with an Auto Rotation Adapter. Users can simply hold the tubing and tool in place while separating and closing the handles to expand the tubing. The Auto Rotation Adapter will automatically rotate to ensure the tubing is evenly expanded. Roration is not visible because it's triggered only when expansion head teeth is encircled with PEX-a tubing in real expansion situation and active handle is expanded to its full openning
  • Secure Connection: Once the fitting is inserted into the expanded ring and pipe combination, the elastomeric properties of this PEX combination bring the expanded material back around the fitting to make a sealed, permanent and visually inspectable connection.
  • Applications: Plumbing, fire safety, radiant heating and cooling systems. Ideal for residential, commercial and industrial projects.

PEX-A Expansion Tool Kit with 1/2 in., 3/4 in. and 1 in. Expander Heads

IWS-1960R Auto Rotation Expansion Tool

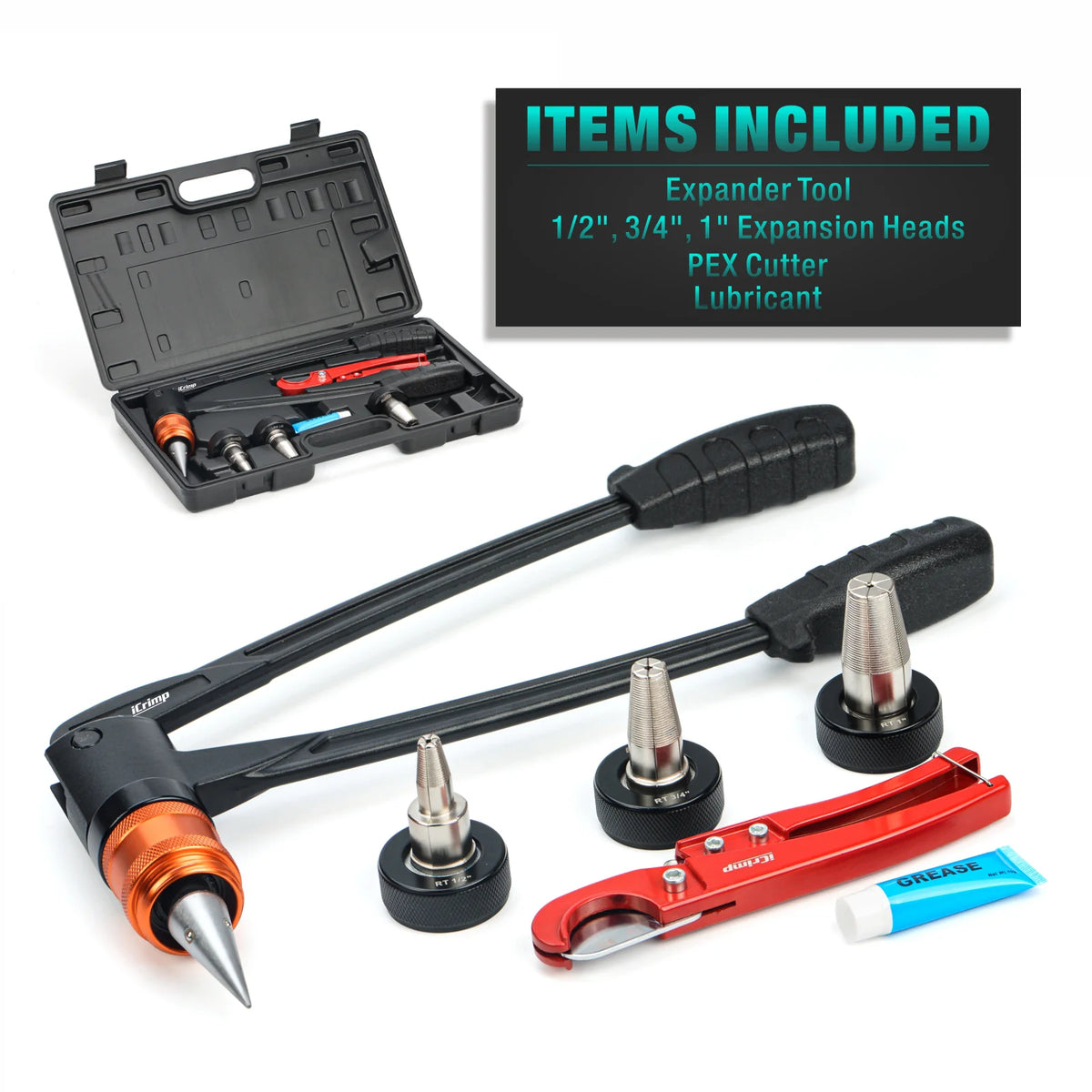

  • Kit includes convenient custom-molded carrying case, tool, three expander heads and grease
  • Expands type A PEX pipe for insertion of ASTM F1960 expansion-style fittings
  • Includes everything needed to make 1/2 in. - 1 in. PEX-a connections
  • Steel construction for superior reliability and strength
  • Metal frame and gear mechanisms ensure the utmost durability
  • Go/no-go gauges are never required
  • Compatible with most cold expansion-style tools



F1960 cold-expansion fittings make solid, permanent, manufactured connections without the need for torches, glues, solder, flux or gauges. The unique shape memory of crosslinked polyethylene (PEX-a) tubing forms a tight seal around the fitting, creating a strong, reliable connection.

General Connection Tips



  • If the fitting does not slide into the tubing all the way to the stop, immediately remove it from the tubing and expand the tubing one final time.
  • To avoid over-expanding the tubing, do not hold the tubing in the expanded position.
  • Experience, technique and weather conditions influence the actual number of expansions. Fewer expansions may be necessary under certain conditions. The correct number of expansions is the amount necessary for the tubing and the shoulder of the fitting to fit snugly together.

Auto Rotation, ProPEX Expansion

PEX Expansion Tool Set

- Meets ASTM F1960 Standard
- 1/2'', 3/4'', 1'' PEX-a Tubing Expansion

Auto Rotation

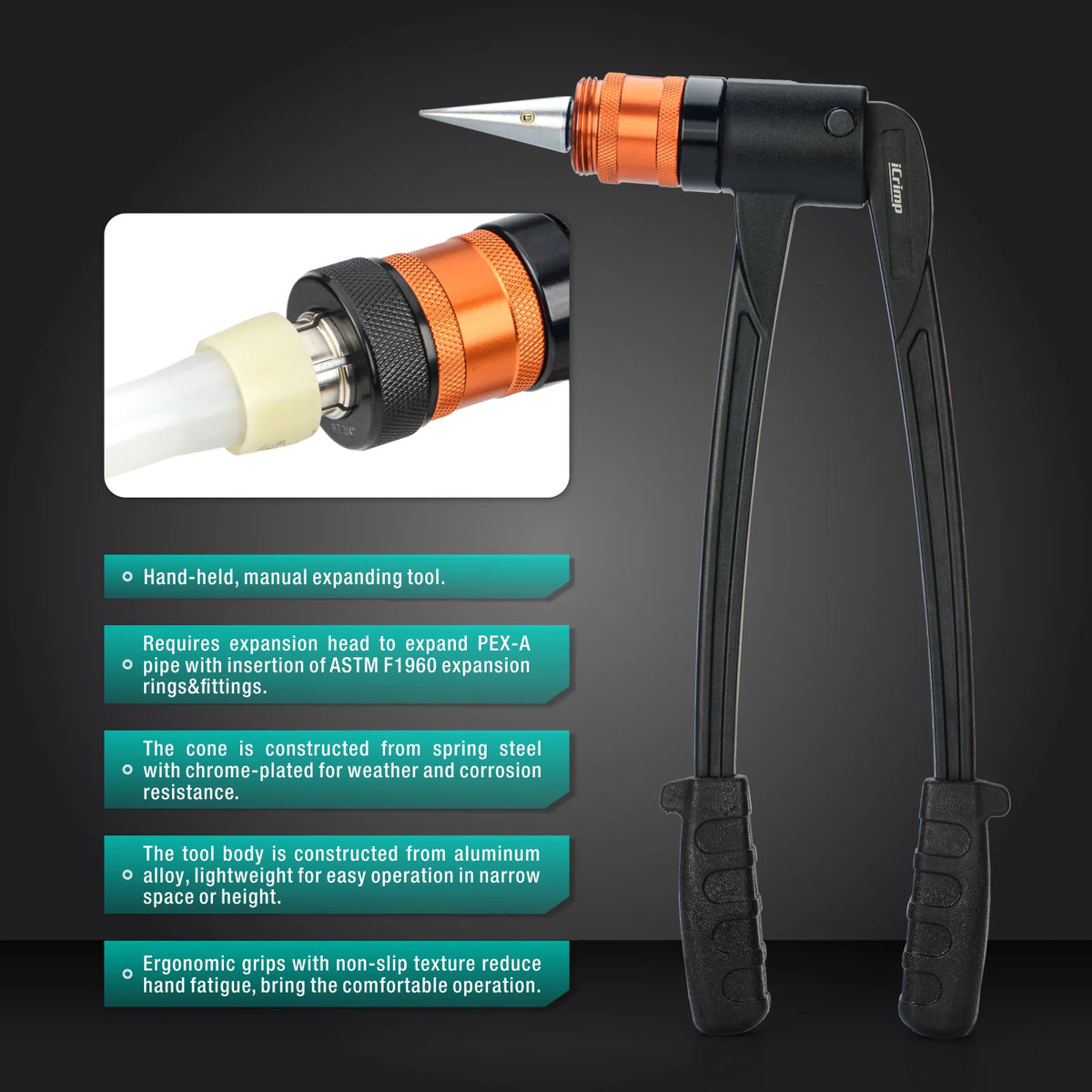

PEX Expansion Tool

- Designed exclusively for use within Type A PEX piping systems
- Auto Rotation for even expansions

1/2'', 3/4'', 1''

ProPEX Expansion Heads

Precision engineered for accurate expansion of PEX-a tubing for ProPEX fittings

Shear, Clean Cuts

PEX Cutter

Cuts up to 1 in. PEX-a tubing

Protect Cone Surface

Expander Cone Grease

Frequent lubrication of the tools significantly prolongs the life of the system

Professional PEX Expansion

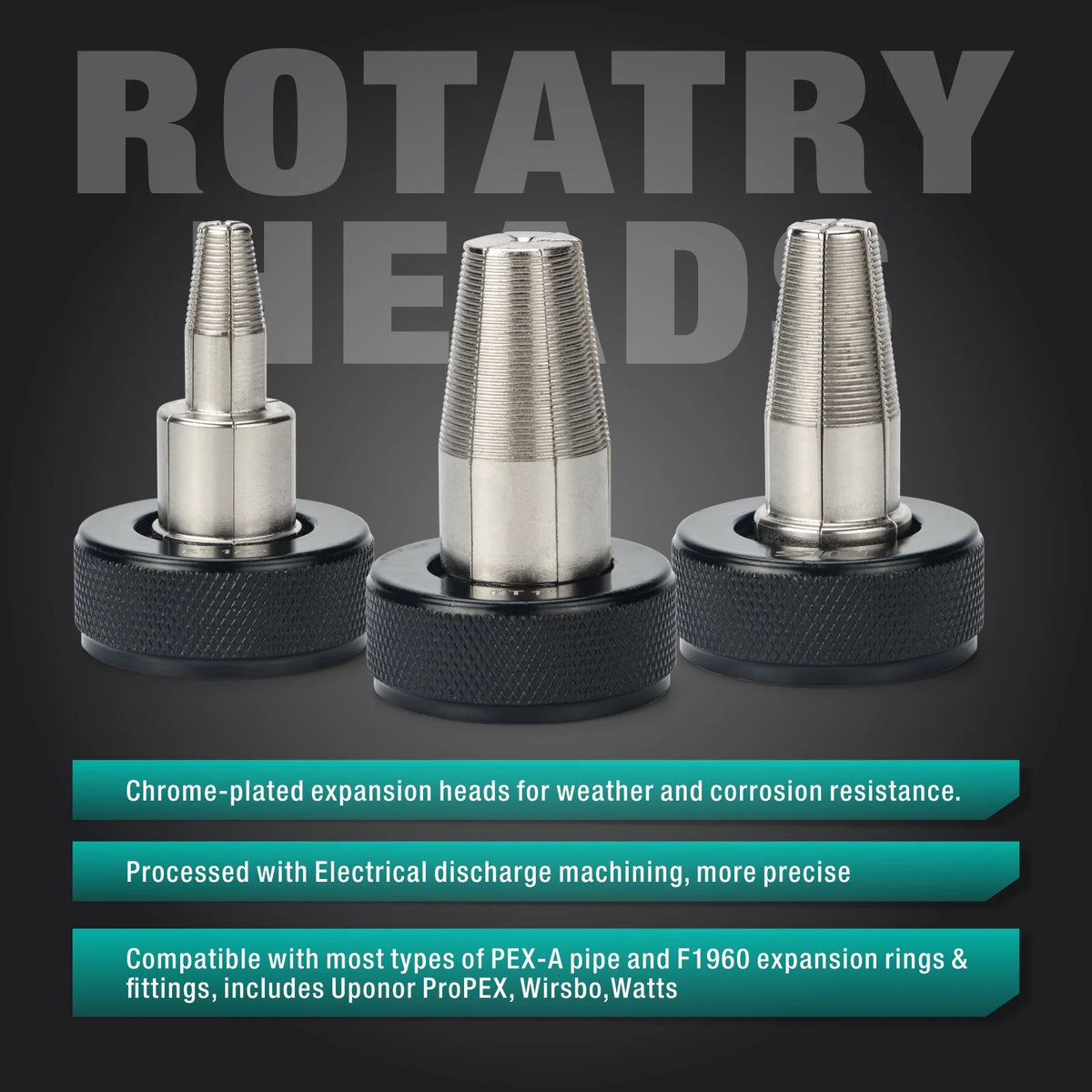

Auto Rotation Expansion Heads

Auto Rotation Expansion Heads

Featuring the auto-rotation interface for IWS-1960R PEX expansion tool. Made from high strength steel, the chrome plated segments and black oxide ring combine durability and weather resistance.

ASTM F1960 Standard

ASTM F1960 Standard

PEX-A expander tool kit includes hand tool and 1/2 In., 3/4 In. and 1 In. interchangeable heads in a plastic carrying case. Compatible with Uponor (Wirsbo) ProPEX piping systems. For use with cold expansion PEX-A pipe and sleeve system.

Making ProPEX Expansions

PEX Cutting

PEX Cutting

Cut off PEX-a tubing squarely

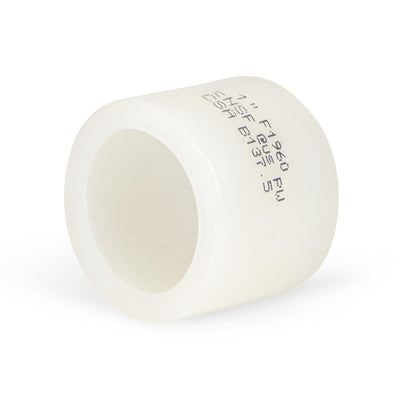

Expansion ring

Expansion Ring

Slide the expansion ring over end of tubing

Expansion

Expansion

Squeeze handles for several times, expansion head will rotate automatically

Connection

Connection

After the final expansion, immediately remove tool and insert in fitting

PEX-A Expansion Tool Kit with 1/2 in., 3/4 in. and 1 in. Expander Heads

IWS-1960R Auto Rotation Expansion Tool

  • Kit includes convenient custom-molded carrying case, expander tool, three expander heads, grease and PEX tubing cutter
  • Expands type A PEX pipe for insertion of ASTM F1960 expansion-style fittings
  • Includes everything needed to make 1/2 in. - 1 in. PEX-a connections
  • Steel construction for superior reliability and strength
  • Metal frame and gear mechanisms ensure the utmost durability
  • Go/no-go gauges are never required
  • Compatible with most cold expansion-style tools

F1960 cold-expansion fittings make solid, permanent, manufactured connections without the need for torches, glues, solder, flux or gauges. The unique shape memory of crosslinked polyethylene (PEX-a) tubing forms a tight seal around the fitting, creating a strong, reliable connection.

F1960 cold-expansion fittings make solid, permanent, manufactured connections without the need for torches, glues, solder, flux or gauges. The unique shape memory of crosslinked polyethylene (PEX-a) tubing forms a tight seal around the fitting, creating a strong, reliable connection.
