SN-2549 Ratcheting Wire Crimper for JST ZH 1.5mm,PH 2.0mm,XH 2.5mm, VH 3.96mm, Dupont 2.54mm Pitch Open Barrel Terminals

Original price $29.99
Original price $29.99 - Original price $29.99
Original price $29.99
Current price $20.99
$20.99 - $20.99
Current price $20.99

About this item

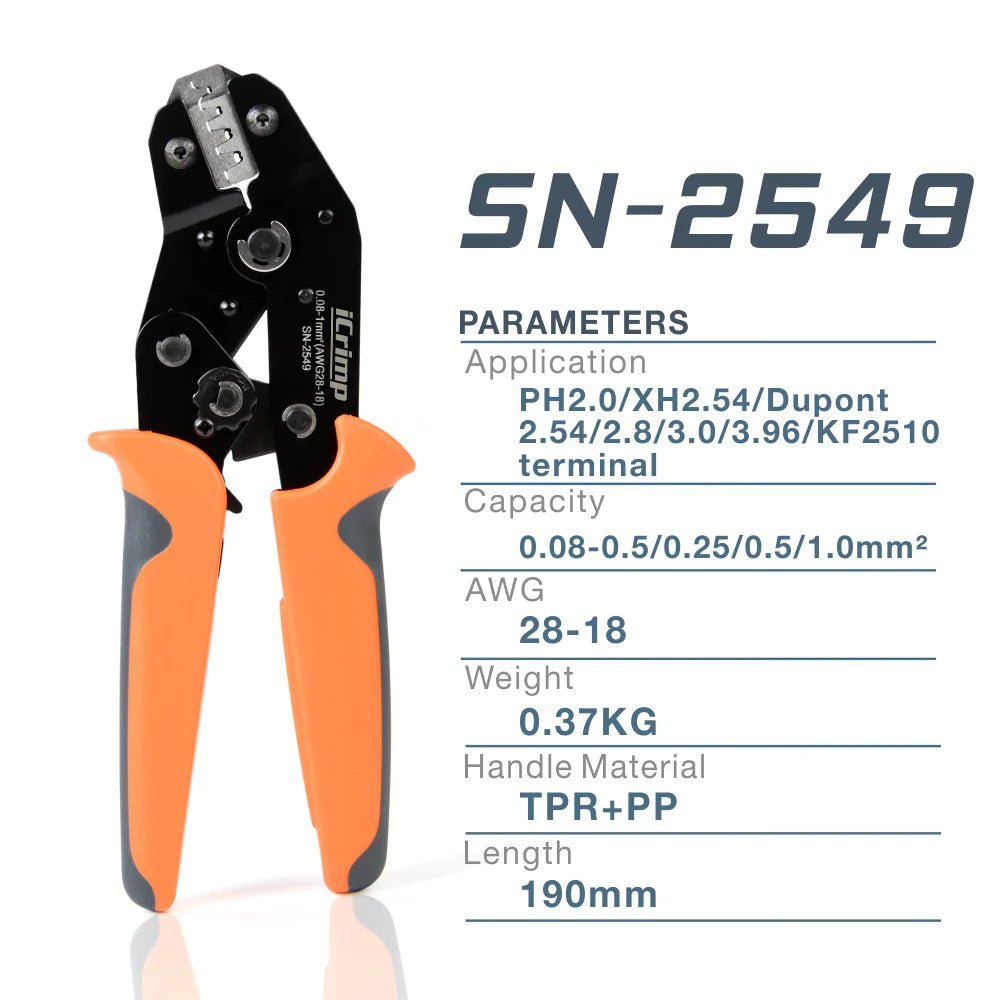

  • Purpose: SN-2549 Dupont ratcheting wire crimper is designed to crimp AWG28-18 uninsulated open barrel terminals such as JST, Dupont, Molex. A combination of SN-01BM & SN-28B wire crimper.

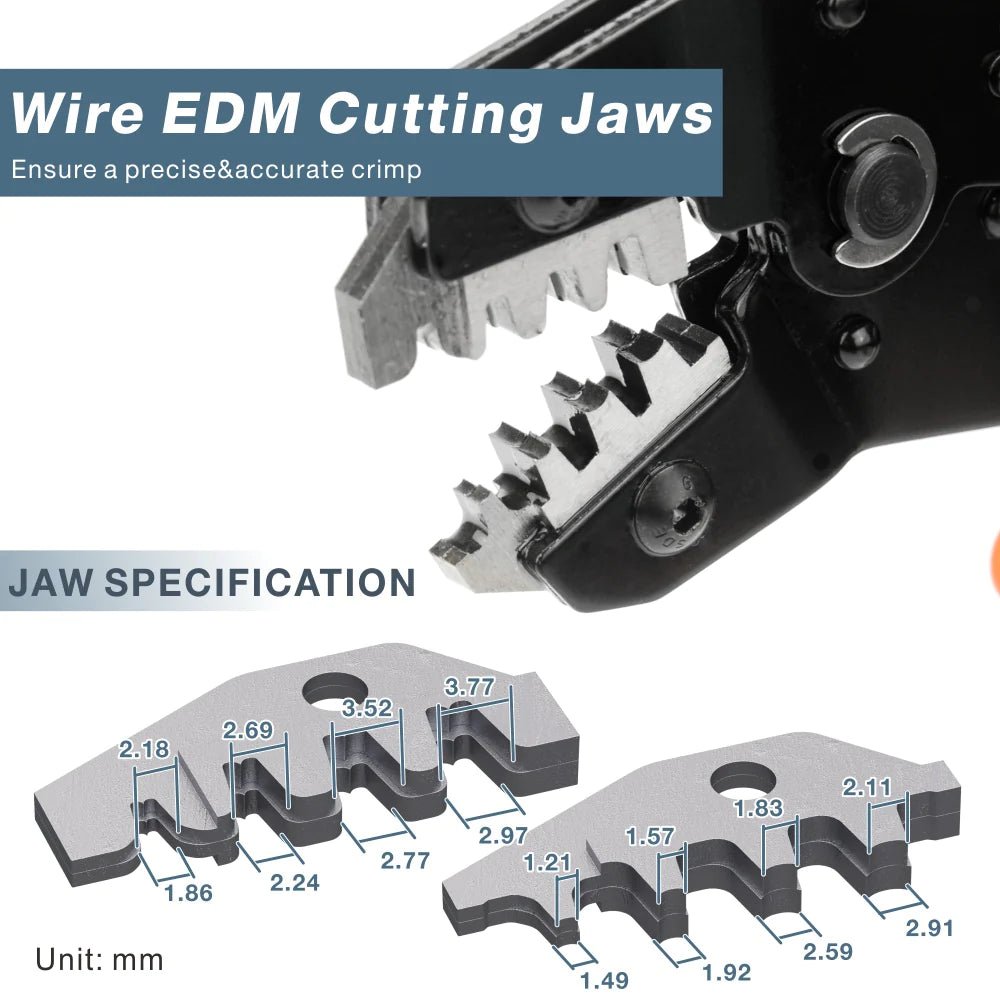

  • Crimp Jaws: High-precision ratchet mechanism for complete crimps. Parallel crimping performance for even crimps.

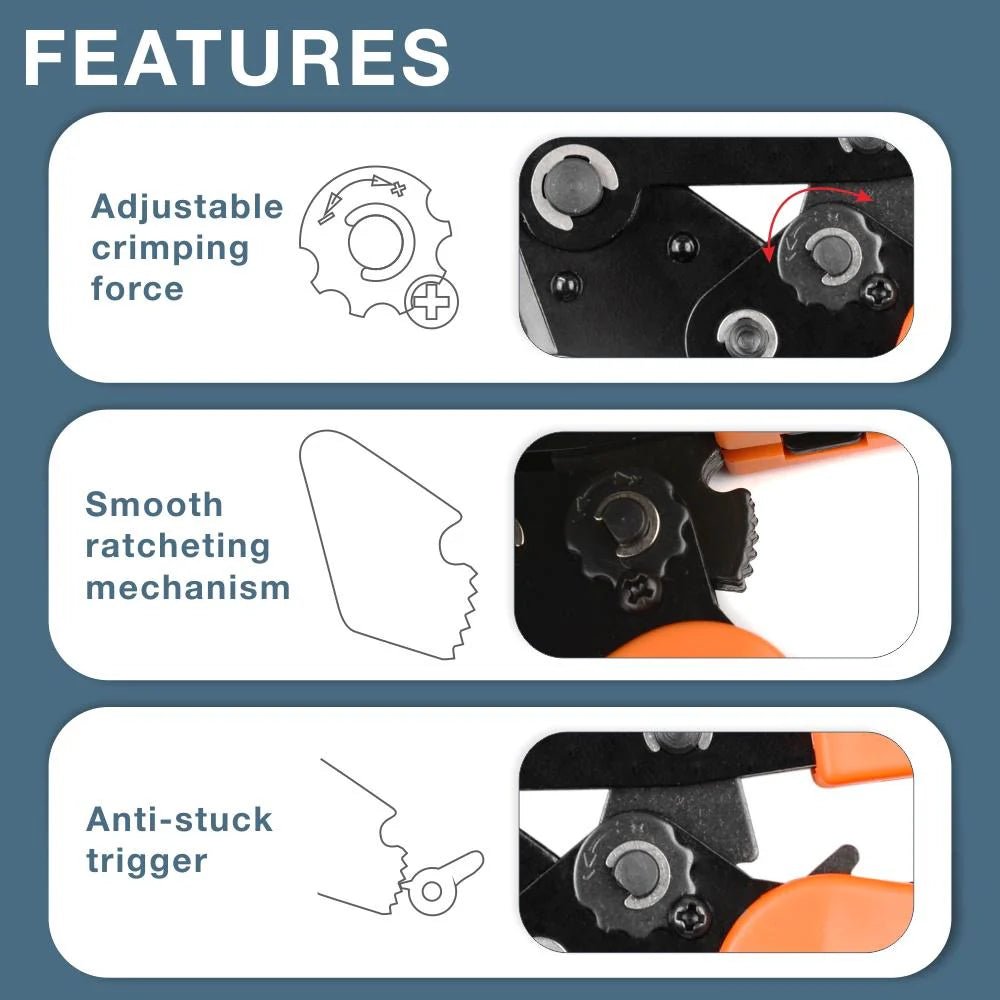

  • Ratcheting Mechanism: Ratcheting style crimpers ensure consistent crimping pressure as they must be cycled through their full range for the jaws to crimp and then release the terminal.
  • Applications: Used to connect electrical wires on rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and radio controlled servos.

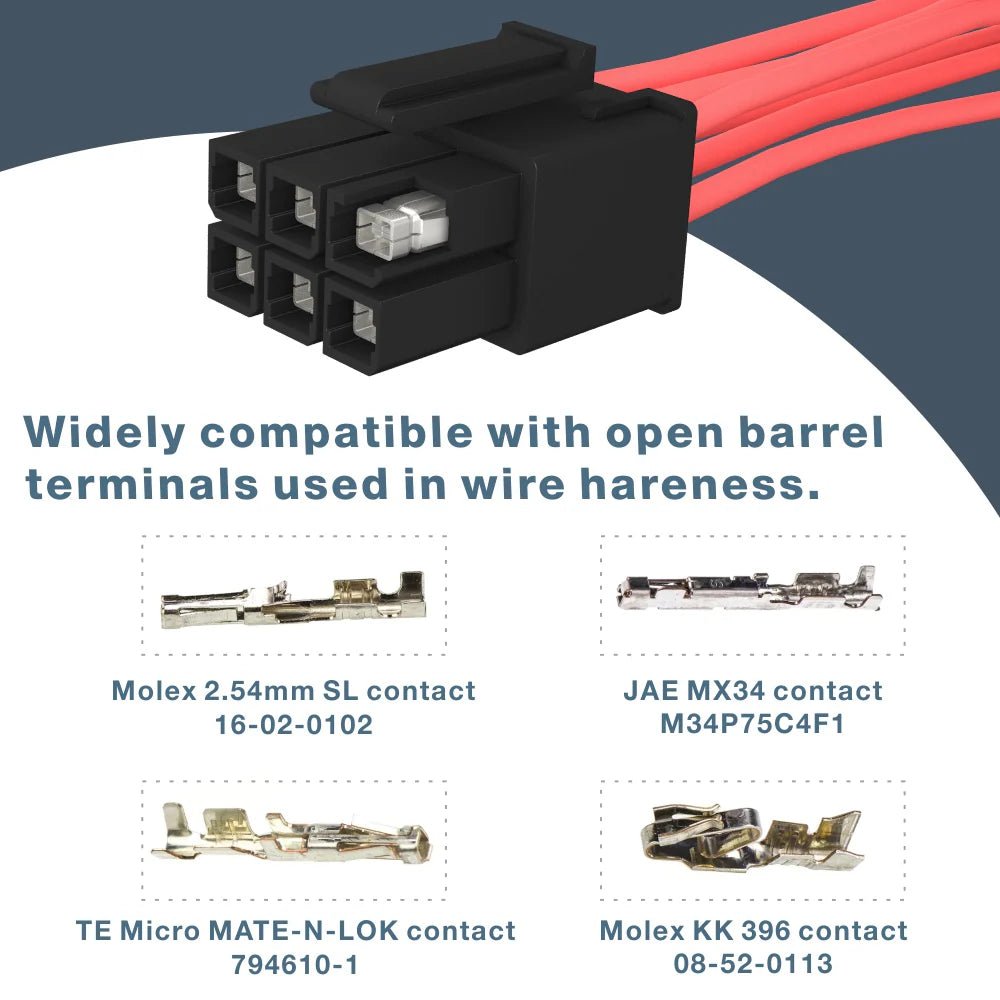

  • Capability: Capable of crimping AWG28-18(0.08-1.0mm²) open barrel connectors, typically 1.5mm, 2.0mm, 2.5mm, 2.54mm, 3.96mm pitch terminals from JST, Dupont, Molex.

Ratcheting Open Barrel Crimper

JST | Dupont | Molex | D-Sub | 2.50 mm | 2.54 mm | 3.96 mm

open-barrel-terminals.jpg__PID:fc9e972b-002f-4750-ba13-4867996d64ae

Open Barrel Terminals

The open barrel crimp tool is designed to crimp non-insulated, open barrel terminals, also known as OEM terminals. It has five crimp stations that roll the open barrel terminal tabs over the wire and insulation, crimping them to the terminal.
Before use, please make sure that wire size meets the standard provided by each connector maker and that the configuration and size of terminal is adaptable to the crimping dies.

Quick Guide

strip.jpg__PID:2f67507a-1348-4799-ad64-ae6b27ee7588

1. Strip the wire into certain length

slide-the-termianl.jpg__PID:002f6750-7a13-4867-996d-64ae6b27ee75

2. Slide the termianl & stripped wire into the crimp cavity

crimped.jpg__PID:88fc9e97-2b00-4f67-907a-134867996d64

3. Wire cord & insulation are crimped simultaneously

breadboards.jpg__PID:2288fc9e-972b-402f-a750-7a134867996d

Breadboards

quadcopter.jpg__PID:9e972b00-2f67-407a-9348-67996d64ae6b

Quadcopter

battery-balancer.jpg__PID:472288fc-9e97-4b00-af67-507a13486799

Battery Balancer

SN-2549 Open Barrel Terminal Crimping Tool

Applications

  • Rechargeable battery packs
  • Battery balancers
  • Battery eliminator circuits
  • Radio controlled servos
  • RGB LED decorative light strips
  • Seat wiring and actuation
  • Passenger service units
  • 3D Printer
  • Duet 2/ Duet 3

Applicable Chart

JST

  • VH 3.96mm Pitch 22-16AWG
  • RE 2.54mm Pitch 30-24AWG
  • EH 2.50mm Pitch 32-22AWG
  • XA 2.50mm Pitch 30-20AWG
  • XH 2.50mm Pitch 30-20AWG
  • PA 2.0mm Pitch 22AWG
  • PH 2.0mm Pitch 24AWG
  • ZH 1.5mm Pitch 26AWG

Dupont

  • 2.54mm Pitch

D-SUB Terminals

Why IWISS?

  • Founded in 2008 with production lines for cable and pipe tools
  • 85 global patents for designs and inventions
  • Various products with thousands of positive reviews
  • Best seller in electrical and piping industry
  • More than 12 overseas warehouses across the world
  • Implementing ISO 9001:2015 quality management system and 100% quality control inspection throughout production
  • Over 1.5 million end users employ iCrimp tools as their handy partner
  • Continuous market research in automotive, electrical, electronics and HVAC industries to pursue persistent innovation
  • Designed to conform to DIN, MIL, JIS, ASTM standards
