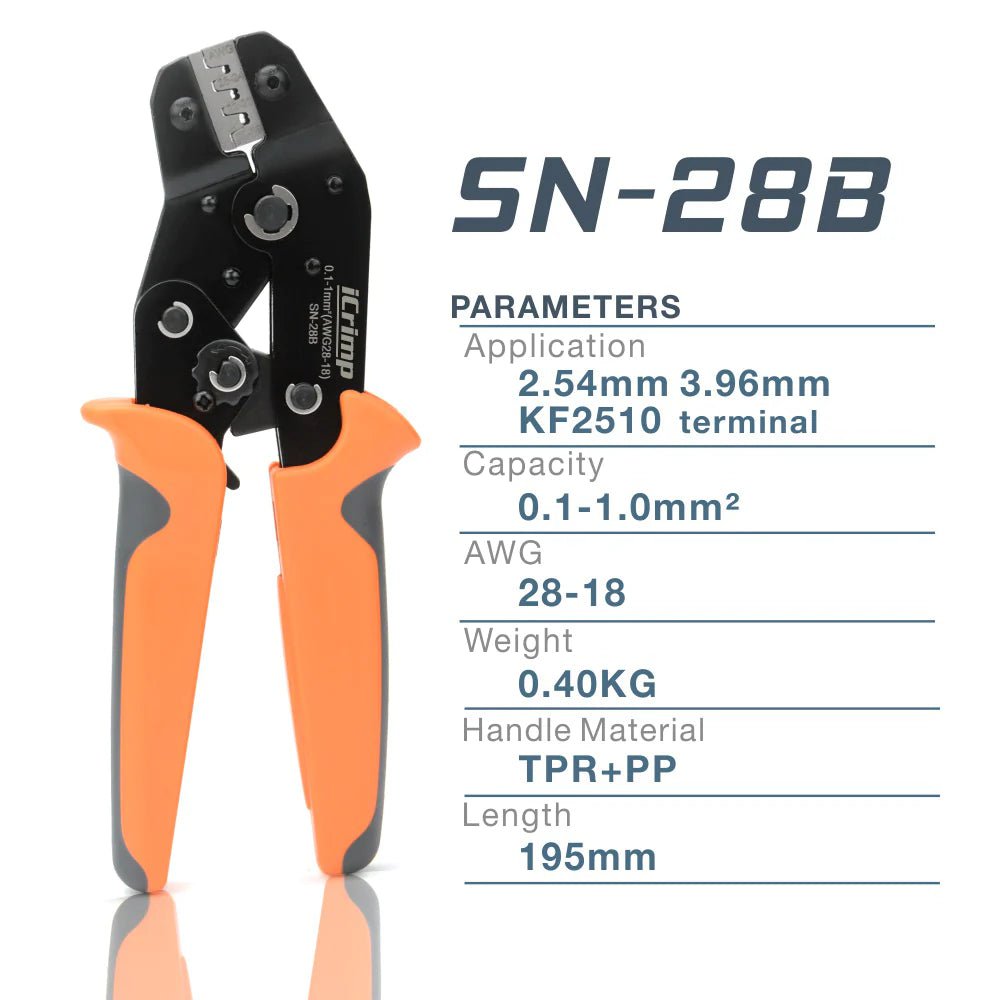

SN-28B Dupont Crimping Tool for 3.96mm, 2.54mm, 2.5mm Pitch Dupont, JST XH VH Connectors, AWG28-18

Original price $29.99
Original price $29.99 - Original price $29.99
Original price $29.99
Current price $20.99
$20.99 - $20.99
Current price $20.99

About this item

  • Purpose: SN-28B open barrel crimper tool is designed to crimp non-insulated open barrel, OEM-style terminals. Perfect for servo lead connectors and some other RC crimp connectors.
  • Capability: 0.1-1.0m㎡, AWG 28-18. Suitable for 2.5mm, 2.54mm, 3.96mm pitch terminals, typically JST VH, XH, NH pins and Dupont 2.54mm connectors.
  • Applications: Used to connect electrical wires on rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and radio controlled servos.

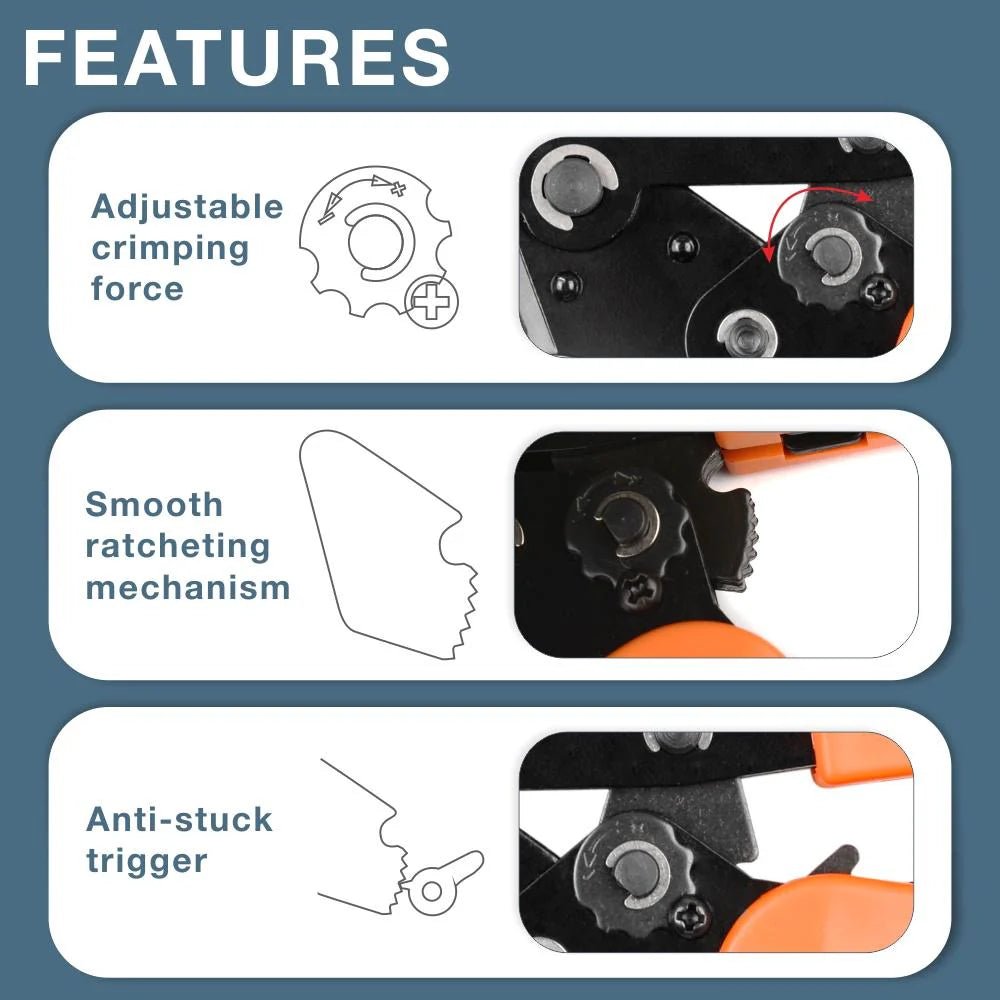

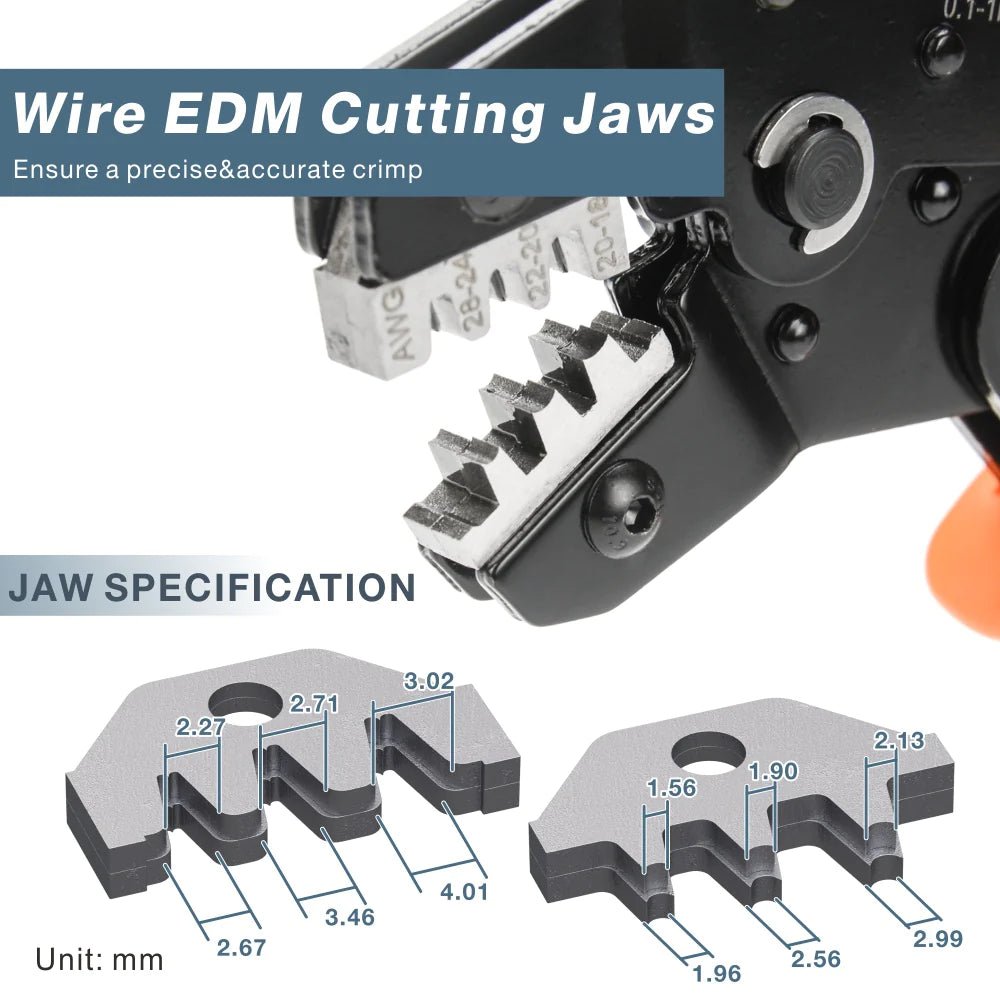

  • Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism). Ratcheting crimping tool with a 20° angled head. Guaranteed optimal, solderless electrical connections.
  • VH 3.96mm Pitch 22-16AWG; RE 2.54mm Pitch 30-24AWG; EH 2.50mm Pitch 32-22AWG; XA 2.50mm Pitch 30-20AWG; XH 2.5mm Pitch 30-20AWG

iCrimp SN-28B Dupont, JST Crimping Tool

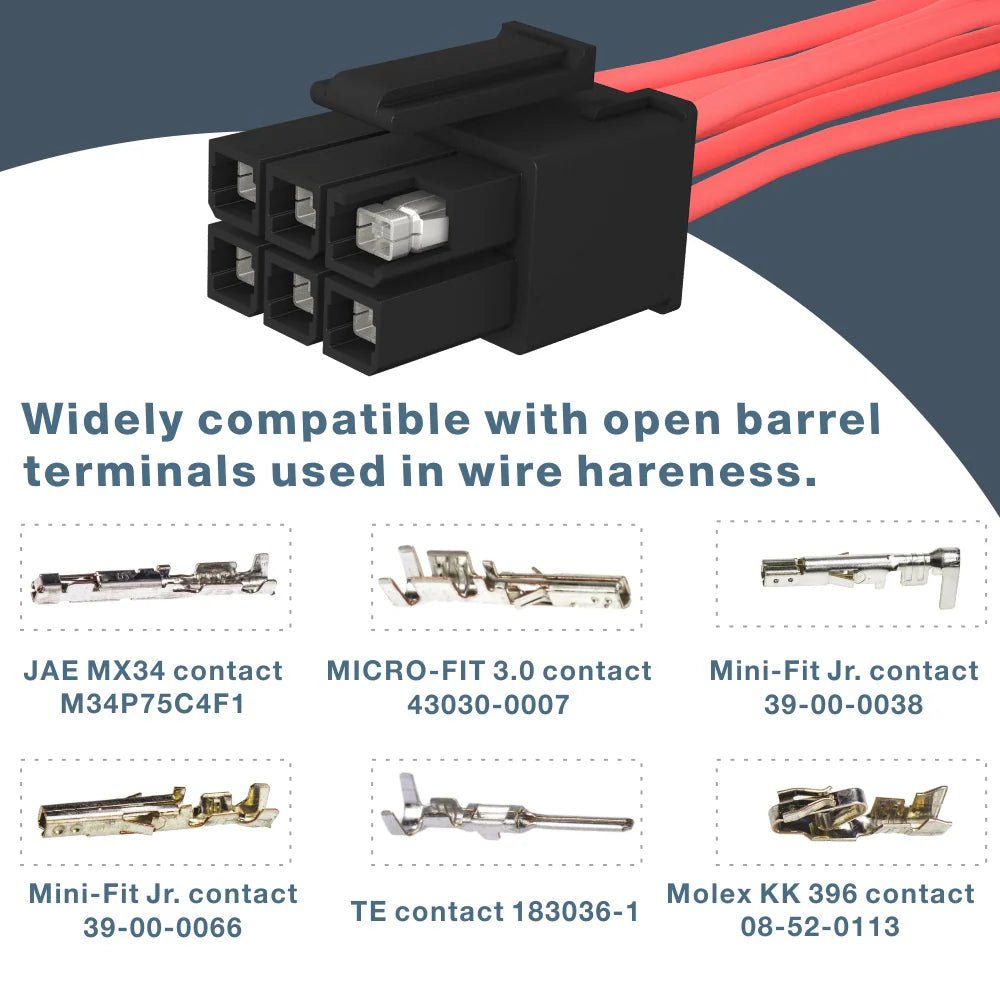

SN-28B open barrel crimper tool is designed to crimp non-insulated open barrel, OEM-style terminals. Perfect for servo lead connectors and some other RC crimp connectors. This crimper features three (3) double crimp stations that simultaneously crimp the wire and insulation all in one action. To ensure a perfect crimp, the open barrel crimper will not disengage until a uniform crimp is completed or the quick release lever is trigger.

Ratcheting Open Barrel Crimper

JST | Dupont | Molex | D-Sub

2.50 mm | 2.54 mm | 3.96 mm

jst-connectors.jpg__PID:d0761407-d4af-4c3e-a47f-9c8e5b12acb9

JST Connectors

Used in many types of products and commonly used by electronics hobbyists and consumer products for rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and radio controlled servos.

Dupont Connectors

Dupont 2.54 mm pitch wire-to-wire connector in a complete package including the male housing, female/receptacle housing, female terminal and male terminal. Dupont 2.54 mm Pitch connector delivers 3.0A current for AWG #22 to #28 suitable for either power transmission systems or chassis wiring.

dupont-connnectors.jpg__PID:d3d07614-07d4-4f4c-bea4-7f9c8e5b12ac

Quick Guide

strip-the-wire.jpg__PID:d4af4c3e-a47f-4c8e-9b12-acb93bba46b8

1. Strip the wire into certain length.

slide-the-terminal.jpg__PID:07d4af4c-3ea4-4f9c-8e5b-12acb93bba46

2. Slide the terminal & stripped wire into the crimp cavity.

crimped.jpg__PID:14d3d076-1407-44af-8c3e-a47f9c8e5b12

3. Wire cord & insulation are crimped simultaneously.

iCrimp SN-28B Dupont, JST Crimping Tool

SN-28B open barrel crimper tool is designed to crimp non-insulated open barrel, OEM-style terminals. Perfect for servo lead connectors and some other RC crimp connectors. This crimper features three (3) double crimp stations that simultaneously crimp the wire and insulation all in one action. To ensure a perfect crimp, the open barrel crimper will not disengage until a uniform crimp is completed or the quick release lever is trigger.

Applicable Chart

JST Series

  • VH 3.96mm Pitch 22-16AWG
  • RE 2.54mm Pitch 30-24AWG
  • EH 2.50mm Pitch 32-22AWG
  • XA 2.50mm Pitch 30-20AWG
  • XH 2.50mm Pitch 30-20AWG

Dupont

  • 2.54mm Pitch

Application

  • Ideal for servo, drone, FPV, automotive & electrical wiring, SATA
  • High quality ratcheting mechanism provides a stable platform for crimping
  • Rechargeable battery packs
  • Battery balancers
  • Battery eliminator circuits
  • Radio controlled servos
  • RGB LED decorative light strips
  • Seat wiring and actuation
  • Passenger service units
  • IFE (in-flight entertainment)
  • Electronic window shutters
