What is the Difference Between Compression and Press-Fit?

Considering the fitting method, choosing the right one is vital to avoid loss of efficacy, toughness, and easy installation in plumbing. Press-fit connections and compression fittings are two popular methods for creating secure, leak-proof joints, but they differ in installation, application, and long-term performance. This article will explore the key differences between compression and press fittings and help you determine which is best suited for your plumbing projects.

Compression fittings are mechanical fittings that join pipes using a compression nut, compression ring, or olive, and a fitting body. Compression of the ring at complete nut tightness surrounds the pipe, creating a very tight seal without solder or heat.

• Easy Installations

Compression fitting tools, like adjustable wrenches, are essential for simple installation in DIY plumbing projects.

• No Special Equipment Needed

Compression fittings don’t require a dedicated press tool, reducing initial costs.

• Reusable and Adjustable

When Maintenance or Adjustments are anticipated, compression fittings can be disassembled and reassembled.

• Versatile

One reason compression fittings are ideal is that they can be used with copper, plastic, and PEX pipes.

• Labor-Intensive for Large Installations

Installation is simple, but on large projects, it can be a bit labor-intensive to tighten each fitting by hand.

• Leak Possibilities

Compression fittings may loosen with time and leak unless tightened well.

• Not Ideal for High-Pressure Systems

Compression fittings are reliable connections, but are probably not the best choice for replacement pipe connections on high-pressure systems.

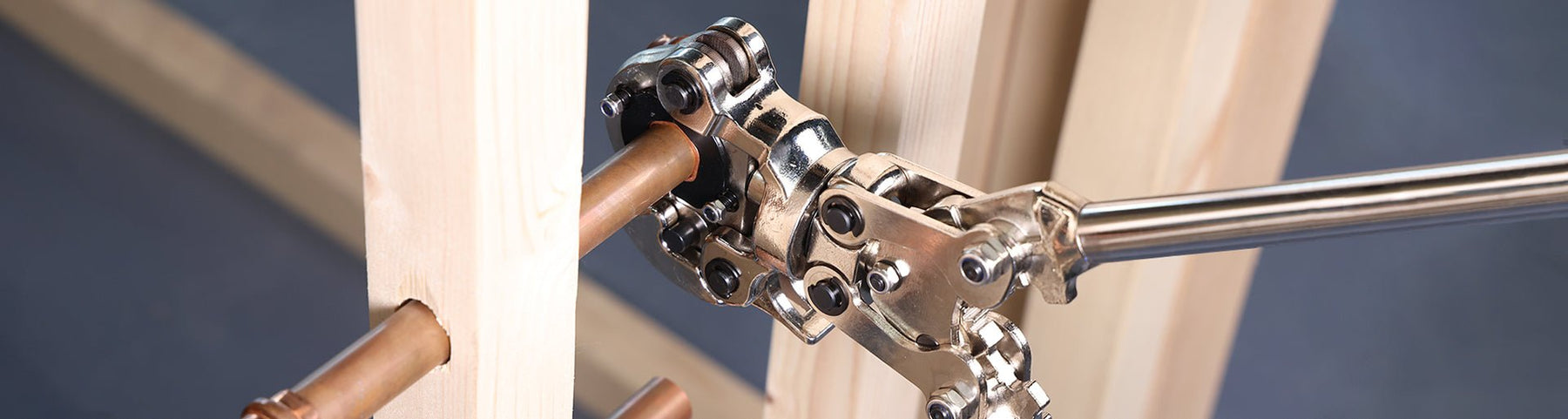

Press-fit fittings are crimped and permanently joined to pipes by a hydraulic or IWS-1632AF manual press tool. These fittings typically create an O-ring seal to prevent leaks when pressed.

• Speedy Installation

Press-fit fittings require much less labor than compression fittings because they can be installed in seconds.

• Flame-free and Safe

The flame-free operation of press-fit technology makes installations safer by eliminating the need for open flames in enclosed areas.

• Reliable and Leak-proof

The crimping action delivers exceptional reliability, complete leak resistance, and pressure stability.

• Suitable for High-Pressure Systems

For their strength and durability, press-fit fittings are a preferred choice for high-pressure plumbing systems and HVAC applications.

• Minimal Maintenance

Press-fit connections require minimal upkeep during service life because they require no ongoing maintenance.

Installation requires a press tool, which adds an initial cost for anyone who does not already have one.

• Requires a Press Tool

Installation requires a press tool, which adds an initial cost for anyone who does not already have one.

• Not Easily Adjustable

The fixative nature of press-fit connections makes them non-adjustable and non-reusable after crimping, as they become permanent attachments.

• Costly

Although press-fit fittings are initially more expensive than compression fittings, users find their longevity and operational efficiency worthwhile.

These are the primary distinctions that separate compression from press-fit fittings:

• Installation

Compression fittings have simple installation procedures that require only wrenches. Installing press-fit fittings requires a professional press tool. The installation process for compression fittings remains simple enough for DIY purposes compared to press-fit fittings.

• Special Tool

Compression fittings require only a minimal investment in tools. Investing in a press tool becomes necessary to install press-fit fittings.

• Speed

Installing press-fit joints moves more quickly than compression-fitting setups on large-scale projects. While operating at high speed, the crimping procedure completes quickly. Tightening compression fittings does not take much time, but the time required accumulates significantly, especially on large projects.

• Reliability

Strong reliability can be achieved with both fitting types as long as they are correctly installed. A controlled crimping process gives press-fit connections their reputation for greater consistency than compression fittings. A leak occurs if you tighten compression fittings beyond what is required or if you do not tighten them enough.

• Accessibility

Compression fittings provide better accessibility because their components enable greater flexibility during maintenance, repairs, and modifications. Press-fit connections maintain their permanent status because they resist easy disassembly. Compression fittings provide one of their main benefits when there is a potential need to support future access to the system.

• Cost

The price of compression fittings is lower than that of press-fit fittings. The combined cost of compression fittings and labor, which increases installation time, comes to a similar total.

• Applications

Compression fittings provide a union between water lines and appliances and serve several gas line functions when local codes allow utilization. The flexibility of press-fit fittings makes them suitable for various plumbing tasks, including water supply and heating systems, and select gas system applications.

Multiple factors should guide the decision between compression and press-fit fittings.

• The size of the Project

DIY small-scale projects require compression fittings because they offer better value through affordable tooling costs. Speedy press-fit operations reduce staffing costs and total project duration when handling large projects.

• The Skill level

Personal DIYers should choose compression fittings because they offer a simpler installation process. A person needs training and familiarity with press tools to execute press fittings.

• Accessibility

Future access to the connection requires that compression fittings be chosen due to their better accessibility.

• Budget

Budget planning should include the cost of fittings, as well as tool expenses. It is necessary to determine the cost of purchasing a press tool using the press-fit method.

• Application

Ensure the selected fitting meets the application requirements and complies with local plumbing regulations.

Read more: iCrimp Copper Pipe Press Tool Review

Compression, together with press-fit fittings, each has unique advantages and appropriate applications. Compression fittings offer flexibility and cost savings for small projects, but press-fit technology provides a long-lasting, time-efficient solution for larger applications. Your plumbing setup seeks an upgrade through high-quality fittings. Discover the entire collection of press tools and fittings from iCrimp to help you choose the ideal solutions for your plumbing needs.
