IWE-16 Quadro 4-in-1 Wire Stripper for 20–10 AWG (0.5–6 mm²) & Ø8–13 mm Cables

Sold out
$29.99 - $29.99
$29.99
$29.99 - $29.99
$29.99
Selected configuration IWE-16

Check the model, size and included items. Different options may be tools, kits or replacement parts.

US warehouse fulfillment is available for eligible items. Check shipping options for your destination; dispatch time is not delivery time.

Shipping & delivery before you buy

Add your tools to the cart, then estimate shipping with your country, state and ZIP/postal code. Available delivery options depend on the items and destination. Need a tool for a scheduled job? Email us with the model and ZIP code to check dispatch and delivery timing before ordering.

Shipping details

Need help choosing the right tool?Returns & warranty terms

About this item

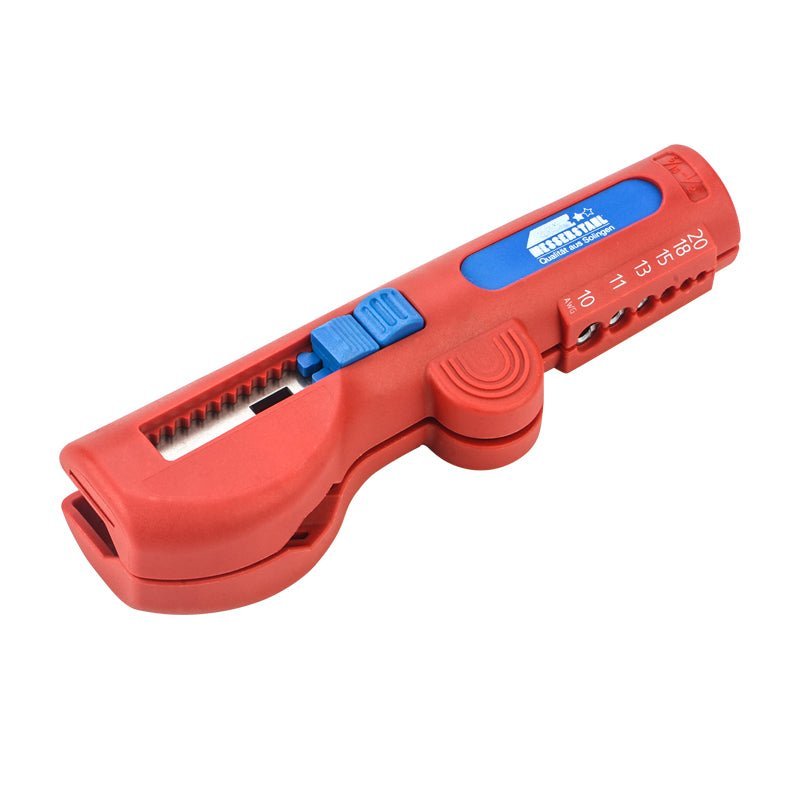

The IWISS IWE-16 Quadro combines four cable preparation functions in one compact tool: circular cutting, longitudinal cutting, conductor stripping and cutting. Designed for round installation cables with outside diameters of Ø8–13 mm, it also strips individual conductors from 20–10 AWG (0.5–6 mm²).

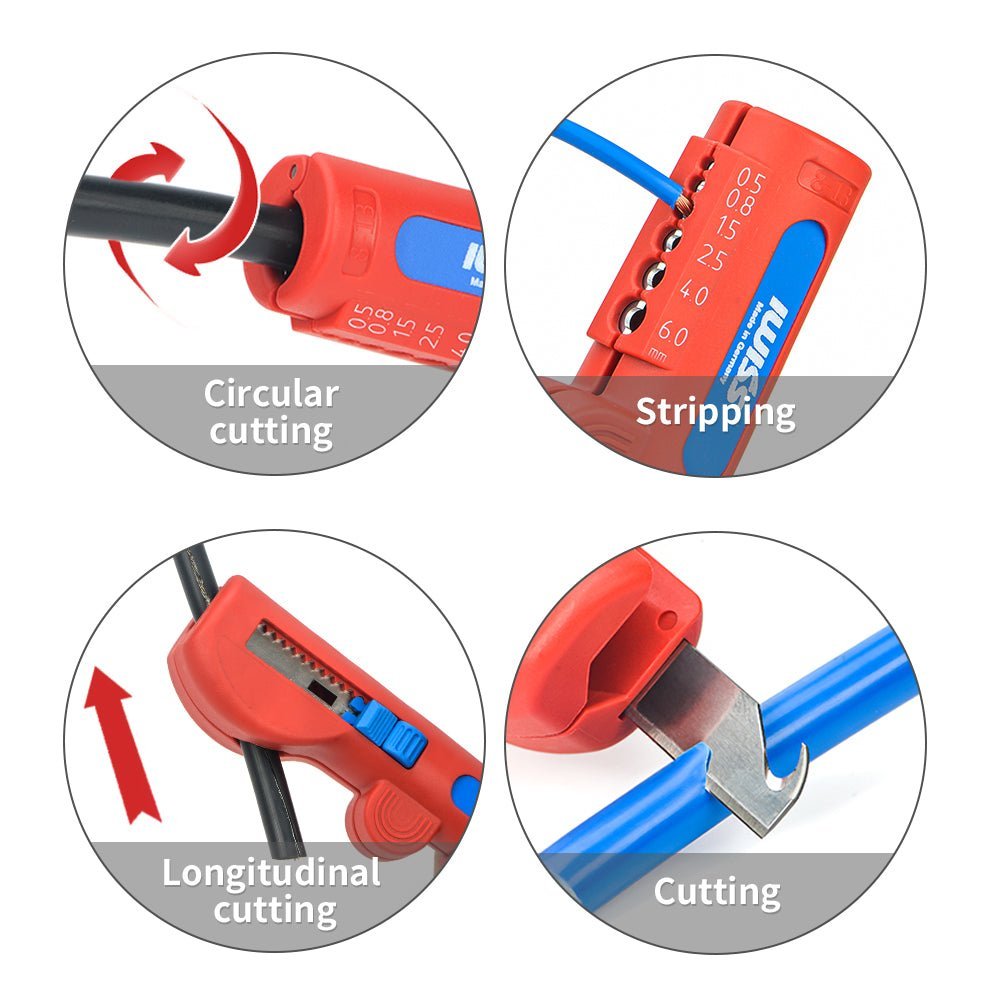

  • Four Functions in One Tool: Make circular and longitudinal sheath cuts, strip individual conductors and perform cutting tasks without switching between several tools.

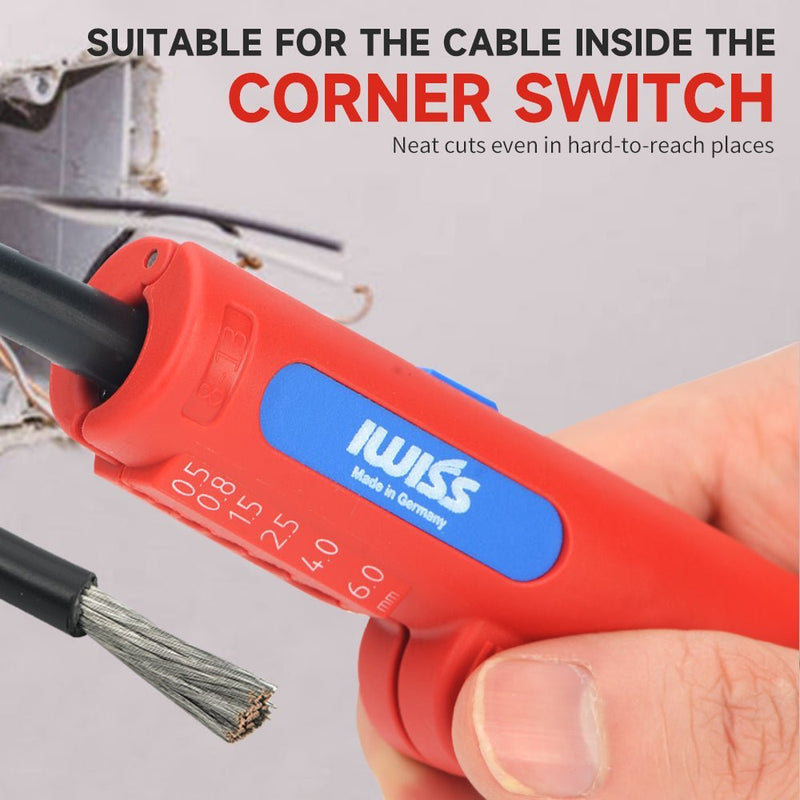

  • For Round Installation Cables: Suitable for round cables and damp-room installation cables with outside diameters from Ø8 to 13 mm, including compatible NYM cable sizes such as 3 × 1.5 to 5 × 2.5 mm².
  • 20–10 AWG Conductor Stripping: Prepare individual conductors from 0.5 to 6 mm². The conductor stripping range and the cable outside-diameter range describe separate functions.

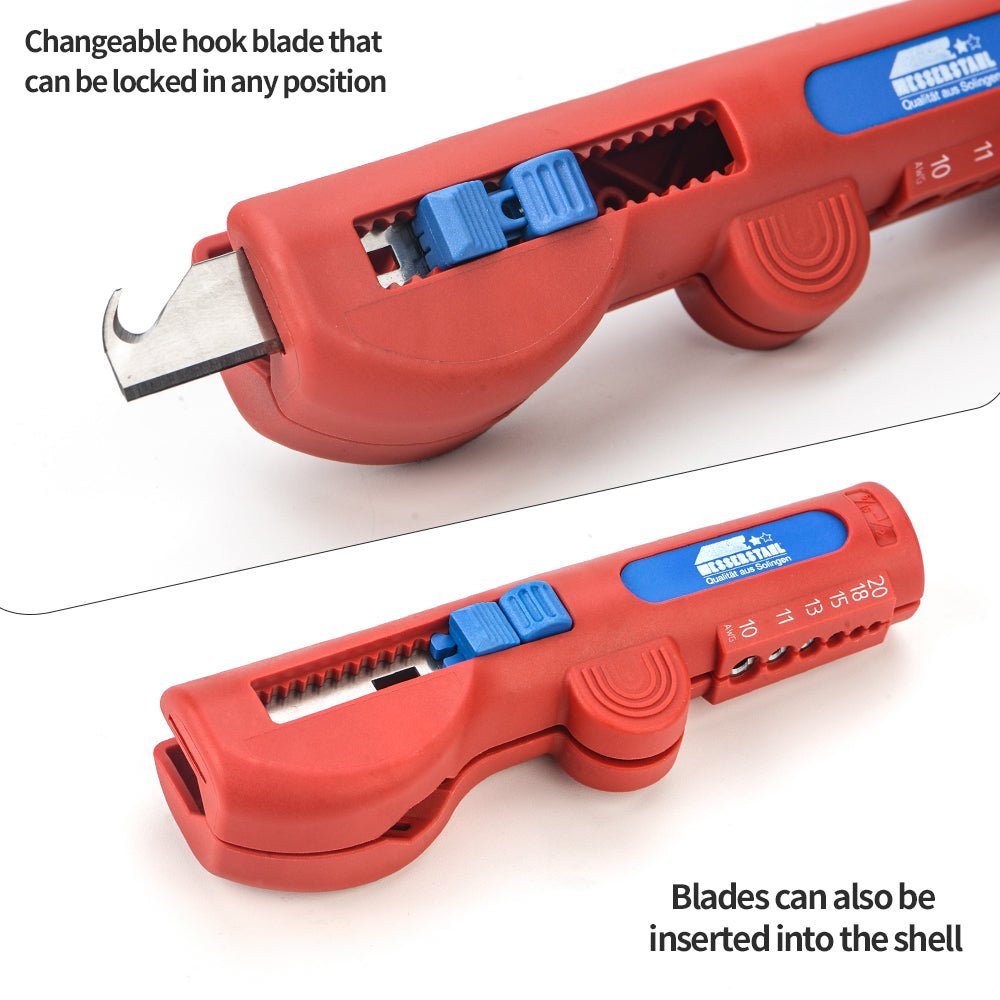

  • Controlled Handling: A non-slip handle design and blade arrangement for longitudinal cuts help provide a secure grip during everyday cable preparation.

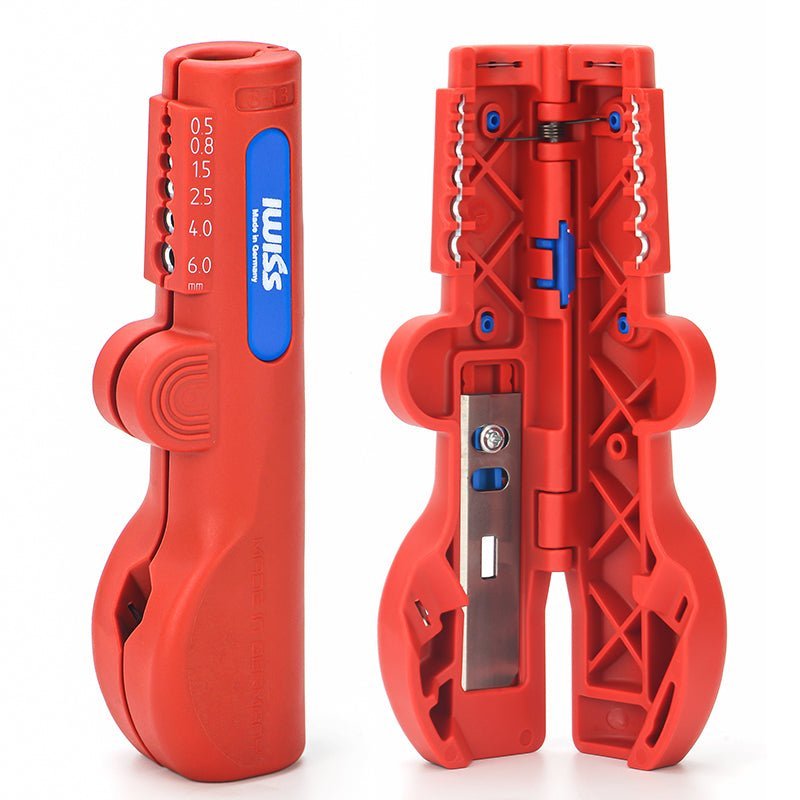

  • Compact, Durable Design: At 125 mm long and 53 g, the tool is convenient to carry. A glass-fibre-reinforced polyamide body and knife-steel blades support repeated use.

Specifications

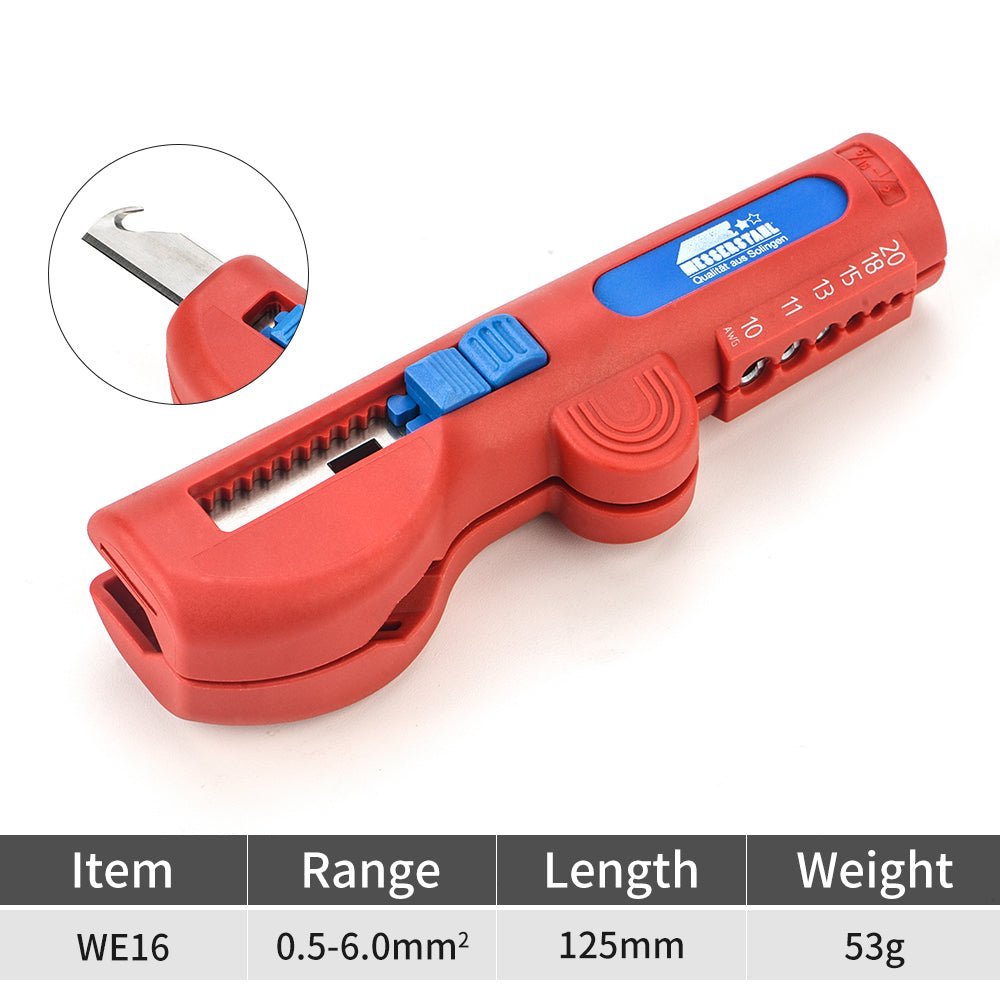

Model IWE-16 Quadro
Functions Circular cutting, longitudinal cutting, conductor stripping and cutting
Conductor stripping range 0.5–6 mm² (20–10 AWG)
Round cable outside diameter Ø8–13 mm
Typical applications Round installation cables and compatible NYM cables
Handle Non-slip design
Body material Glass-fibre-reinforced polyamide
Blade material Knife steel
Overall length 125 mm
Weight 53 g

Choose the right size

Check the complete cable's outside diameter for sheath removal (Ø8–13 mm), and the individual conductor's cross-sectional area for insulation stripping (0.5–6 mm²). Select the appropriate cutting or stripping function for the task and inspect the first prepared cable before continuing.

Know your tool. Choose with confidence.

Specialists in connection tools

Part of the IWISS family, iCrimp focuses on cable and pipe connection tools, backed by in-house design and manufacturing expertise.

Meet iCrimp

Get help matching your application

Send your terminal or fitting part number, size and a photo. Our team can help you check the tool selection before you order.

Email product support

Clear support after purchase

Find shipping information, return conditions and warranty terms before buying. Keep your order number and tool model for support.

Returns & warranty terms · Shipping details
Design standards & application compatibility

Check the exact model, connection type and applicable standard before ordering. A standard referenced in a product description is not, by itself, evidence of third-party certification. Ask us for model-specific documentation if your project requires it.

Design references are not third-party product certifications. Use the model specifications and the fitting or terminal manufacturer's instructions to confirm compatibility.

How manufacturing supports reliability

IWISS manufacturing capabilities include precision machining, heat treatment, assembly and quality inspection, with dimensional measurement and tensile-testing equipment. The inspection method and acceptance criteria depend on the tool and connection application.

Ask us about the specifications or supporting documentation for your model.

Manufacturing & innovation
Need technical documents?

For instructions, compatibility details or available test documentation, email the model number and your application to sales@iwiss.com.
