IWE-300 Automatic Wire Stripper & Ferrule Crimper for 20–10 AWG (0.5–6 mm²)

Sold out
$65.99 - $65.99
$65.99
$65.99 - $65.99
$65.99
Selected configuration IWE-300

Check the model, size and included items. Different options may be tools, kits or replacement parts.

US warehouse fulfillment is available for eligible items. Check shipping options for your destination; dispatch time is not delivery time.

Shipping & delivery before you buy

Add your tools to the cart, then estimate shipping with your country, state and ZIP/postal code. Available delivery options depend on the items and destination. Need a tool for a scheduled job? Email us with the model and ZIP code to check dispatch and delivery timing before ordering.

Shipping details

Need help choosing the right tool?Returns & warranty terms

About this item

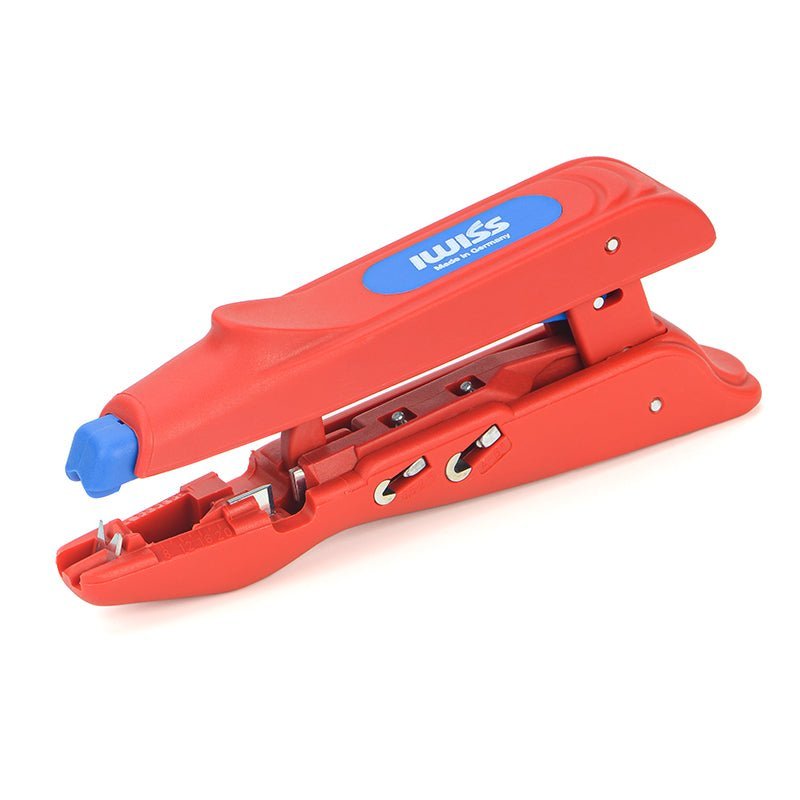

The IWISS IWE-300 combines automatic wire stripping, ferrule crimping and wire cutting in one compact tool. Prepare conductors from 20–10 AWG (0.5–6 mm²), then use the appropriate crimping position to secure a compatible wire-end ferrule without switching tools.

  • Strip and Crimp with One Tool: Combines insulation removal and wire-end ferrule crimping for a convenient wire preparation workflow.

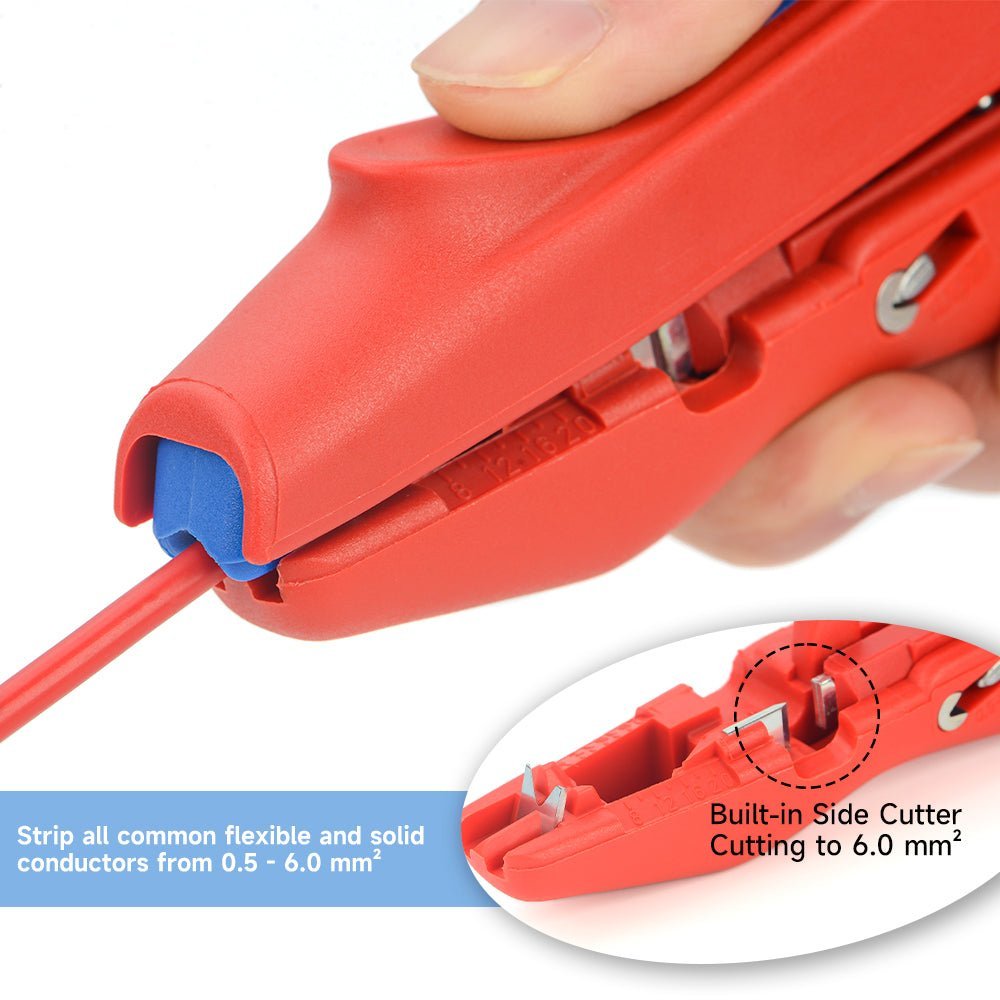

  • Automatic 20–10 AWG Stripping: Strips conductor insulation across a 0.5–6 mm² range, with automatic stripping action designed to help protect the inner conductor.

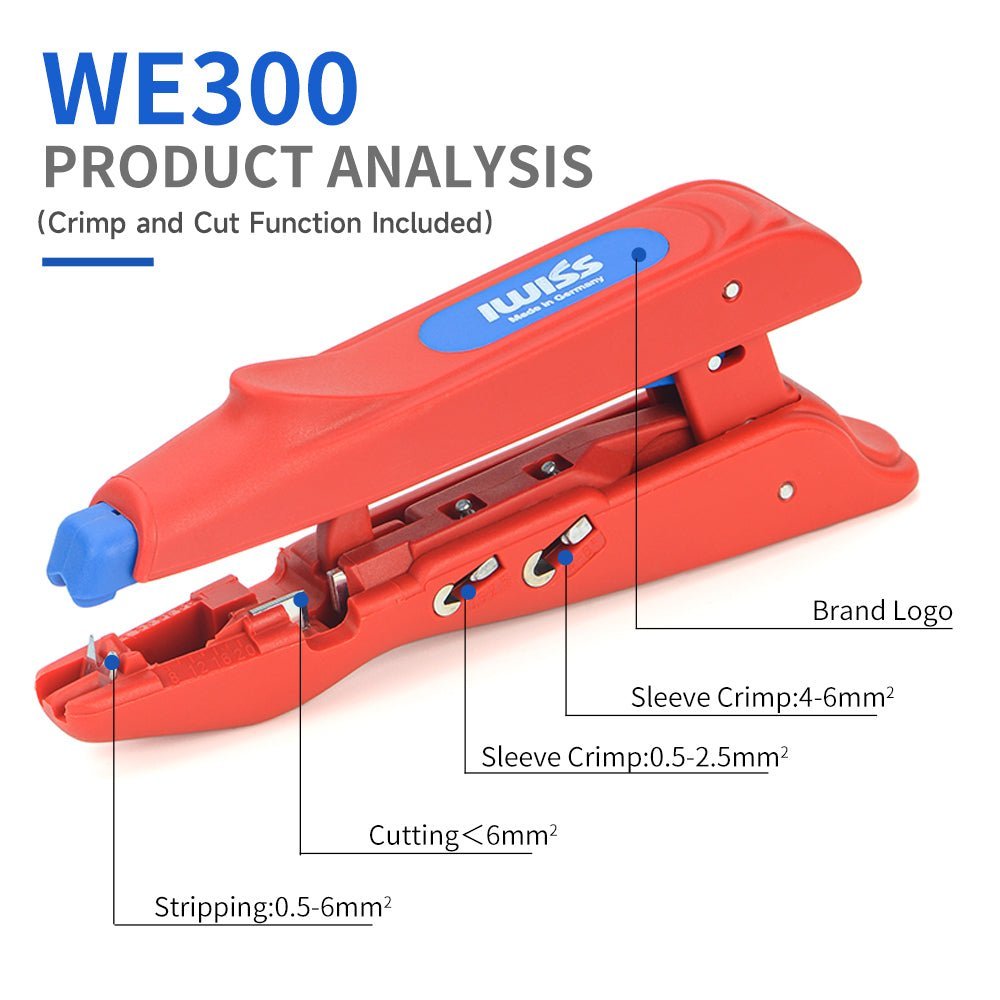

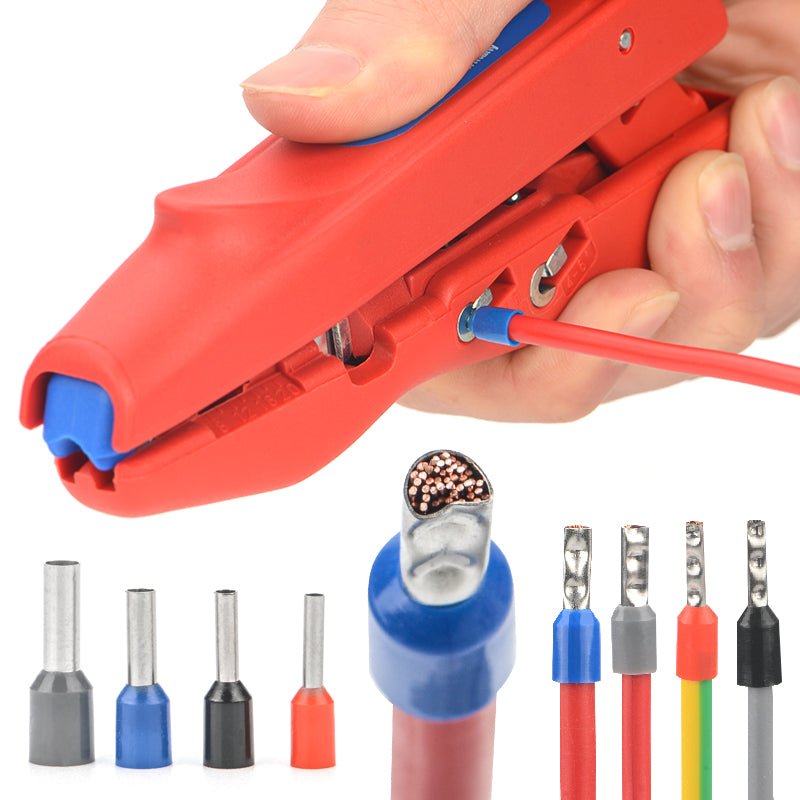

  • Two Ferrule Crimping Ranges: Separate crimping positions cover 0.5–2.5 mm² and 4–6 mm² ferrules. Select the position that matches your conductor and ferrule size.
  • Integrated Side Cutter: An easily accessible side cutter handles wires with cross-sectional areas up to 6 mm².
  • Compact, Durable Construction: A glass-fibre-reinforced polyamide body and knife-steel blades support everyday wire preparation. Overall length is 160 mm and weight is 116 g.

Specifications

Model IWE-300
Functions Automatic insulation stripping, ferrule crimping and wire cutting
Stripping range 0.5–6 mm² (20–10 AWG)
Ferrule crimping ranges 0.5–2.5 mm² and 4–6 mm²
Ferrule specification referenced DIN 46228-2
Side cutter capacity Up to 6 mm² conductor cross-section
Body material Glass-fibre-reinforced polyamide
Blade material Knife steel

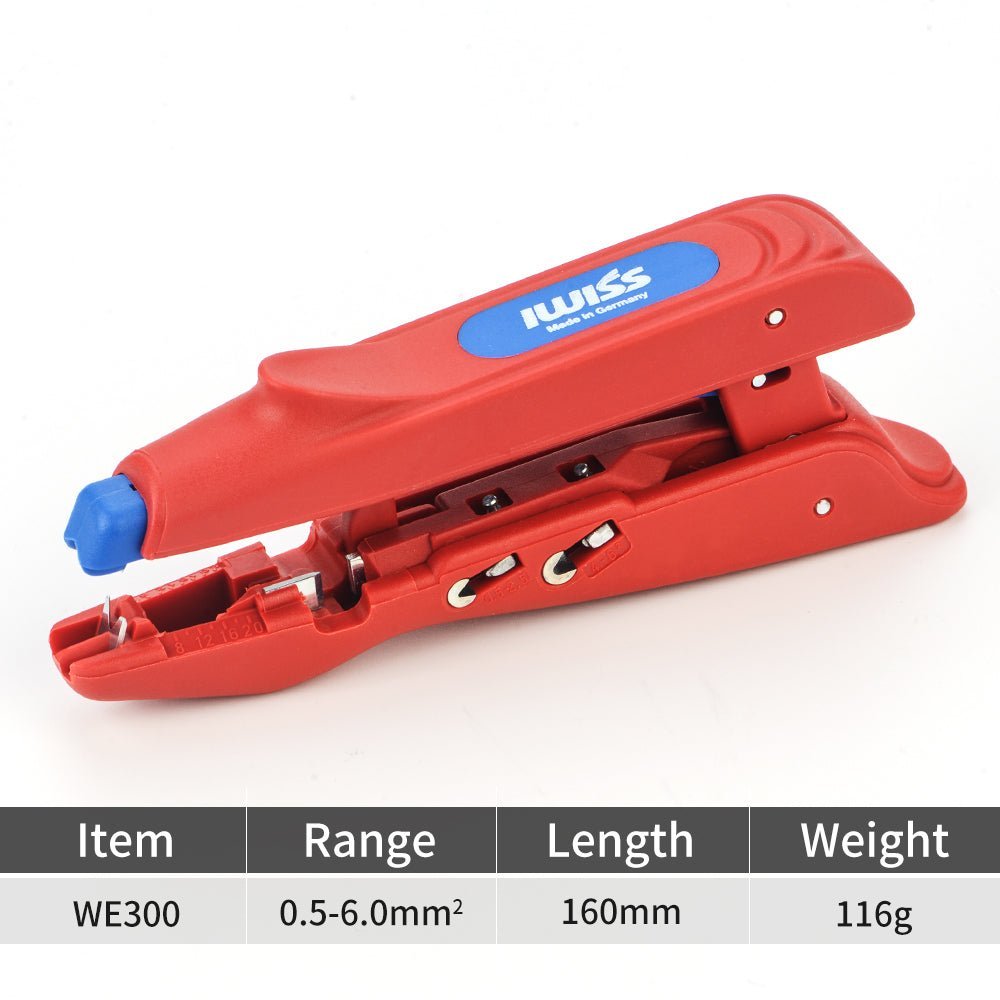

Overall length 160 mm
Weight 116 g

Choose the right size

Match the conductor cross-section to the stripping range, then choose a compatible wire-end ferrule and the corresponding crimping position: 0.5–2.5 mm² or 4–6 mm². The listed mm² values describe conductor cross-sectional area, not cable outside diameter.

Know your tool. Choose with confidence.

Specialists in connection tools

Part of the IWISS family, iCrimp focuses on cable and pipe connection tools, backed by in-house design and manufacturing expertise.

Meet iCrimp

Get help matching your application

Send your terminal or fitting part number, size and a photo. Our team can help you check the tool selection before you order.

Email product support

Clear support after purchase

Find shipping information, return conditions and warranty terms before buying. Keep your order number and tool model for support.

Returns & warranty terms · Shipping details
Design standards & application compatibility

Check the exact model, connection type and applicable standard before ordering. A standard referenced in a product description is not, by itself, evidence of third-party certification. Ask us for model-specific documentation if your project requires it.

Design references are not third-party product certifications. Use the model specifications and the fitting or terminal manufacturer's instructions to confirm compatibility.

How manufacturing supports reliability

IWISS manufacturing capabilities include precision machining, heat treatment, assembly and quality inspection, with dimensional measurement and tensile-testing equipment. The inspection method and acceptance criteria depend on the tool and connection application.

Ask us about the specifications or supporting documentation for your model.

Manufacturing & innovation
Need technical documents?

For instructions, compatibility details or available test documentation, email the model number and your application to sales@iwiss.com.

Product details in pictures

Images may show different kit configurations. Check your selected option and its listed contents before ordering.

IWISS IWE-300 automatic wire stripper and ferrule crimper
IWISS IWE-300 automatic wire stripper and ferrule crimper
IWISS IWE-300 automatic wire stripper and ferrule crimper
IWISS IWE-300 automatic wire stripper and ferrule crimper
