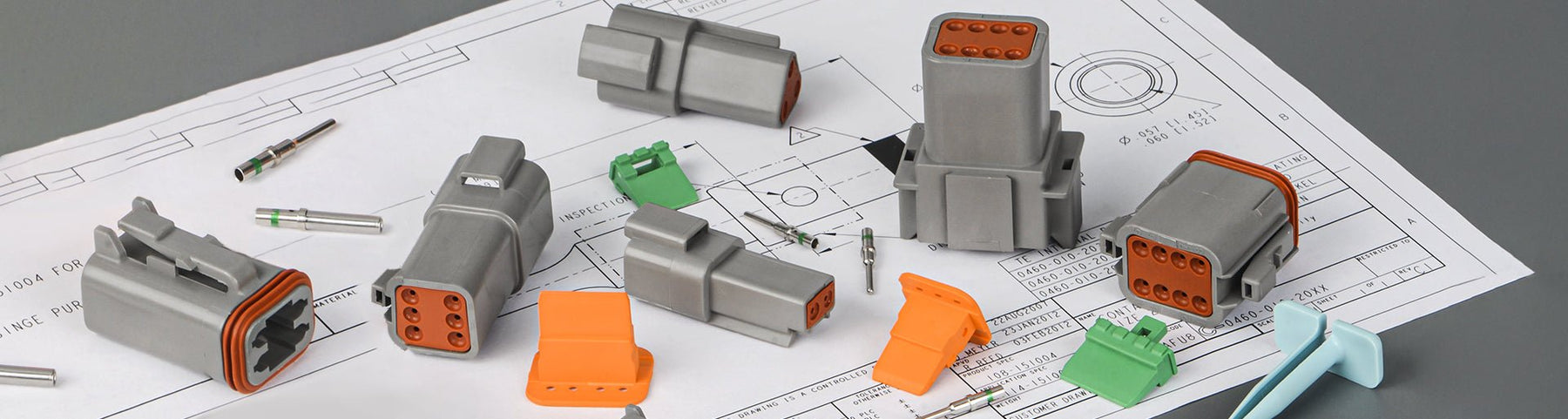

How Can I Repair Deutsch Connectors?

The automotive industry, industrial operations, marine vehicles, and heavy machinery fields predictably use Deutsch connectors because they resist harsh conditions and maintain durability. The constant use of Deutsch connectors against harsh environmental conditions results in eventual damage and wear, which may cause electrical system breakdowns. Repairing a Deutsch connector restores system functionality and prolongs the service life of your wiring components. The following article discusses Deutsch connector repair procedures and introduces the ideal iCrimp tools for uninstallation and installation tasks.

Evaluating connector problems is essential for beginning any repair process on Deutsch elements. The following are the main issues:

Improper electrical signals and complete signal loss can result from broken or corroded pins.

The connector housing suffers damage, which causes water entry as it cracks or warps.

Loose wire terminals and improper crimping will result in temporary connection problems or complete failure.

Terminal detachment becomes problematic when it becomes stuck due to corrosion or accumulated dirt over time.

The connector connects with damaged wiring pathways, including frayed and broken wires.

Examining a Deutsch connector should be the starting point of repair. Section one involves inspecting the connector by removing it to examine any visible damage, dirt, or corrosion buildup. Electrical contact cleaners should be used to remove debris, which improves electrical conductivity. When connector corrosion becomes extensive, it is advisable to replace the connector instead.

The assessment starts with these steps when pins or sockets demonstrate issues.

• Remove the Pins or Sockets

You should use the Pin Extractor and the iCrimp Deutsch terminal removal tool to extract damaged terminals from their sockets.

• Inspect the Wires

Carefully examine wires before cutting to verify their condition, as any damage, such as fraying or tears, requires removing the affected section.

• Crimp a New Terminal

You should use an iCrimp Deutsch Connector Crimper as a premium crimping tool to join a fresh terminal with the wire.

• Reinsert the Terminal

Please insert the new terminal correctly into the connector housing until it clicks securely.

Replacing the connector housing becomes essential when it is cracked, broken, or no longer provides proper sealing.

• Remove the Existing Connector

The removal tool should be used to remove the terminals before pulling them out of the defective housing. An ideal example is the Deutsch Contact Removal Tools.

• Move the Terminals to a New Housing

Position the terminals correctly before moving them to the new housing.

• Test the Connection

After closing the new housing, connect the wires and conduct an electrical connection test.

The effectiveness of electrical performance depends entirely on correct crimping methods. An improper crimp will create loose terminals that could result in intermittent, faulty operation. A powerful crimp requires the following:

• You should use an iCrimp Deutsch Connector Crimper tool as a high-quality option that creates consistent crimps.

• Your process requires selecting the appropriate crimping die that matches your Deutsch terminals.
• Using steady and consistent pressure during the crimping process produces strong electrical connections.

• You must check that all connector parts are correctly assembled before the repairs are completed.
• The housing contains terminals that must be securely locked into position.
• Heat-shrink tubing and protective boots serve as durability enhancement tools.

• A thin layer of dielectric grease should cover the exterior of the seals to stop moisture entry points, but dielectric grease should not be put inside the terminals.

Extensive corrosion and severe damage to the Deutsch connector require complete replacement because this solution delivers the most dependable outcome.

• Disconnect the Connector

The damaged connector requires separation from its connecting piece.

• Cut the Wires

Cut the Wires before re-termination while keeping some wiring length available.

• Strip the wires

A stepwise process requires removing insulation from the wire ends.

• Crimp New Terminal

An iCrimp crimping tool allows users to place new terminals on wire ends. The Deutsch Connector Crimper Kit is an excellent example.

• Install the New Connector

New terminals should be inserted into the new connector housing while ensuring they achieve proper locking.

• Connect the New Connector


The new connector installation requires you to connect it to its target mating connector.

A professional, long-lasting repair requires the use of appropriate connector tools. The following list shows the most useful iCrimp tools designed for Deutsch connector maintenance:

• The iCrimp Deutsch Connector Crimper provides precise and reliable crimps for solid electrical connections.
• Users can easily replace broken or outdated connector elements with the iCrimp Pin Extractor Tool, such as the 11TRT Electrical Wire Terminals Removal Tool Set, which maintains the integrity of the connector housing.
• The iCrimp Wire Stripper & Cutter serves to prepare wires properly before installation with crimping.

Read more: iCrimp Deutsch Connector Crimping Tool Kit Review

The durability of Deutsch connectors depends on the proper use of appropriate techniques and specialized tools to repair damage or restore operational capability. A thorough inspection of each component, followed by cleaning and properly replacing faulty parts, helps increase the longevity of Deutsch connectors. Professional-level precision comes from iCrimp tools during crimping, extraction, and installation tasks. The entire collection of high-quality iCrimp tools and Deutsch connectors is available for browsing to build reliable connections in your electrical system.
