What is Dupont Crimp?

If you work on wiring or electronics projects, you may be familiar with Dupont crimp. Your wiring projects will be improved if you understand Dupont crimping, regardless of your experience level. But what is Dupont crimp, and why is it so significant? This post will explain a Dupont crimp, its operation, and the necessary resources to make dependable connections.

A Dupont crimp is a technique for crimping pins to a wire to connect it to the shell of a multiple-position connector. The crimping process using tools such as the SN-28B Dupont Crimping Tool guarantees that, through mechanical force, the wire deforms around the terminal, making it easy to place the terminal into the connector housing while simultaneously making the connection electric. Crimping aims to create a good and electrically secure connection between the wire and the terminal without solder.

The DuPont connectors, also known as insulation-displacement contacts (IDC), are preferred connectors due to their light, compact, and small size, making them ideal for creating wiring harnesses in robotics, automation, and prototyping. They are electrical connectors that join the circuit boards, sensors, and other small electronic parts.

• Reliable and Safe Connections

Proper crimping ensures robust connections that, if done poorly, will result in loose wires and connections, intermittent connections, or even an inability to connect.

• Durability

A crimped wire endures vibrations and other movements that come with heavy machinery.

• Professional Finish

 Correctly crimped terminals appear neat and professional, thus creating a more professional appearance in your work.

You will require tools and methods to get a successful DuPont crimp. Here's a step-by-step guide:

• Prepare Your Tools

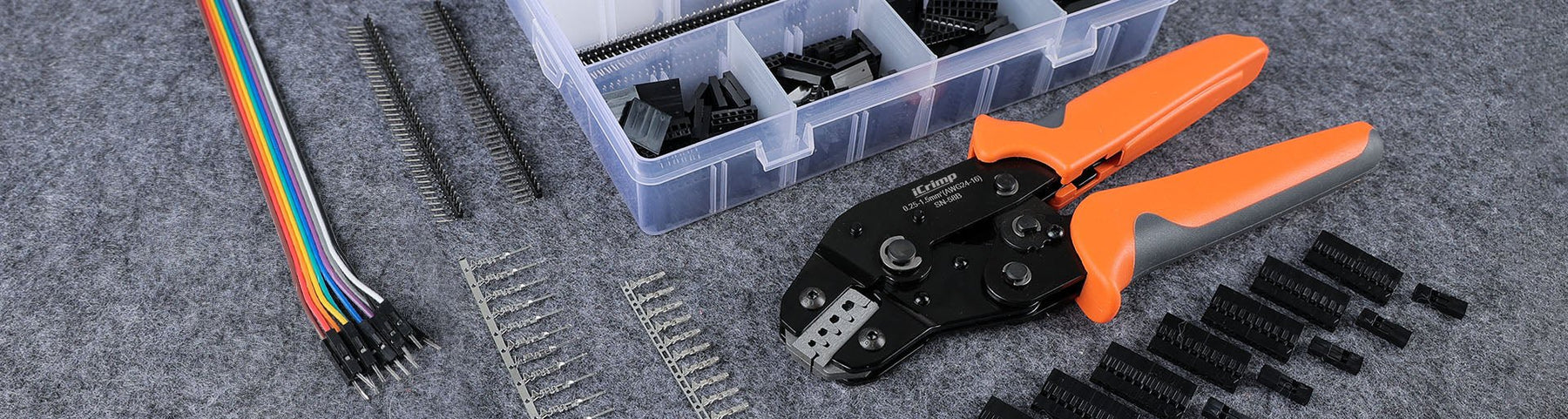

Purchase a high-quality crimping tool made especially for DuPont terminals. These are specifically designed to be accurate enough to fit into small sizes of DuPont pins tightly. A general crimping tool may not give the high level of precision that these delicate connectors require. An ideal example is the iCrimp SN-025 F Crimp D-sub, Dupont Connector Crimp Tool.

• Strip the Wire

Ensure you strip about 1-2mm of the insulation from the end of the wire utilizing the ICP-065 Multi-functional Wire Stripper. Ensure you do not compromise the cross-section of the cables because this will compromise the connection.

• Position the Terminal

Insert the metal terminal into the working part of the crimping tool so that the crimping jaws will clamp the required portions of the wire strands and the insulation.

• Insert the Wire

Place the stripped end to the terminal by the strand, engaging the crimping zone.

• Crimp the Terminal

Twist the crimping tool tightly to lock the terminal. An excellent crimped terminal should keep the wire strands and insulation well-gripped.

• Assemble the Connector

Slide the crimped terminal into the DuPont connector housing part. Toward the end of the installation process, you should be able to hear or feel a clicking sound, indicating that it has locked into place securely.

A Dupont crimping tool is perfect for very accurate work. These tools provide reliable terminal crimping on DuPont connectors' small and delicate terminals.
Features to look for in an excellent Dupont crimping tool include:

• Connector Types

The tool must be usable with the cable connectors.

• Cable Gauges

Ensure the tool allows you to handle all the cable gauges you want to crimp.

• Ergonomics

Ensure Long hours of use do not cause fatigue due to its design, and it affords utmost comfort when held in the hand.

• Flexibility

It is feasible to produce terminal jaws that are interchangeable and, in this way, adjustable for appropriate terminal sizes.

• Durability

The superior material of the tool ensures longevity.

Read more: The Uses of a Hand Crimping Tool?

The need to properly crimp the wire connectors, especially in electronic wiring, is essential, and therefore, one needs to learn how to use the DuPont crimp. Using the right crimping tool helps achieve the appropriate crimping technique to develop excellent and highly functional crimps on your projects. Discover the iCrimp range of professional standard Dupont crimping tools and achieve excellent crimping.
