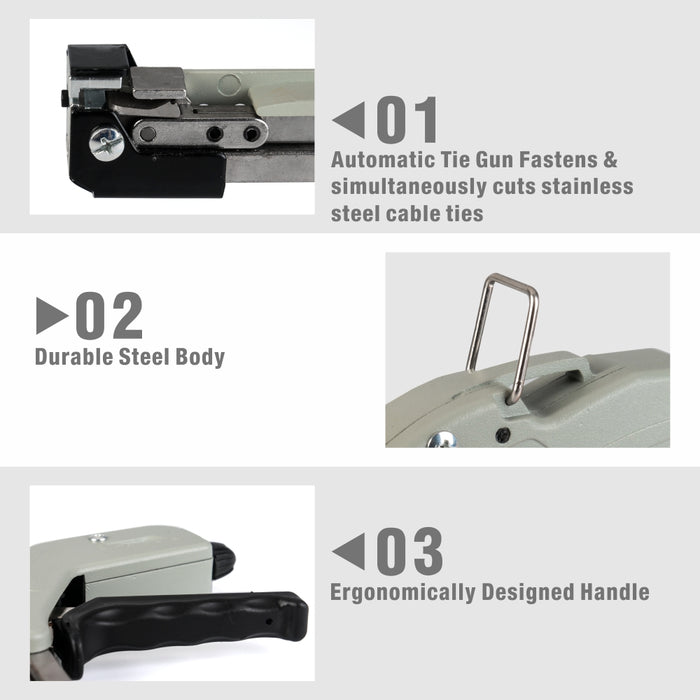

Adjustable tension. Automatic cut-off.
Four tension settings • Automatic cut-off • Hand-powered operation
Simplify repeated installation of compatible stainless steel zip ties. Select a suitable tension setting, tension the tie by hand, and let the mechanism cut the tail when the selected tension is reached. No battery or compressed-air supply is required.
Check your tie size
| Tie material |
Compatible stainless steel cable ties |
| Tie width |
Approximately 0.19–0.31 in. (4.8–7.9 mm) |
| Tie thickness |
0.012 in. (0.3 mm) |
| Cut-off |
Automatic at the selected tension setting |
Check the tie's width, thickness, locking head and coating together. Inch dimensions are approximate conversions.
Set up for repeat installations
Select one of the four tension settings according to the tie manufacturer's application guidance. Check a sample assembly before repeating the setting across the job. Higher tension is not always better for the bundle.
Load the compatible tie and operate the handles as instructed. The tool automatically cuts the excess tail when the selected tension is reached. Inspect the lock, bundle and cut end.
Does automatic cut-off mean an electric tool?
No. LY-600N is hand-powered; its cut-off mechanism operates automatically. It needs no charger, battery or air compressor.
Can I use the 4.6 mm ties from WCT322KIT?
Those ties are below LY-600N's stated 4.8 mm minimum width. Select ties within this model's specified width and thickness and confirm the locking-head fit.
Are the four settings calibrated in newtons?
A calibrated force range is not specified here. Select and verify the setting for your actual tie and bundle; do not infer a 600 N force rating from the model name.
Where it fits your work
For repeated cable and wire-bundle installation in workshops, equipment assembly and maintenance where compatible stainless steel ties are specified.
Choose the tie material and coating for the environment. Follow the application instructions, protect the bundle from over-tightening, and inspect the trimmed end. A cable tie tool does not establish the load rating or approval of the finished assembly.
Compare cable tie and banding tools
| Model |
Choose for |
Important distinction |
| WCT-322 |
Up to 0.47 in. (12 mm); one-handed manual tensioning and cutting |
Manual tensioning and operator-actuated cutting; tool and 100-tie kit options. |
| WCT-319 |
Up to approx. 3/4 in. (19 mm); 0.010–0.020 in. (0.25–0.5 mm) thick |
Side-entry loading; built-in cutter and listed release tool. |
| LY-600N |
0.19–0.31 in. (4.8–7.9 mm) wide; 0.012 in. (0.3 mm) thick |
Four tension settings with automatic cut-off. |
| WCB-324 |
Compatible steel band-and-buckle work, up to 24 mm wide |
Select the band and buckle system; not a universal substitute for a zip-tie gun. |
These are alternative tool choices, not a set you need to purchase together. Check tie thickness, locking-head geometry, coating and the current model instructions as well as width.
Get a compatibility check
Send the tie or band brand and part number, width, thickness, locking-head or buckle photo, and application to product support. Tell us whether you need a manual cutter or preset-tension automatic cut-off.
