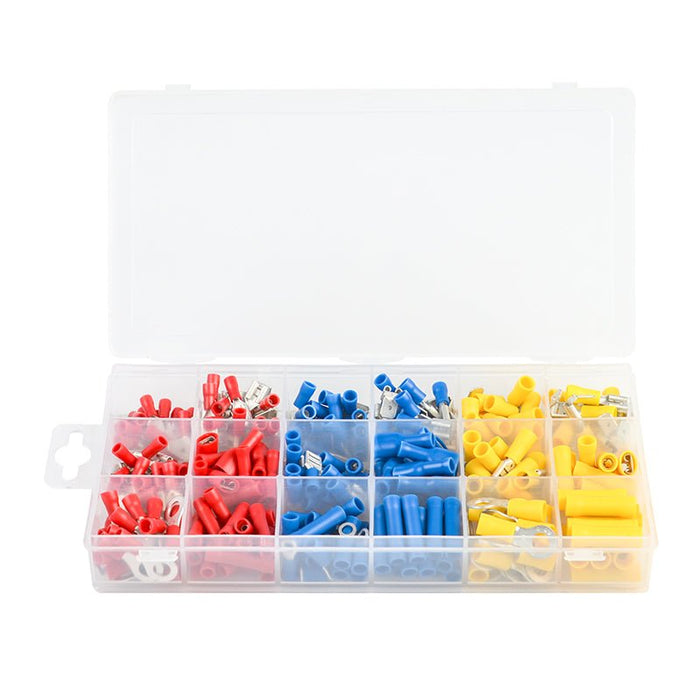

KIT-285: insulated terminals for workshop repairs
285 pieces across 18 listed terminal configurations. Choose a ring terminal for a matching stud, a male/female quick disconnect for the correct mating tab, or a butt splice for a compatible end-to-end wire joint. Piggyback terminals provide a branch connection only where the circuit and mating terminal permit.
| Color group |
Listed wire range |
What else must match |
| Red |
22–16 AWG |
Actual barrel, stud hole or tab dimensions |
| Blue |
16–14 AWG |
Actual barrel, stud hole or tab dimensions |
| Yellow |
12–10 AWG |
Actual barrel, stud hole or tab dimensions |
Color is an identification aid, not a universal standard across all brands. Check the actual terminal marking. Metric and inch stud labels are nominal references; verify fit on the real stud.
Matching crimping tool
IWS-QC with the X30J insulated-terminal die lists 22–10 AWG / 0.5–6 mm² for matching insulated terminals. Use X30J, not the ferrule or solar die. The kit already includes an ICP-4021 stripper for its own 20–10 AWG range; 22 AWG preparation needs a suitable smaller-wire stripper.
Installation
- Isolate power and select the terminal by conductor size, material and connection dimensions.
- Strip to the terminal specification, preserving all strands. Insert fully so the conductor sits in the metal barrel.
- Align the insulated-terminal die over the specified barrel area and complete the ratchet cycle.
- Check retention and inspect for split insulation, loose strands or a distorted mating end. Follow the terminal's acceptance criteria.
- Seat the ring or disconnect correctly, support the wire and verify the circuit before energizing.
Is this a waterproof heat-shrink kit?
No heat-shrink sleeve or waterproof rating is established for these standard insulated terminals. For wet locations, specify a suitable sealed termination system rather than assuming colored insulation seals the joint. No building-wiring approval is implied.
View the listed assortment quantities
- 20pcs (M6)1/4"Rings ---AWG22-16---Red
- 20pcs Female Spades --- AWG22-16 --- Red
- 20pcs Male Spades --- AWG22-16 --- Red
- 15pcs Butt Splices--- AWG22-16 --- Red
- 15pcs Female Spades--- AWG22-16 --- Red
- 15pcs Piggyback--- AWG22-16 --- Red
- 20pcs(M4)#8 Rings --- AWG16-14 --- Blue
- 20pcs Female Spades --- AWG16-14 --- Blue
- 20pcs Male Spades --- AWG16-14--- Blue
- 15pcs Butt Splices--- AWG16-14 --- Blue
- 15pcs Female Spades--- AWG16-14 --- Blue
- 15pcs Piggyback--- AWG16-14--- Blue
- 15pcs(M6)1/4"Rings --- AWG12-10 --- Yellow
- 15pcs Female Spades --- AWG12-10 --- Yellow
- 15pcs Male Spades --- AWG12-10--- Yellow
- 10pcs Butt Splices--- AWG12-10--- Yellow
- 10pcs Female Spades--- AWG12-10--- Yellow
- 10pcs Piggyback--- AWG12-10--- Yellow
Read the insulated-terminal installation and inspection guide.
For a fit check, email sales@iwiss.com with the contact or lug part number, wire gauge, insulation diameter, mating connector and clear photos. For repeat workshop orders, also include quantities and your validated tool setting.
