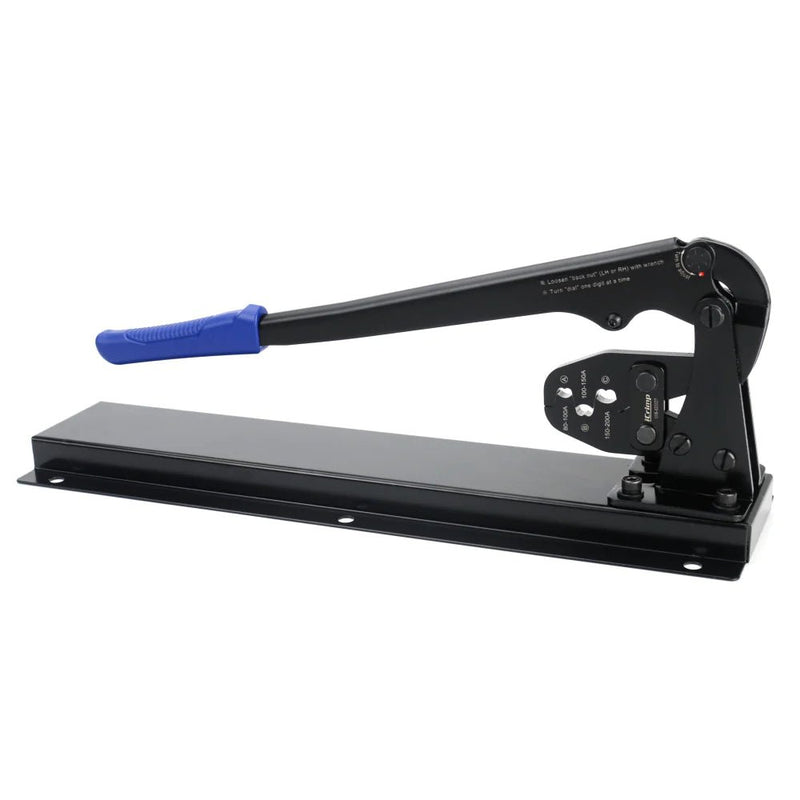

IWS-8200DT

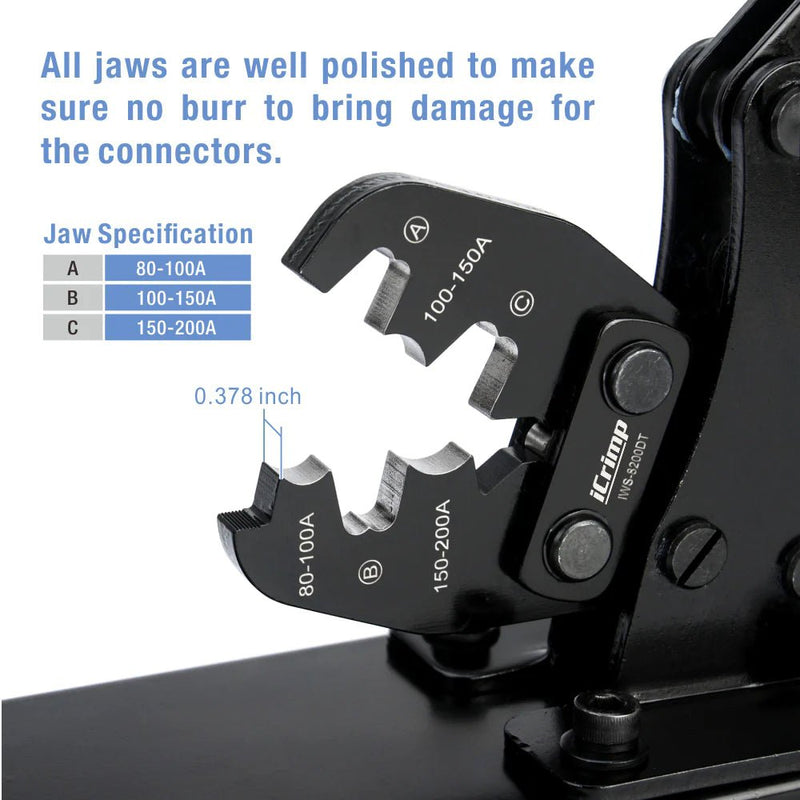

All jaws are well polished to make sure no burr to bring damage for the connectors.

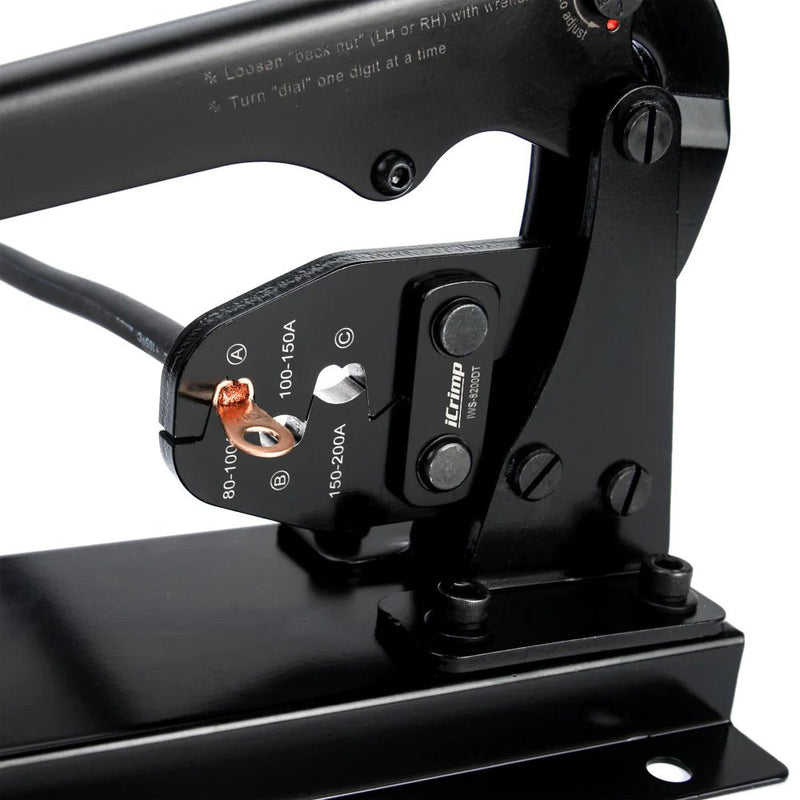

IWS-8200DT Battery Lugs and Open Barrel Connectors Crimping Tool

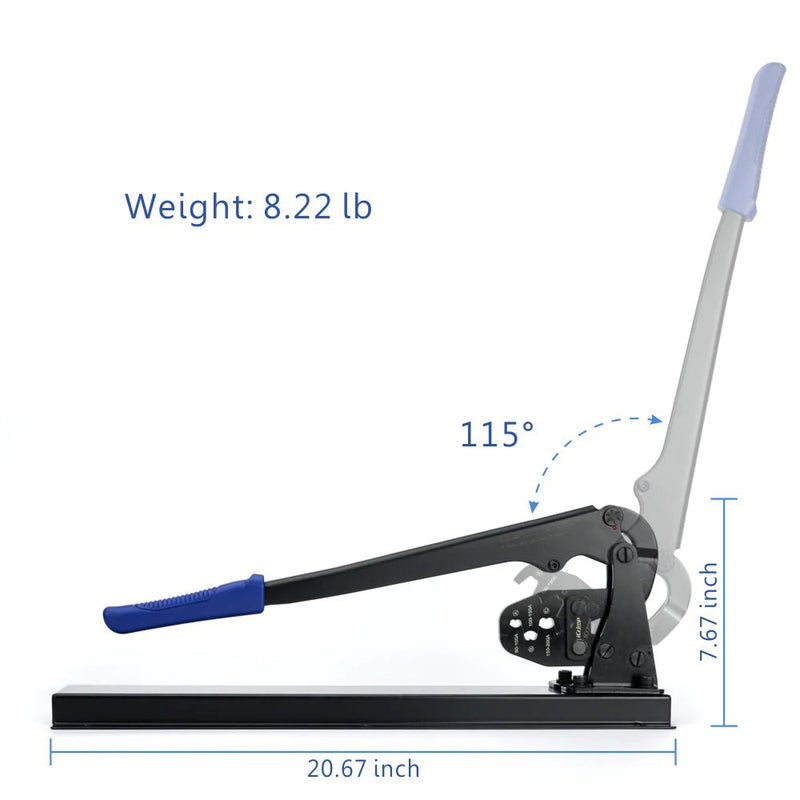

Extendable handle

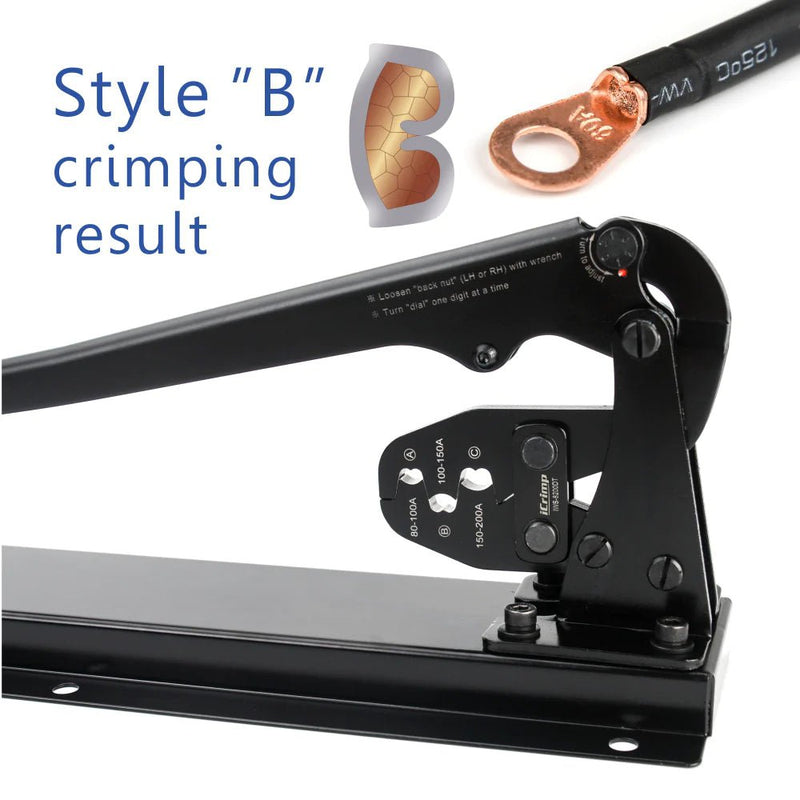

Style " B" crimping result

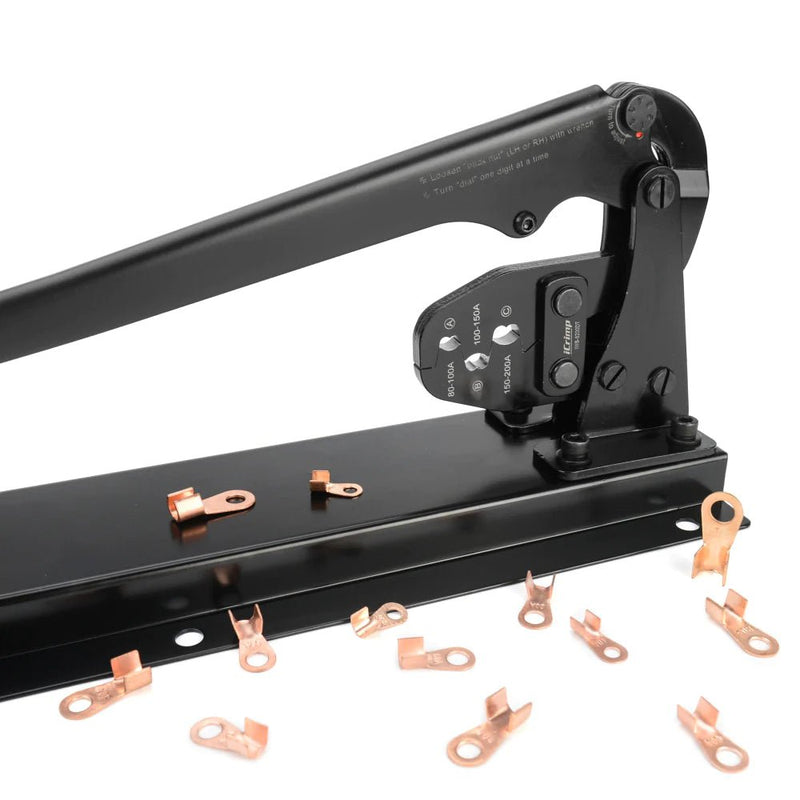

Battery Lugs and Open Barrel Connectors Crimping Tools-Desk Type
IWS-8200DT
All jaws are well polished to make sure no burr to bring damage for the connectors.
IWS-8200DT Battery Lugs and Open Barrel Connectors Crimping Tool
Extendable handle
Style " B" crimping result
Battery Lugs and Open Barrel Connectors Crimping Tools-Desk Type
1 / 6

IWS-8200DT Battery Lug and Open Barrel Crimper for 80A-200A

$149.99
$149.99 - $159.99
$149.99
$120.99
$120.99 - $130.99
$120.99
Selected configuration IWS-8200DT

Check the model, size and included items. Different options may be tools, kits or replacement parts.

US warehouse fulfillment is available for eligible items. Check shipping options for your destination; dispatch time is not delivery time.

Shipping & delivery before you buy

Add your tools to the cart, then estimate shipping with your country, state and ZIP/postal code. Available delivery options depend on the items and destination. Need a tool for a scheduled job? Email us with the model and ZIP code to check dispatch and delivery timing before ordering.

Shipping details

Need help choosing the right tool?Returns & warranty terms

APPLICATION · CONFIGURATION · TECHNICAL DETAILS

IWS-8200DT

Selected model / option
IWS-8200DT
SKU
IWS-8200DT(80A-200A)
Package type
Selected configuration

Application and technical information

Compare the open-barrel bench-tool series

Choose these models for compatible open-barrel battery terminals. Match the terminal drawing and crimp cavity before selecting the tool; a terminal's current label is not enough.

Before you choose: The A values identify legacy terminal groups. They are not a tool electrical rating or a guarantee of the finished cable assembly's current capacity. Share the terminal part number, barrel dimensions and conductor size if you need help choosing.

Ask for help choosing the right tool

  • 「PRECISE」 The Jaw is processed with Wire EDM Cutting
  • 「DURABLE」The head part is made of one piece high-grade special tool steel
  • 「LABOUR-SAVING」Long handle for extra mechanical advantage
  • 「ERGONOMIC」Comfortable grip with anti-slip design for easy operation
  • 「PROFESSIONAL」 Specially designed for battery lugs and open barrel connectors with capacity of 80A-100A/100A-150A/150A-200A

Match the terminal, not just the wire gauge

Check the terminal part number, barrel construction, conductor size, insulation support and required crimp geometry. Solid contacts, stamped contacts, ferrules and cable lugs use different tooling. Gauge alone does not establish compatibility.

All jaws are well polished to make sure no burr to bring damage for the connectors.
IWS-8200DT Battery Lugs and Open Barrel Connectors Crimping Tool
Extendable handle
Style " B" crimping result
Battery Lugs and Open Barrel Connectors Crimping Tools-Desk Type

Preparation and inspection

Identify the terminal and wire; strip to the specified length; position in the matching tooling; complete the operating cycle; inspect and test the first sample before continuing.

Check this configuration before ordering

Send the selected model, component part number, dimensions and a clear application photo to sales@iwiss.com. For a kit, check the supplied-item list; tools or consumables in application images are not automatically included.
